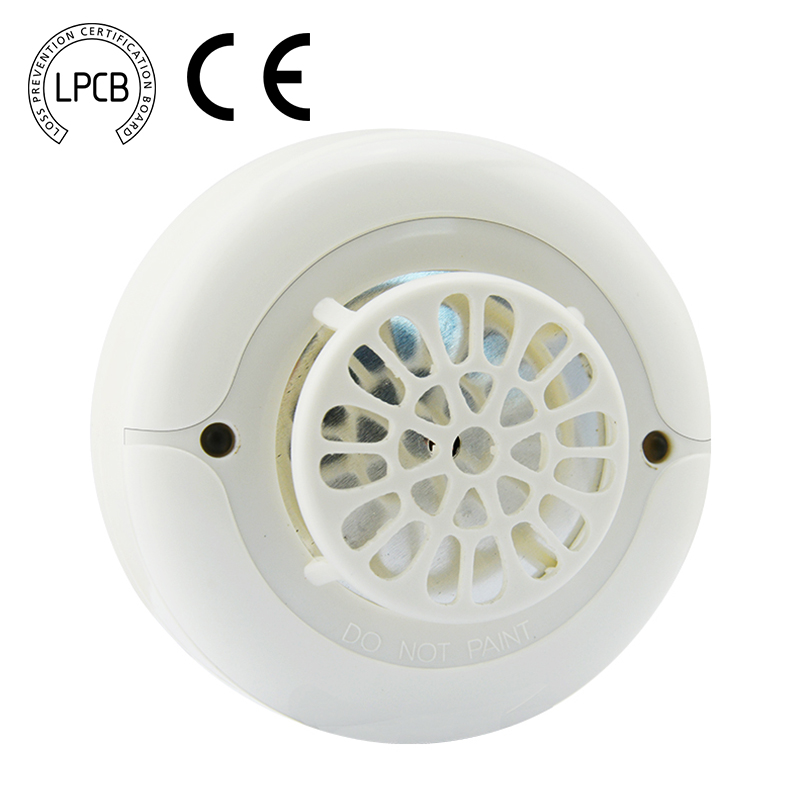

AW-D102 Asenware conventional Heat Detector
Introduction:
Asenware AW-D102 heat detector is an intelligent rate of rise heat detector, which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (devices) can be given specific ID, which allows the panel to continuously monitor specific detector location (point). It reduces the maintenance cost and makes it easier to maintain the system.
Features
• Addressable-analog communication
• Rate-of-rise feature activates when ambient temperature increases at the rate of 7.1 ℃ /5S
• Low Standby current
• Two-wire connection
• Two LEDs (RED), blinks in normal condition and becomes stationary during fire alarm condition.
• Remote test from Panel
Spacing
Spacing of detector must be followed by standard EN 54 or NFPA 72. N FPA 72
suggests for low airflow application spacing of 9.1 m for ceiling height up to 3.15 m can
be applicable. However, please follow the specific codes and local codes for specific
applications.
| Model No. | AW-D102 |
| Operating Voltage Range | 18V-28VDC |
| Alarm Current | ≤3mA |
| Work Current | ≤2.5mA |
| Temperature | -10℃ to 50℃ |
| Fix Temperature Range | 57℃ A2R |
| Rate of Rise Alarm | 7.1℃/5S A2R |
| Standard Number Ref | EN 54-5:2000 |
| Terminals Connection | No 6: Remote Indicator+ |
| No 3: Remote Indicator- | |
| No 2: Loop IN+ | |
| No 5: Loop IN- |
Installation
AW-D102 heat detector use a separate base to simplify the installation and maintenance. For proper installation, terminal connections to be followed as shown below.
*All dimensions are in mm
