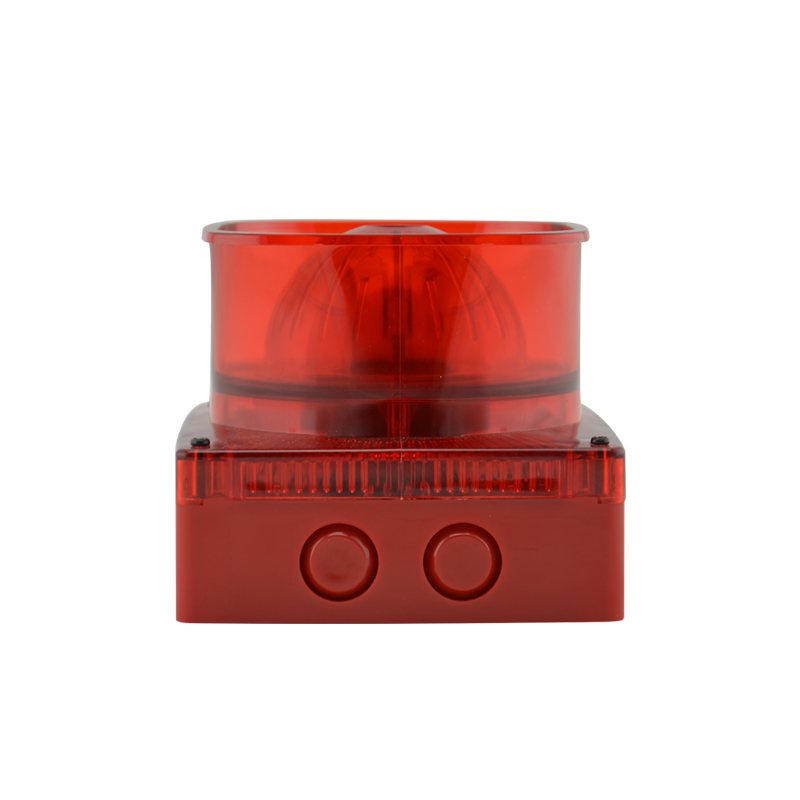

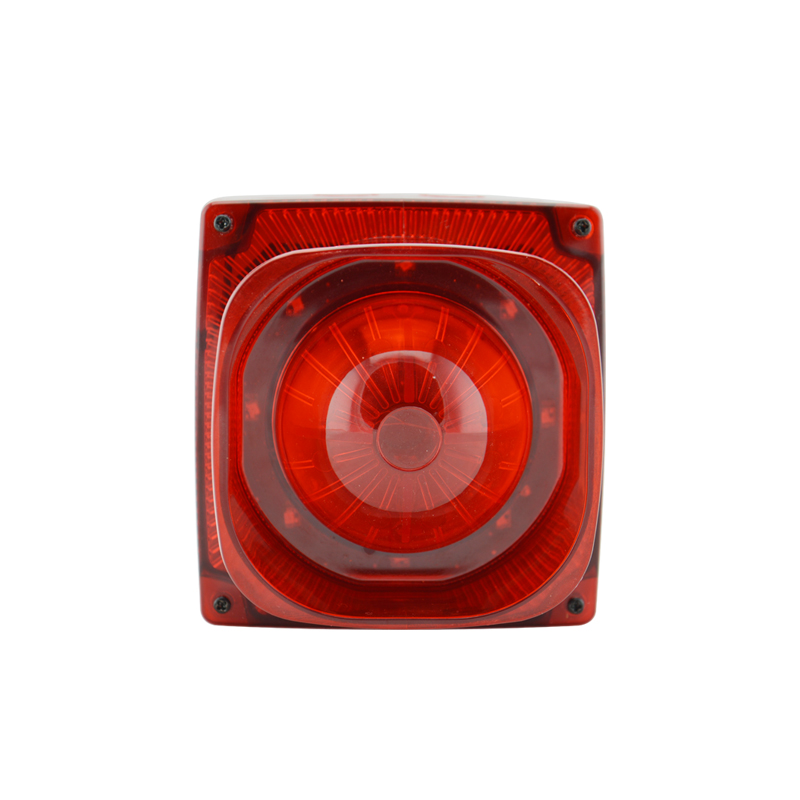

AW-CSS2166-4 Asenware DC24V conventional fire alarm electric strobe sirender
Introduction:
The AW-CSS2166-4 is a conventional type sound and light alarm, sound and light for short. It is an automatic fire alarm system output devices, mainly through the alarm will sound and flash signal, suggesting that people fire.
By DC 24V electrical signal to the conventional type of sound and light alarms powered, it sounds an alarm buzzer and flashing lights flash issue.
In the event of a fire can be an effective warning sound and flash to notify people to evacuate.
1. Merit:
1) Equipment operation stable and reliable;
2) Equipment easy to install, wiring;
3) Equipment has also issued two kinds of sound and flash an alarm signal, even people with disabilities can be a timely response to evacuate;
4) When the device is different emergency situations, a variety of alarm options;
5) Sound pressure level can adjustable.
2. Defect:
1) Automatic fire alarm system can not identify the specific location of the sound and light alarm device alarm.
| Operating Voltage | DC12V~30V |
| Working Current | < 100mA |
| Flash Period | 120 times/min |
| Temperature Range | -10℃ ~ +55℃ |
| Humidity Range | 0%~95%RH |
| Sound Pressure Level | 95-115dB (Adjustable) |
| Type of Sound Alarm | 8 kinds |
| Size | 122*128*100mm |
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
alarm siren 24v,siren with strobe light,strobe siren,fire alarm strobe siren
