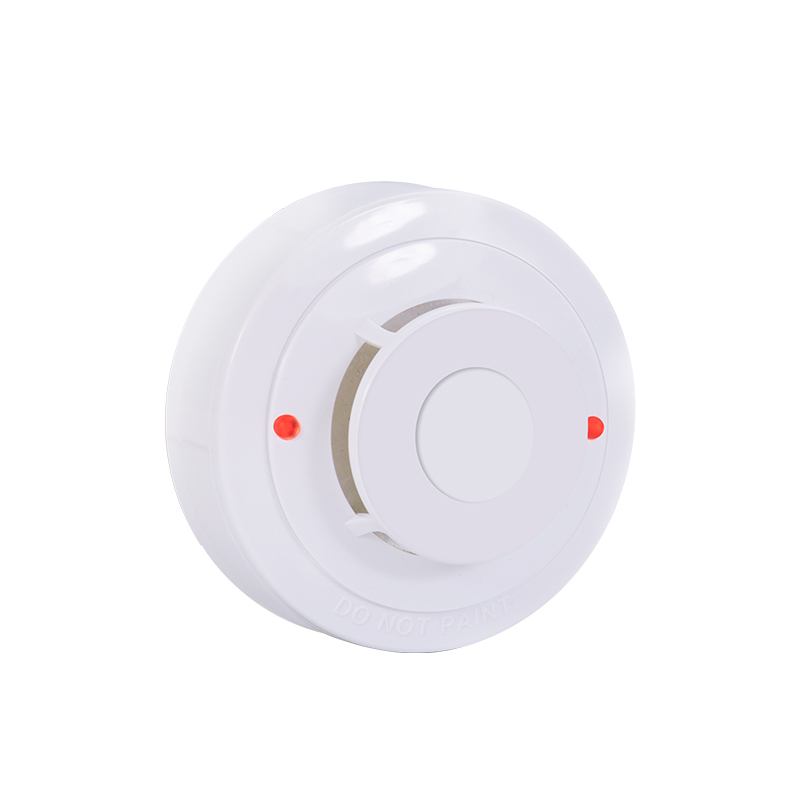

AW-CTD321 Asenware 10 years factory price conventional fixed temperature heat detector
Introduction:
AW-CTD321 is photo-electronic detector using a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.
1. Strong Adaptability For Circumstance
2. SMT Design, High Stability
3. 40-60vdc Wide Voltage Operating Range
4. Low Standby Current
5. Power Supply Non-Polarized input
6. Twin Led For 360 Visual
7. Flashing Led Power Indicator
8. Remote Led Indicator Output(2-Wire)
9. Metal Shield. Anti-Electromagnetic Interference
| Operating Voltage Range | 9 to 28 VDC Volts Non-polarized |
| Standby Current | ≤120μA@24VDC |
| Maximum Alarm Current (LED on) | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
| Operating Humidity Range | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Smoke Alarm Sensitivity | 1.06±.26%FT |
| Fix temperature Alarm | 57°C (135°F) A1R |
| Rate of rise Alarm | 7.1°C/5S A1R |
| Height | 48.2 mm installed in Base |
| Diameter | 99.45 mm |
price for heat sensor,conventional heat detector,fixed temperature heat detector,heat detector fire alarmsprice for heat sensor,conventional heat detector,fixed temperature
Our company
Asenware, manufacturer of fire alarm and fire suppression system since 2005. Our headquarter is in London, UK, with factory Shenzhen, China
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
Product range:
1. Addressable fire alarm system(FP100 series,2189,2100 series)
2. Conventional fire alarm system(2166 series)
3. FM200 gas fire suppression system
4. Emergency light system
5. Fire pump system
6. Fire hose and fire hose reel cabinet
Show room:
Certificate:
Why choose Asenware?
1.We have more than 10 years experiences in this field.
2.Our professional engineers are always engaging in developing new technology.
3.Meet customer demand is our consistent aim.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
If you have any problems, feel free to contact us at any time!
