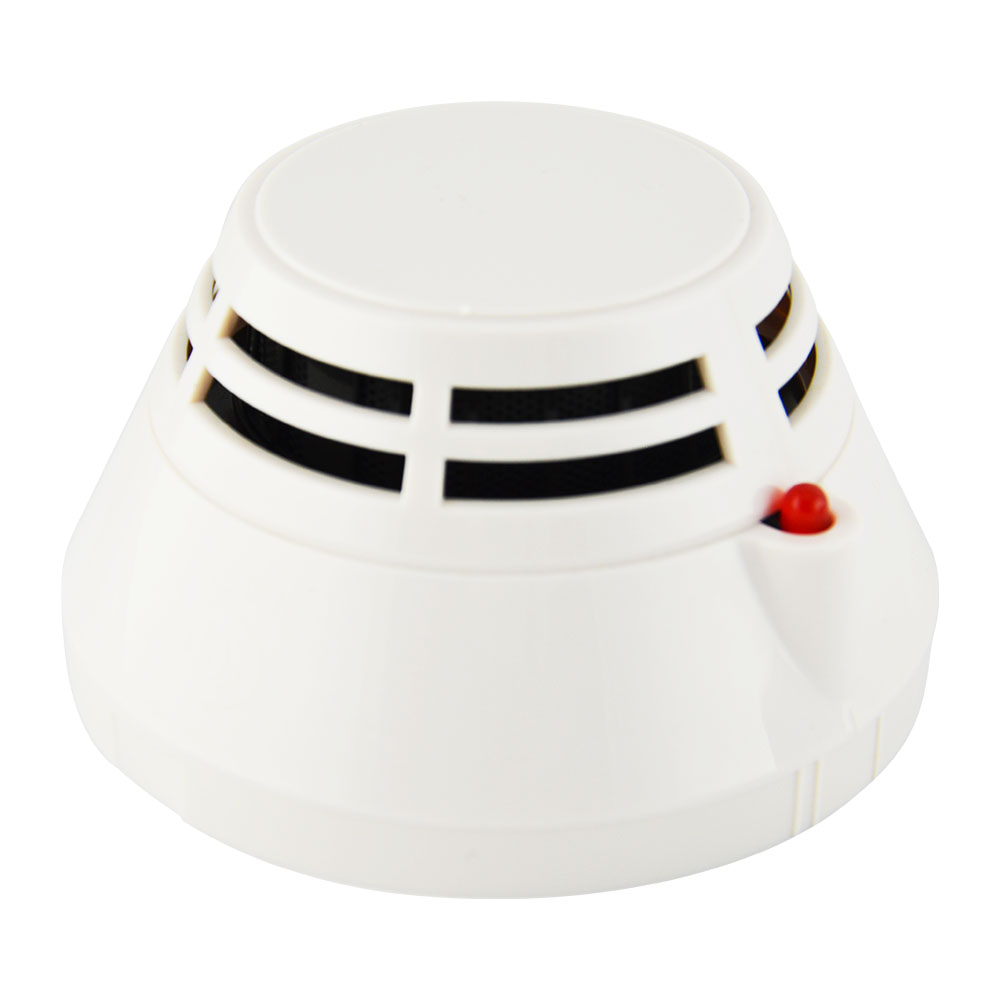

Advantage procucts Addressable Smoke Detector Factory Prices for Fire Alarm System
Specification:
| Executive standard | GB4716-2005 |
| Operating voltage | 24V (pulse modulation) |
| Operating current | £¼300uA (monitoring status) or £¼1.5mA (alarm status) |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status |
| Weight | about 70g |
| External dimensions | diameter: 100mm, height: 55mm (with the base) |
| Wiring method | non-polarity two-bus system (L1, L2) |
| Operating environment | Indoor, temperature: -10℃~+50℃; relative humidity: ≤95% (40℃ ±2℃, without condensation) |
| Coding mode | It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection |
| Installation height | ≤12m |
| Protection area | about 60m2. For details, see related provisions in GB50116-98 Code for Design of Automatic Fire Alarm System |
| Matched host machine | fire alarm control panel (such as AW-AFP2188) |
Product pictures:
About us:
Show room:
Certificate:
Why choose Asenware?
1.We have more than 10 years experiences in this field.
2.Our professional engineers are always engaging in developing new technology.
3.Meet customer demand is our consistent aim.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
If you have any problems, feel free to contact us at any time!
