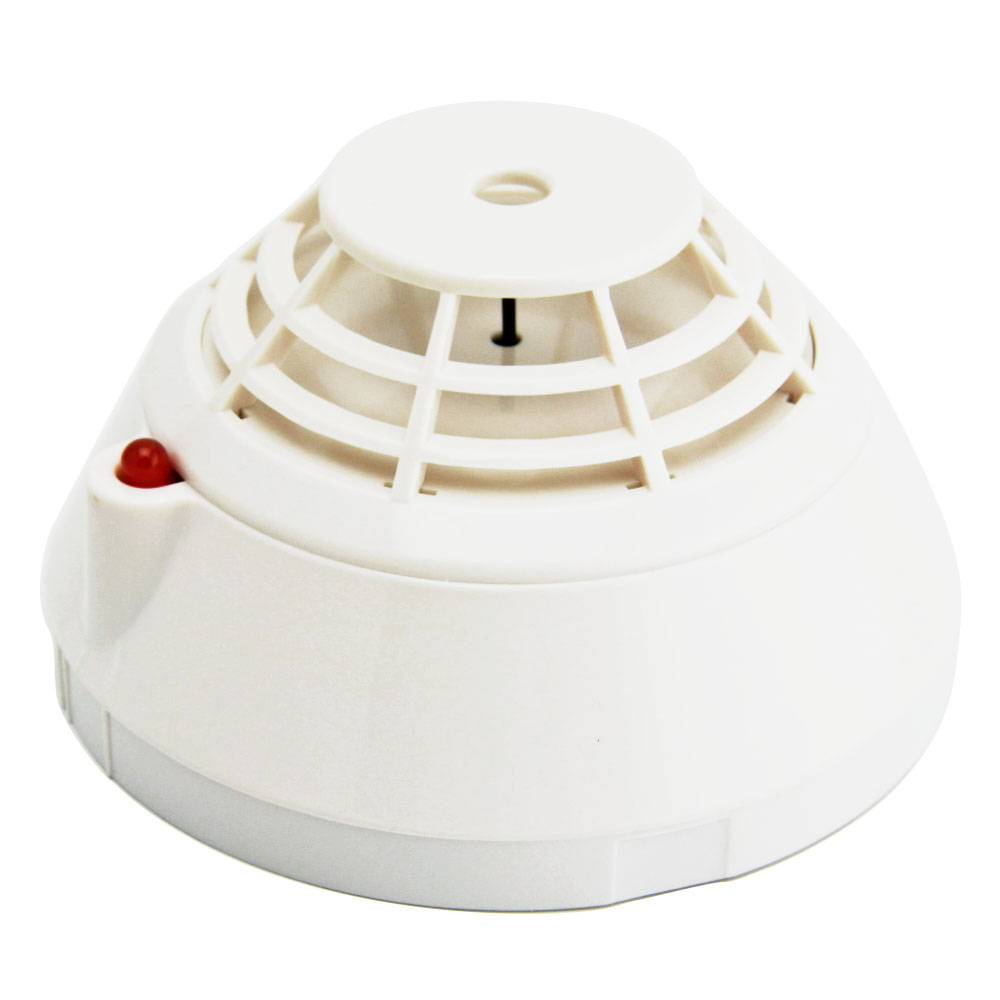

Asenware Non-Polarity Housing Temperature Sensor , Easy To Maintain Addressable Panel Heat Detector
Description of Addressable heat Detector
Asenware Non-Polarity Housing Temperature Sensor , Easy To Maintain Addressable Panel Heat Detector
1. Addressable heat detector is a mated of the 9000 series fire alarm control panel.
2. Non-polarity, two-bus connection that ensures convenient installation and maintenance.
3. It can also receive and execute the control commands given by a fire alarm control panel.
4. The heat detector realize real-time acquisition of th situ smoke concentration data and sends back the data to fire alarm control panel.
5. Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
Parameters of Addressable heat Detector
Asenware Non-Polarity Housing Temperature Sensor , Easy To Maintain Addressable Panel Heat Detector
| Name | Addressable Heat Detector |
| Mode No. | AW-ATD2188 |
| Operating voltage | 24V (pulse modulation) |
| Wiring method | non-polarity two-bus system (L1, L2) |
| Operating current | < 300uA (monitoring status) / < 1.5mA (alarm status) |
| Operating environment | Indoor, temperature: -10°C~+55°C; relative humidity: ≤95% (40°C±2°C, without condensation) |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status |
| Protection area | 60 Square meters |
| Installation | height: ≤ 8m |
| Weight(with the base) | about 47g |
addressable heat detector display:
addressable heat detector display:
1. We offer OM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. Addressable Heat Detector one year warranty and technical maintenance.
1. Certificate: CE ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. All-round technical support: Yes
4. Warranty: One year
Please contact me freely to get more information about Addressable Heat Detector.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
