Asenware Hot Sale Addressable Optical Fire Alarm Heat Detector From China Factory
Description of Addressable heat Detector
Asenware Hot Sale Addressable Optical Fire Alarm Heat Detector From China Factory
1. Addressable heat detector is a mated of the 9000 series fire alarm control panel.
2. Non-polarity, two-bus connection that ensures convenient installation and maintenance.
3. It can also receive and execute the control commands given by a fire alarm control panel.
4. The heat detector realize real-time acquisition of th situ smoke concentration data and sends back the data to fire alarm control panel.
5. Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently.
Parameters of Addressable heat Detector
Asenware Hot Sale Addressable Optical Fire Alarm Heat Detector From China Factory
| Name | Addressable Heat Detector |
| Mode No. | AW-ATD2188 |
| Operating voltage | 24V (pulse modulation) |
| Wiring method | non-polarity two-bus system (L1, L2) |
| Operating current | < 300uA (monitoring status) / < 1.5mA (alarm status) |
| Operating environment | Indoor, temperature: -10°C~+55°C; relative humidity: ≤95% (40°C±2°C, without condensation) |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status |
| Protection area | 60 Square meters |
| Installation | height: ≤ 8m |
| Weight(with the base) | about 47g |

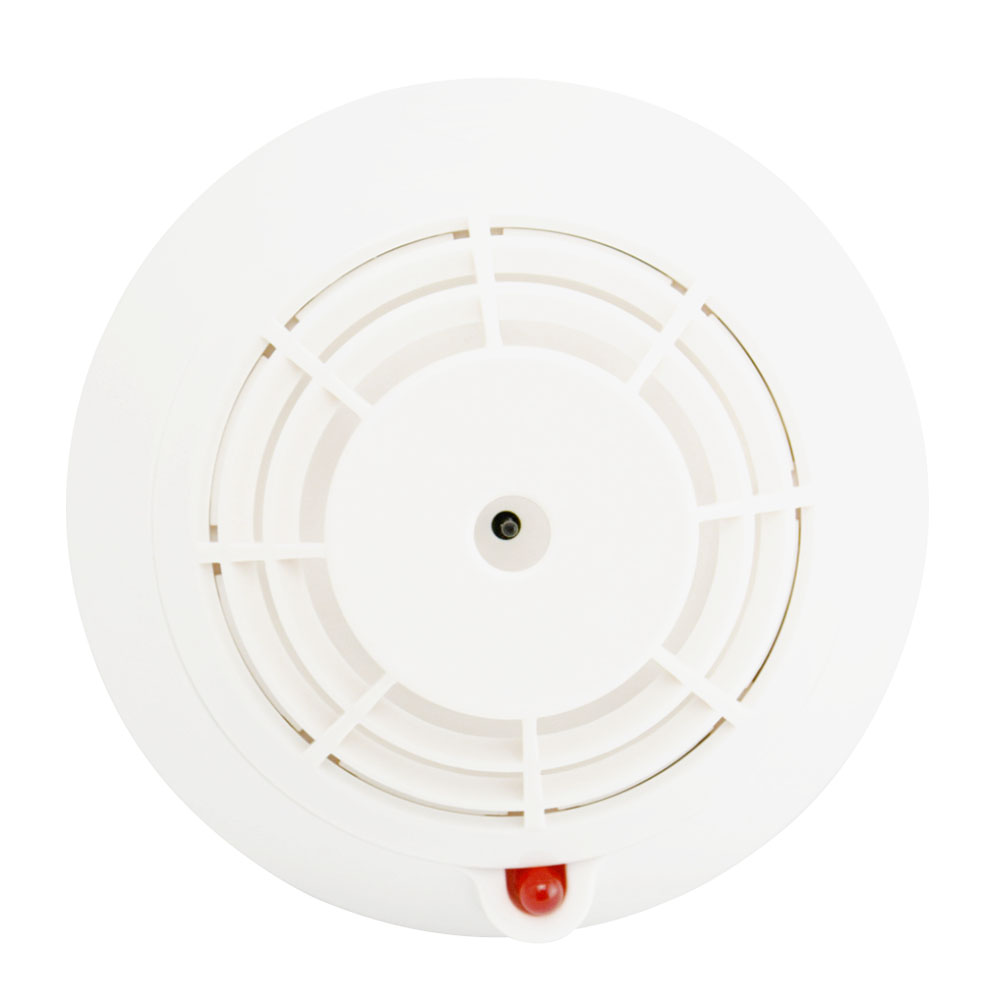

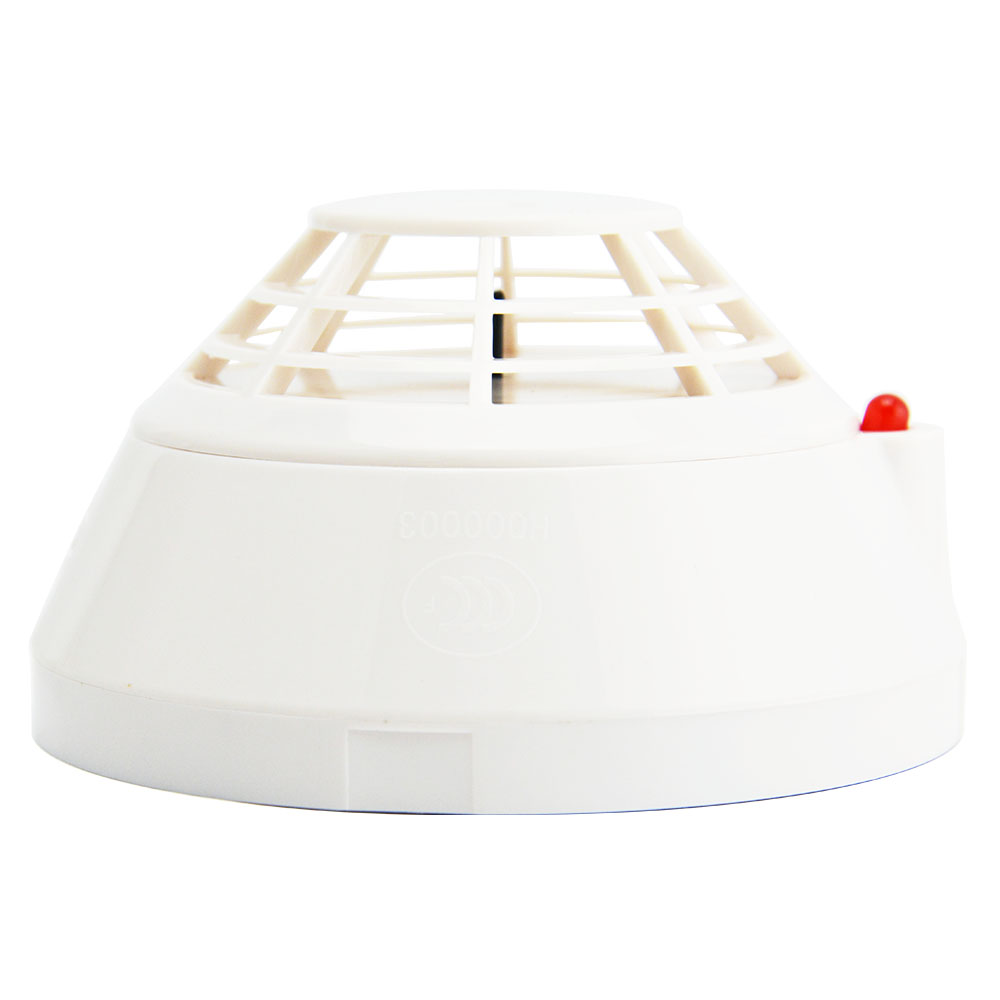

addressable heat detector display:
addressable heat detector display:
1. We offer OM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. Addressable Heat Detector one year warranty and technical maintenance.
1. Certificate: CE ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. All-round technical support: Yes
4. Warranty: One year
Please contact me freely to get more information about Addressable Heat Detector.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
addressable heat detector show room:
addressable photoelectric smoke detector show room:
addressable heat detector show room:
