Introduction:

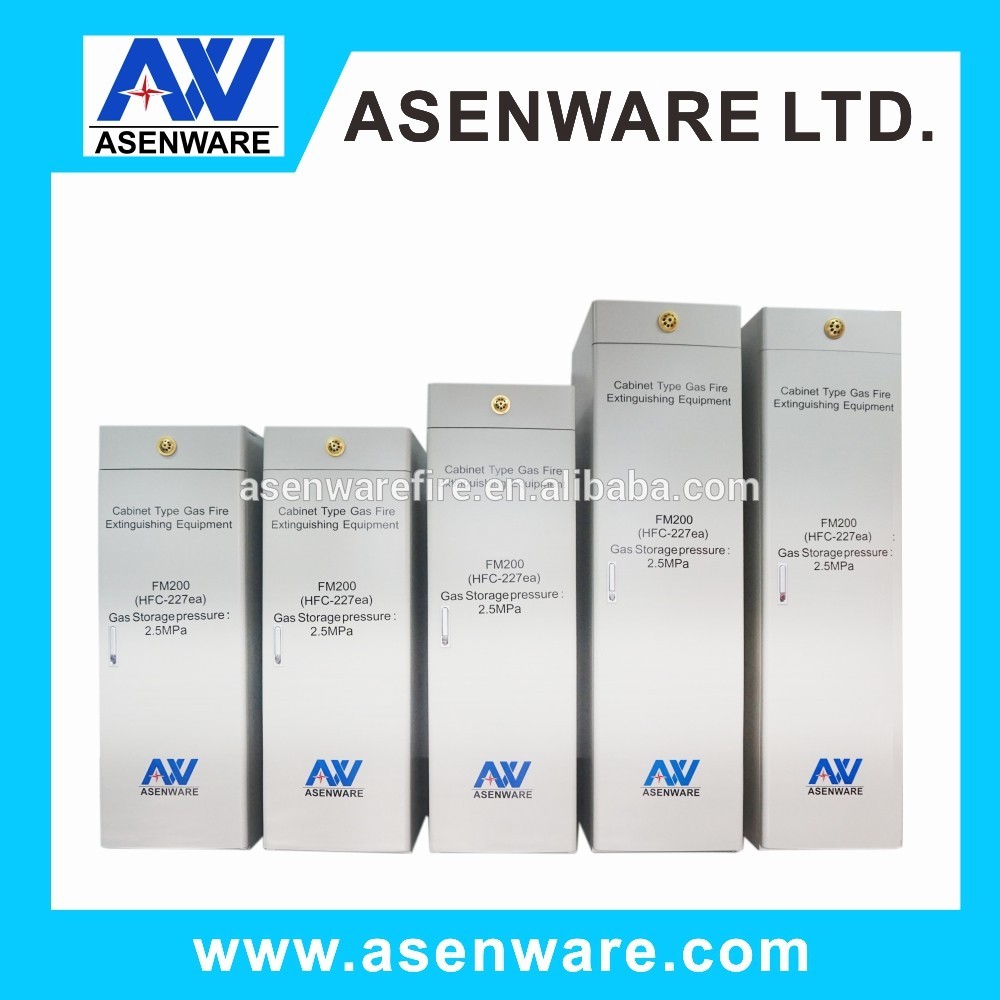

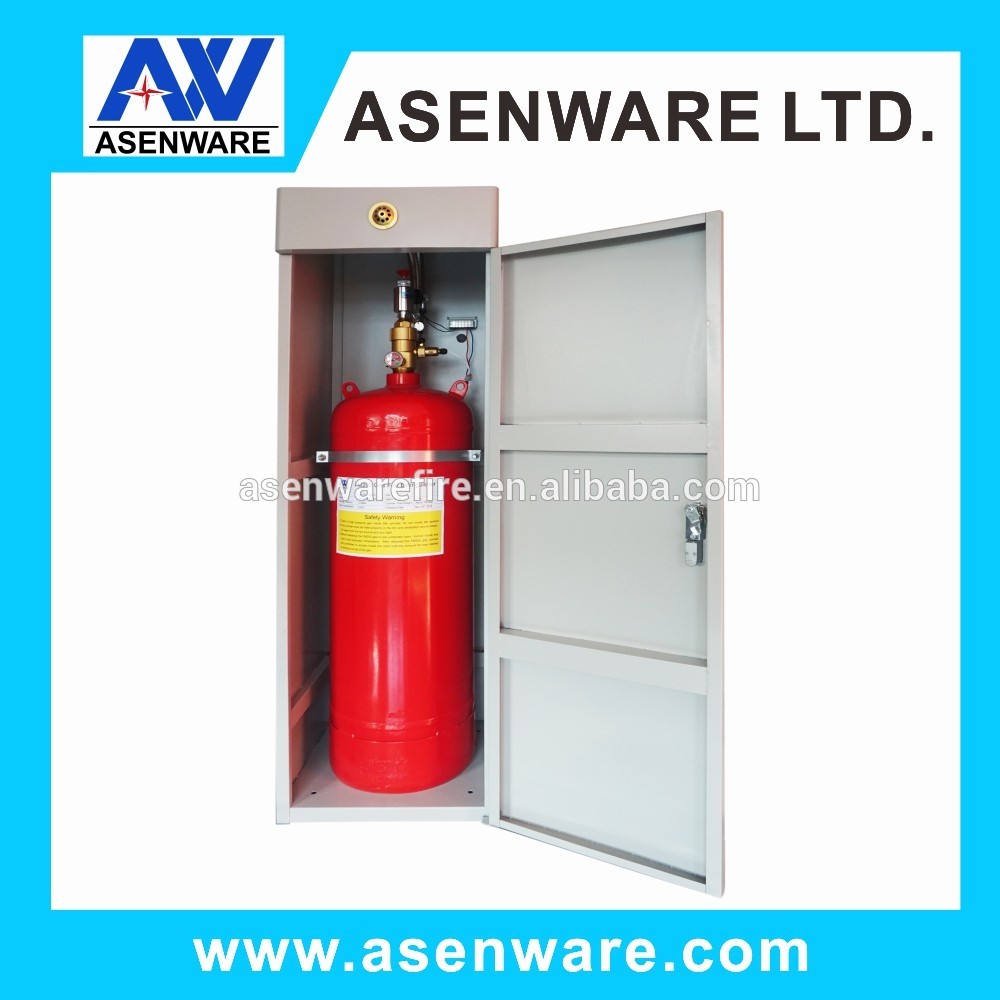

Heptafluoropropane(HFC-227ea) automatic fire extinguishing system is a gas fire, automatic control and fire detection is one of the modern intelligent automatic fire extinguishing system , in line with DBJ15-23-1999 " Heptafluoropropane(HFC-227ea) clean gas fire extinguishing system design" and ISO14520-9 "Gas extinguishing systems- physical properties and system design. System requirements and product standards, this advanced system design, reliable performance, simple operation , environmental protection and good characteristics.
The technical parameters:
1.Filling pressure: 2.5 MPa
2. Extinguishing agent release time: ≤10s
3. Extinguishing agent filling density: ≤950kg/m3
4. Valve drive air pressure: 2.5±1.0 MPa(20℃)
5. System Power Supply: AC220V/DC24V/1A
6. System working environment temperature: -10℃～55℃
7. System protection limits area: the largest single area 800m²; volume : the largest single area 3600m ³
8. System start-up mode: Automatic system startup, electrical manual, mechanical emergency manual
9. Storage bottle volume : 40L,70L,90L,120L,150L,180L
AW-GEC 2159 automatic gas extinguisher control panel is a combined fire alarm control panel and extinguishing system and has 4 detection zones,any or all of which are capable of contributing to the extinguishant release decision.
Technical parameter:
Main supply: 90 to 270VAC, 50Hz/60Hz
Main supply fuse: 3 Amp ( F3AL250V)
Battery charge voltage: 27.6VDC nominal
Detection circuit: 4 zones
Automatic gas extinguisher control panel accessories:
1. Manual Release Station
The Manual release is connected with Fire fighting panel. There are three buttons on the station, one is START button, and another one is STOP button. When the START button is pressed, you can press RESTORE button to restore the start button.
2. Maintenance Switch
This MAINTENANCE panel is a key switch, which disconnects actuation circuits in the system to prevent accidental discharge during maintenance operations.
3. Gas Release Warning Signage
Operating Voltage: DC24V/AC24V Non-polarized
Working Current: ≤70mA @ 24VDC
Flash Period: 1.2-1.5 Sec.
1. We offer OEM/ODM service.
2. Professional and experienced R&D center can design solution and offer technical support.
3. Quality assurance and reliability.
4. One year warranty and technical maintenance.
