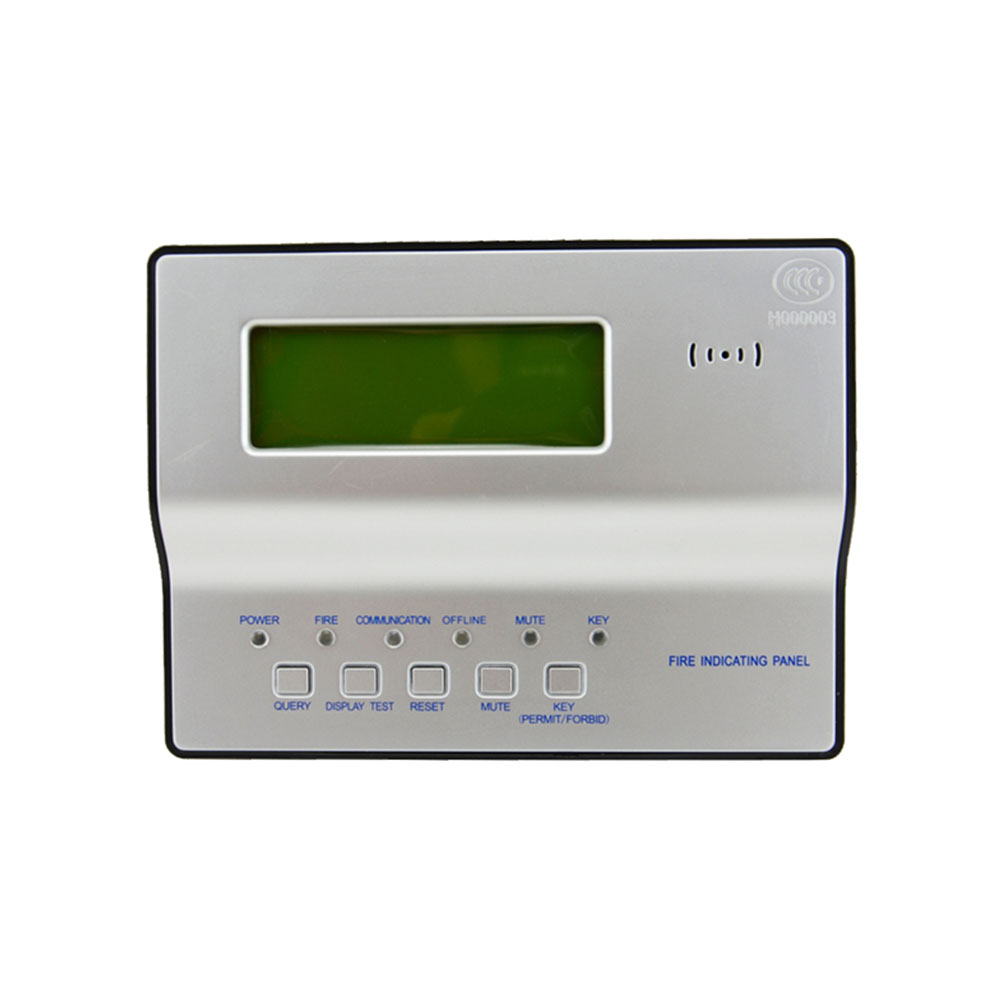

AW-RP2188 Asenware addressable fire display repeater panel
Introduction:
The AW-RP2188 fire display repeater panel (display panel for short) is a kind of microprocessor controlled fire display panel developed by our company. Each display panel is connected to a fire alarm control panel produced by our company via a special RS-485 interface to process and display the data sent from the fire alarm control panel. Each floor of a building may have a display panel installed. When there is a fire alarm on the floor where the display panel is installed, or the neighboring floor above or below it, the display panel will give a horn/strobe alarm and display the floor No., the room No., and some other position information of the fire alarm.
1. Each display panel is connected with a fire alarm control panel via a RS-485 bus. At most 99 display panels may be connected with each RS-485 bus.
2. The display panels can display fire alarm messages or feedback messages only rather than fault messages, action messages or other messages.
3. A fire alarm control panel may be used for setting the display area of a display panel. The set display panel can display the fire alarm messages of the designated area (floor display) only. Note: See the User"s Manual of the fire alarm control panel for the setting method.
4. It can replace a AW- RP2188 fire display repeater panel in a 2100/2189 system.
| Executive standard | General Technical Conditions for Fire Indicating Panels (GB17429-1998) |
| Display capacity | Each display panel can display the fire alarm messages of floors -10~90 and at most 99 fire alarm messages or feedback messages. |
| Wiring system | Four-wire system, power lines (+24V, GND) and RS485 signal lines (485A, 485B) |
| Temperature | -10℃~+50℃ |
| Relative humidity | ≤95% 40 ℃, non-condensing) |
| Installation Height | ≤8m |
| Power supply | DC 24V ±20 % |
| Overall power consumption | <3W |
