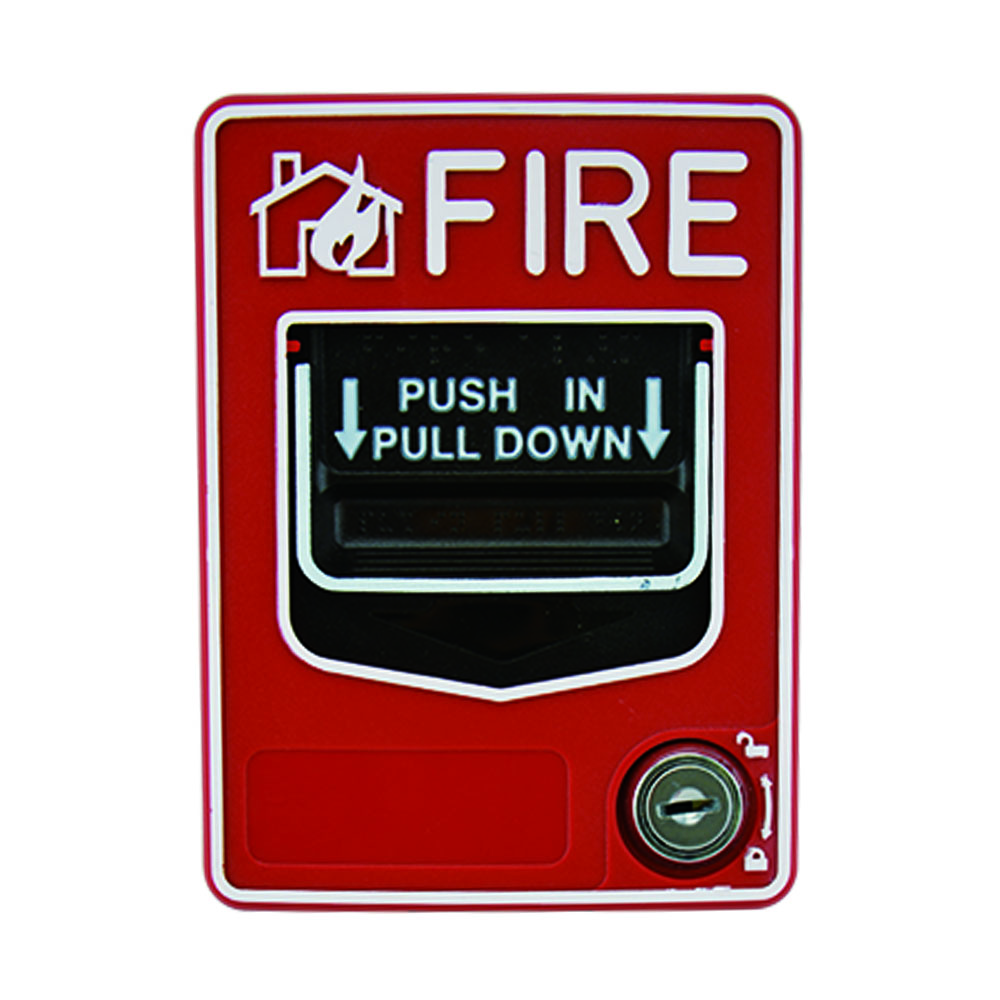

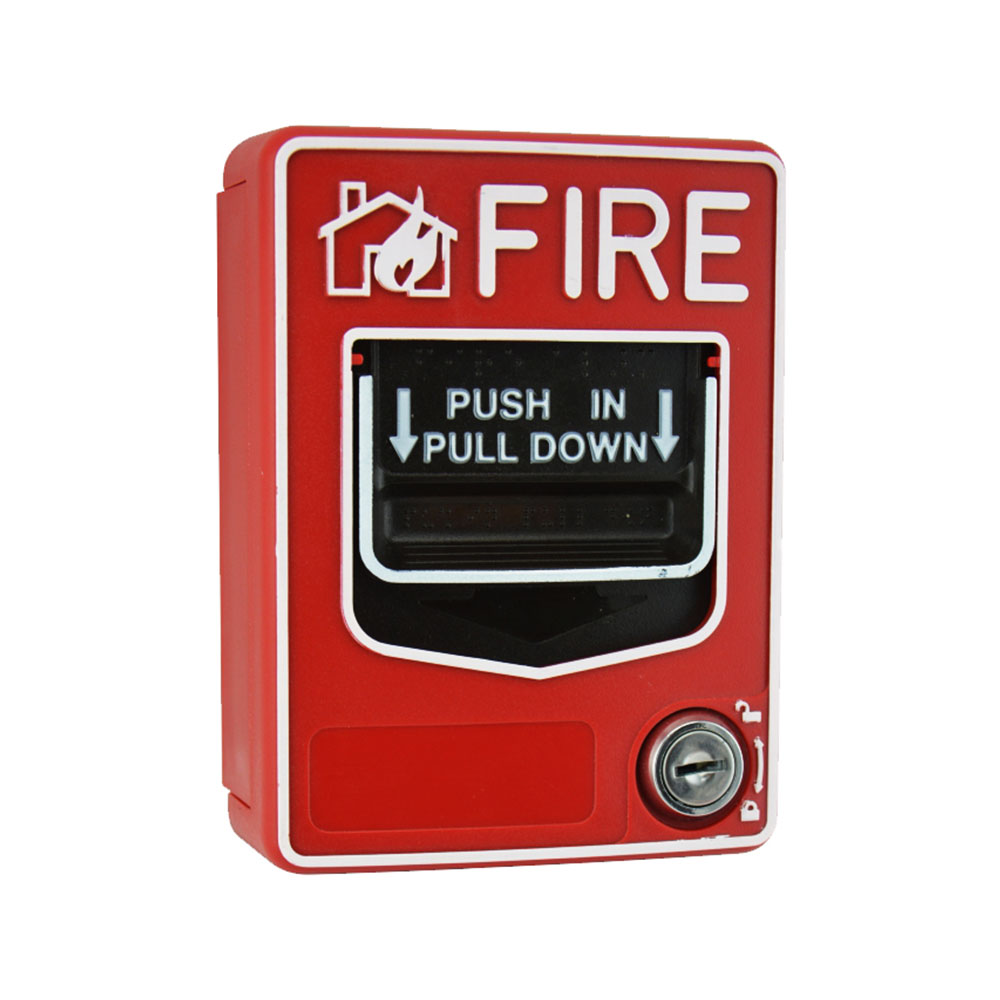

AW-CMC2166-6 Asenware Conventional Manual pull station Call Point
Introduction:
The AW-CMC2166-6 conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by its PUSH IN/PULL DOWN handle latches. The CMC2166-6 conventional manual call point is only used with conventional fire alarm control panel, it is forbidden to be used to other system.
1. This Manual call points are high reliability and easy installation.
2. Available for flush or surface mounting
3. DC24V or AC220V powered, two wire connection
4. Suitable for most conventional fire alarm system
| Operating Voltage | 9~28VDC Volts |
| Alarm Current | 45mA @ 24 VDC |
| Contactor Resistance | 5.6K |
| Temperature | -10℃ to 50℃ |
| Humidity | 10% to 93%, Non-Condensation |
| Weight | Net Weight 220g |
