Shenzhen Asenware Test & Control Technology Co., Ltd.

break glass panic button fire alarm

Component Description : Material and Rating

Switch & Contacts :

Silver Contacts rated at:
250 VAC 8.0 amp
50 VDC Resistive 3.0 amp
30 VDC Resistive 8.0 amp
30 VDC Inductive 3.0 amp

Max. Contact Resistance :100 milliohms
Wire Terminals :Single conductor per Terminal Maximum 2.5mm2 each

Surface Mount Box :Modified Polyphenylene Oxide (Noryl SE 100) - Red
Call Point Base :Modified Polyphenylene Oxide (Noryl SE 100) - Red

Call Point Lid :Modified Polyphenylene Oxide (Noryl SE 100)- Red
Call Point Interior :Modified Polyphenylene Oxide (Noryl SE 100)- Black

Cover Fixing Screw :Zinc Plated Steel locating in Brass M3 Full

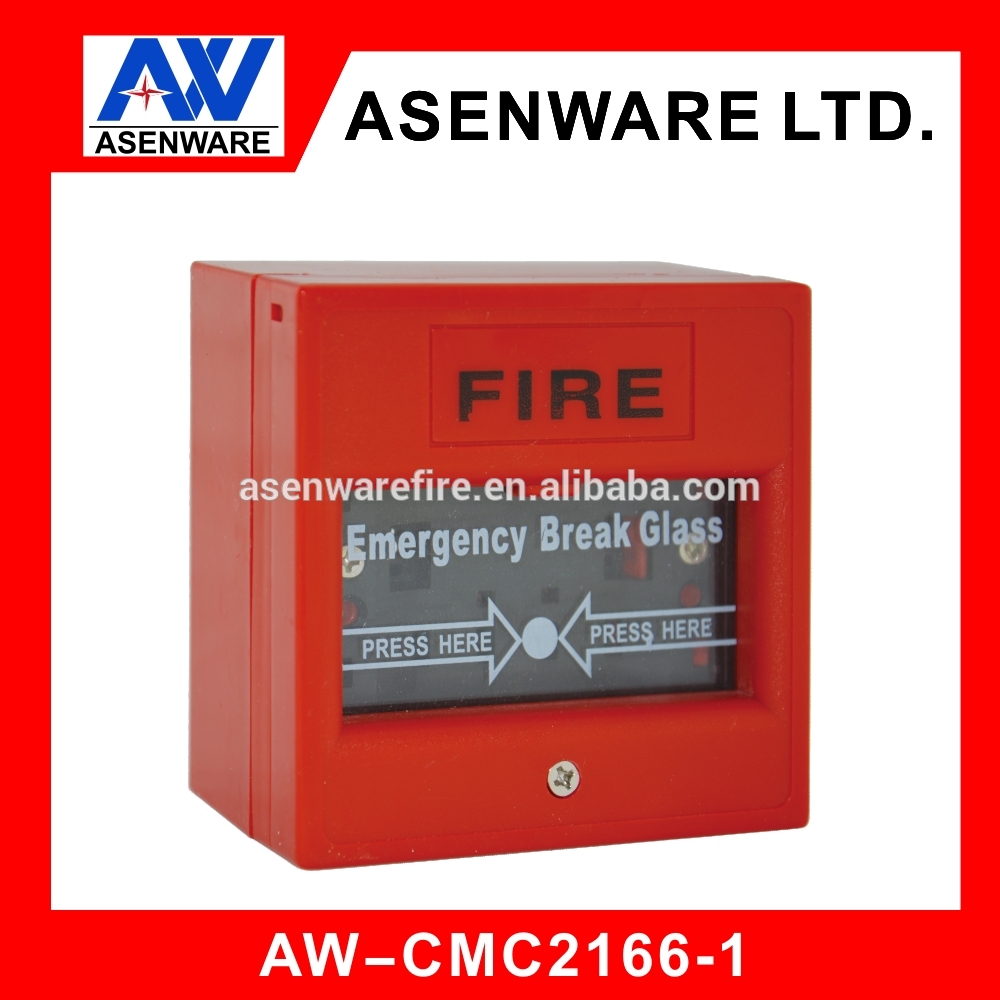

1: AW-CMC2166-1 Manual Break Glass Call Points are for indoor use and are part of a full range of plastic call points            and accessories.

2:In all 2166 series Call Points, the switch is held off by the ‘edge’ of the glass. When the glass is broken, the switch is       released. This eliminates the risk of false alarms caused by glasses breaking on their own and glass fragments     preventing the switch from moving to the operated position. A protective plastic coating on the glass prevents operator injury and inhibits the release of glass fragments. A hammer is not required.

3: The AW-CMC2166-1 Call Point mounts quickly; it comes complete with its own red plastic surface mount back box.
Testing is easy! When the special test key provided with every station is inserted, the glass drops and tests the switch.
Waterproof, special environment models, and various colors are also available. Consult International Sales for specific details.
