fm200 Heptafluoropropane(HFC-227ea) automatic fire extinguisher system is a gas fire, automatic control and fire detection is one of the modern intelligent automatic fire extinguishing system .
In line with DBJ15-23-1999 " Heptafluoropropane(HFC-227ea) clean gas fire extinguisher system design" and ISO14520-9 "Gas extinguisher systems- physical properties and system design.
System requirements and product standards, this advanced system design, reliable performance, simple operation, environmental protection and good characteristics.
structure and parameters of system :

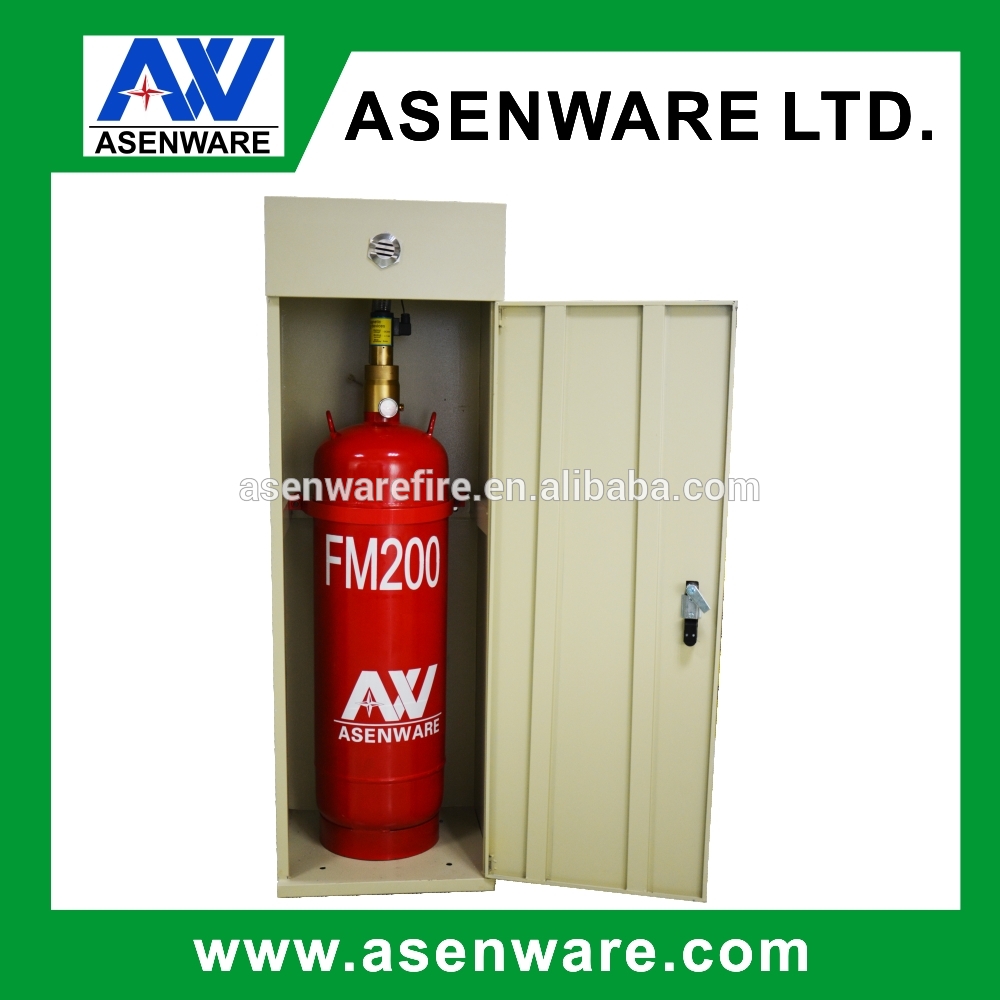

fm200 fire extinguisher agent cylinders :

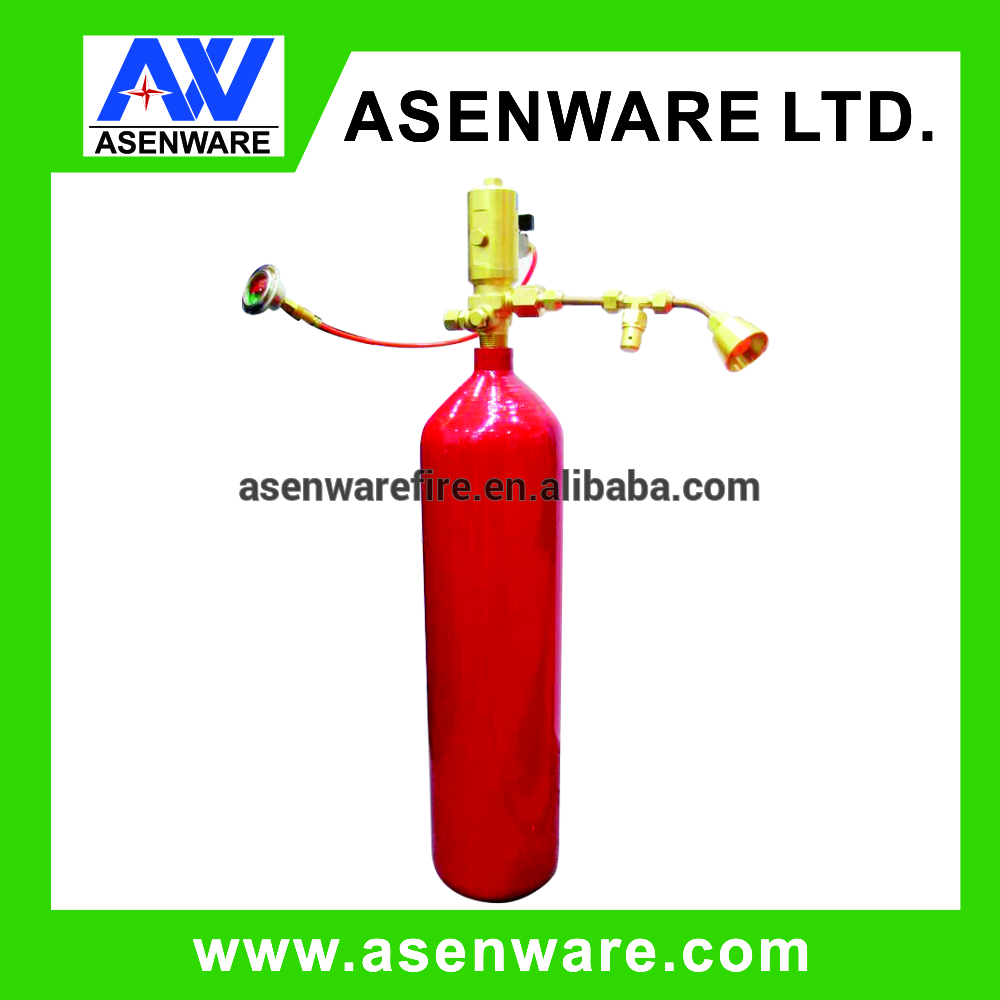

Structure : extinguishing agent group is mainly composed of extinguishing
agents bottle containers, container valves, siphons, safety relief devices, fire
extinguishing agents sampling ports, pressure-type leak detection apparatus and
protective devices and other components mistake jet.
halon gas fire suppression of fire fighting system
Specification
Filling pressure:4.2 MPa
Extinguishing agent release time:≤10s
Extinguishing agent filling density:≤950kg/m3
valve drive air pressure:6.0±1.0 MPa(20℃)
System Power Supply:AC220V/DC24V/1A
System working environment temperature:-10℃～55℃
System protection limits area:
the largest single area 800m²;
volume : the largest single area 3600m ³
System start-up mode :Automatic system startup, electrical manual,
mechanical emergency manual
Storage bottle volume :70L,90L,120L,150L,180L
