Click on the image to view the original image

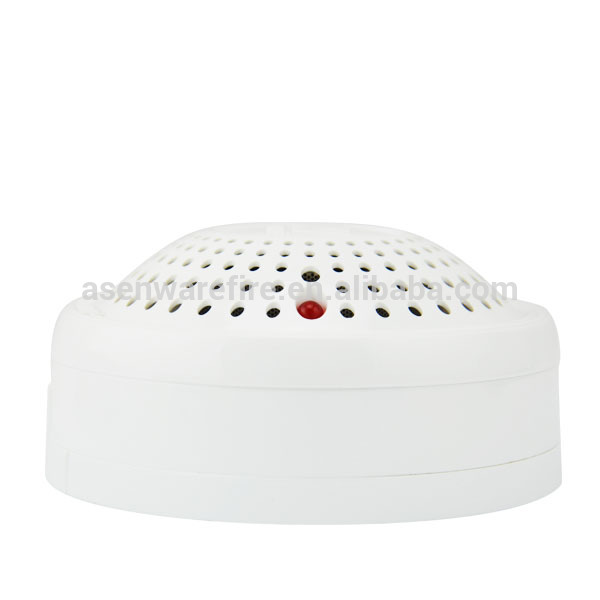

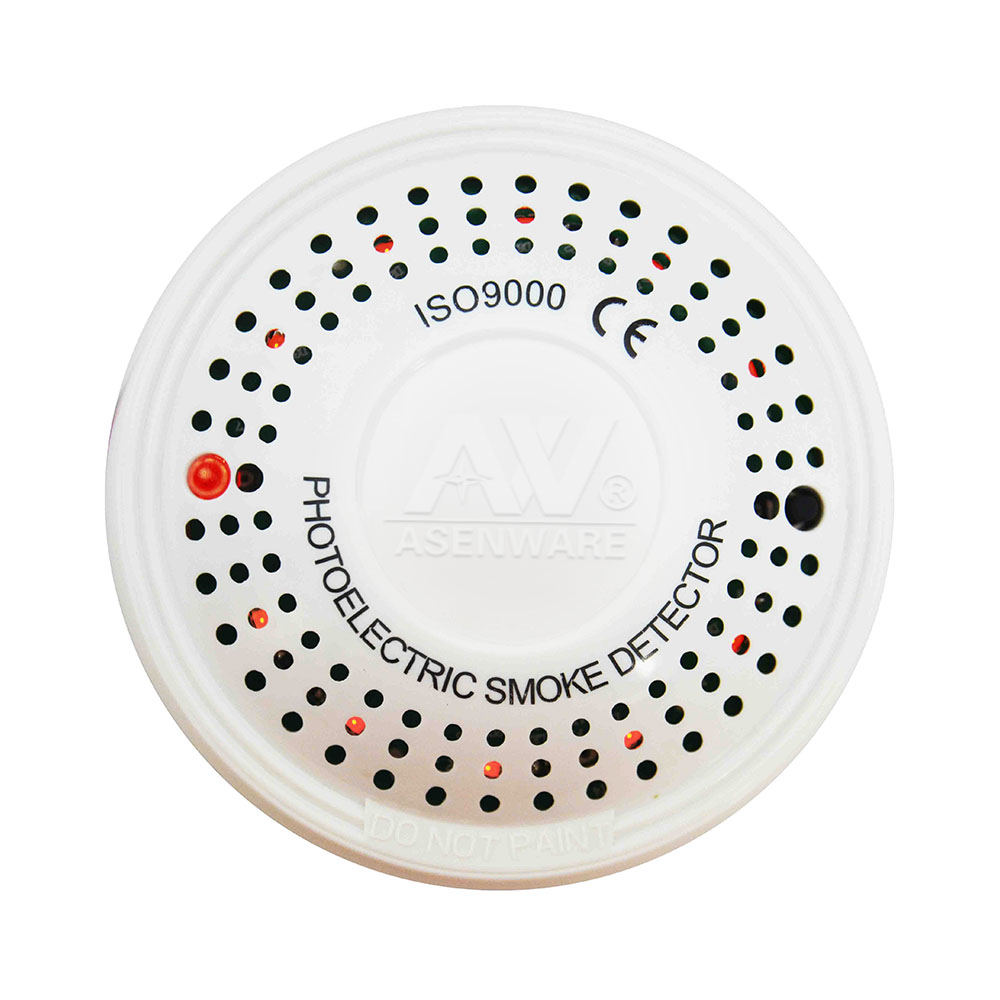

new design 220v smoke detector
conventional fire alarm smoke detectors with Strobe Sounder
Fire sensor :Photoelectric smoke chamber
Sensitivity :1.06±0.26%FT
Control mode :Advantage software
Connection2 wire
Operating voltageDC9-28V
Standby current120μA
MaterialShell: Fire resistance plastic
Connector: stainless steel
Product size Diameter: 99.45 mm, height: 48.2mm
Work temperature-10℃~50℃
Work humidity95% Relative humidity, non-condensing
CustomizationLogo, color
StandardsISO9000,EN54-7, CE,SASO,LPCB
Product size Diameter: 99.45 mm, height: 48.2mm
PackingCarton
Carton quantity10PCS/Carton; 10 Carton/Box
Carton/box sizeCarton: 20.5×23.5×11cm;
Box: 43×27×58cm
Carton/Box
weight 1.42kg/Carton;
14.2kg/Box
conventional fire alarm smoke detectors description.
1:The smoke detector is photoelectronic detector uses a state of-the-art optical sensing chamber. This Somke detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.
2:Two LEDs on each smoke detector provide local 360° visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the smoke detector sensitivity is outside the listed limit. The smoke detector can be reset only by a momentary power interruption
conventional fire alarm smoke detectors featureitle.
1.Compatible with all the conventional fire alarm
2.control panel
3.Unpolarized wire input
4.Wide range of operating voltages
5.Unique optical sensing chamber
6.Built in microprocessor intelligent software
7.Two LEDs blink standby, provide 360° visibility
8.Insect-resistant screening
9.Twist-on mounting base with tamper lock
10.Drift compensation and smoothing algorithms
11.Remote Indicator LED can be connected.
AW-FD602-UV
UV Flame Detector
AW-SSD701
Independent Smoke Detector
Factory
Zhongshan is our factory location and we have our rich experience design engineer and hundreds of skilled workers that keeps our factory goes well .
Office
Office loacated in Shenzhen which is convenient for our customers and here we have technical engineer and professional salesman ready for you .
