Product Description
Introduction:
Heptafluoropropane(HFC-227ea) automatic fire extinguishing system is a gas fire, automatic control and fire detection is one of the modern intelligent automatic fire extinguishing system , in line with DBJ15-23-1999 " Heptafluoropropane(HFC-227ea) clean gas fire extinguishing system design" and ISO14520-9 "Gas extinguishing systems- physical properties and system design. System requirements and product standards, this advanced system design, reliable performance, simple operation , environmental protection and good characteristics.
The technical parameters:
1.Filling pressure: 4.2 MPa
2. Extinguishing agent release time:≤10s
3. Extinguishing agent filling density: ≤950kg/m3
4. Valve drive air pressure: 6.0±1.0 MPa(20℃)
5. System Power Supply: AC220V/DC24V/1A
6. System working environment temperature: -10℃～55℃
7. System protection limits area: the largest single area 800m²; volume : the largest single area 3600m ³
8. System start-up mode:Automatic system startup, electrical manual, mechanical emergency manual
9. Storage bottle volume : 40L,70L,90L,120L,150L,180L

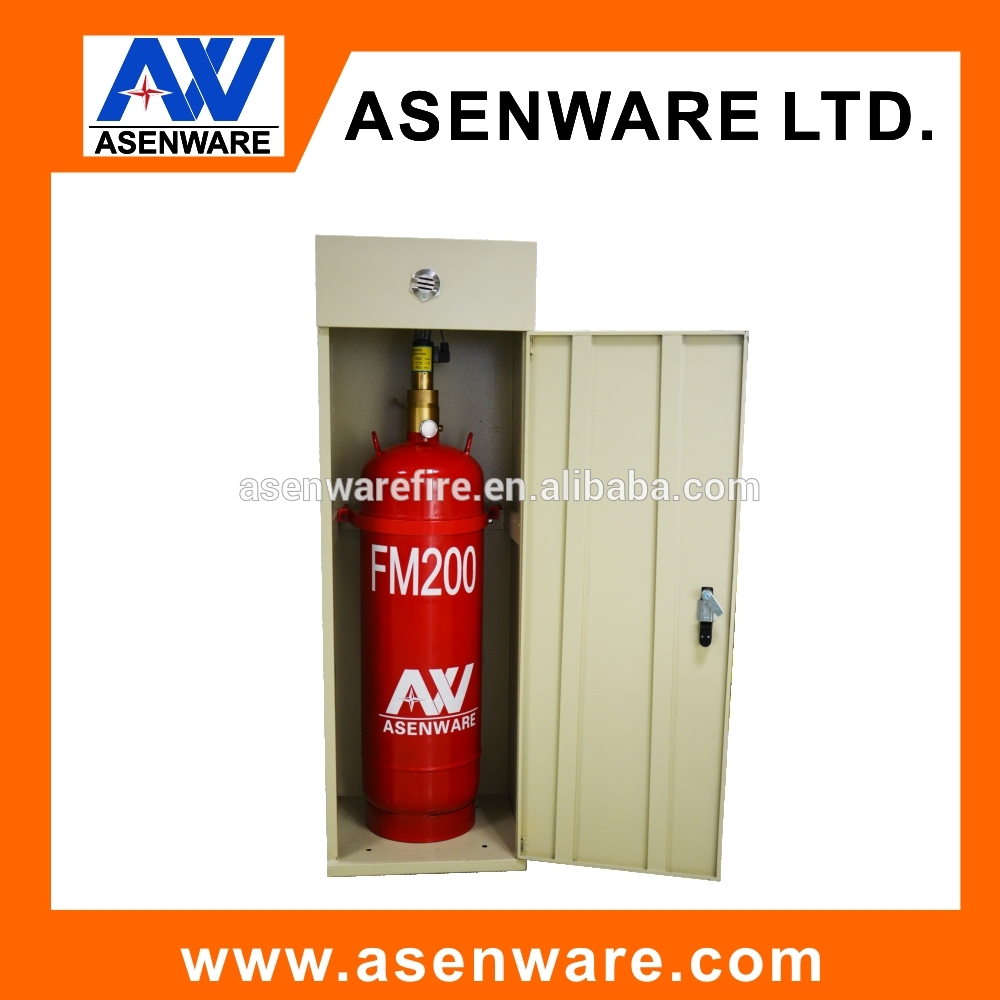

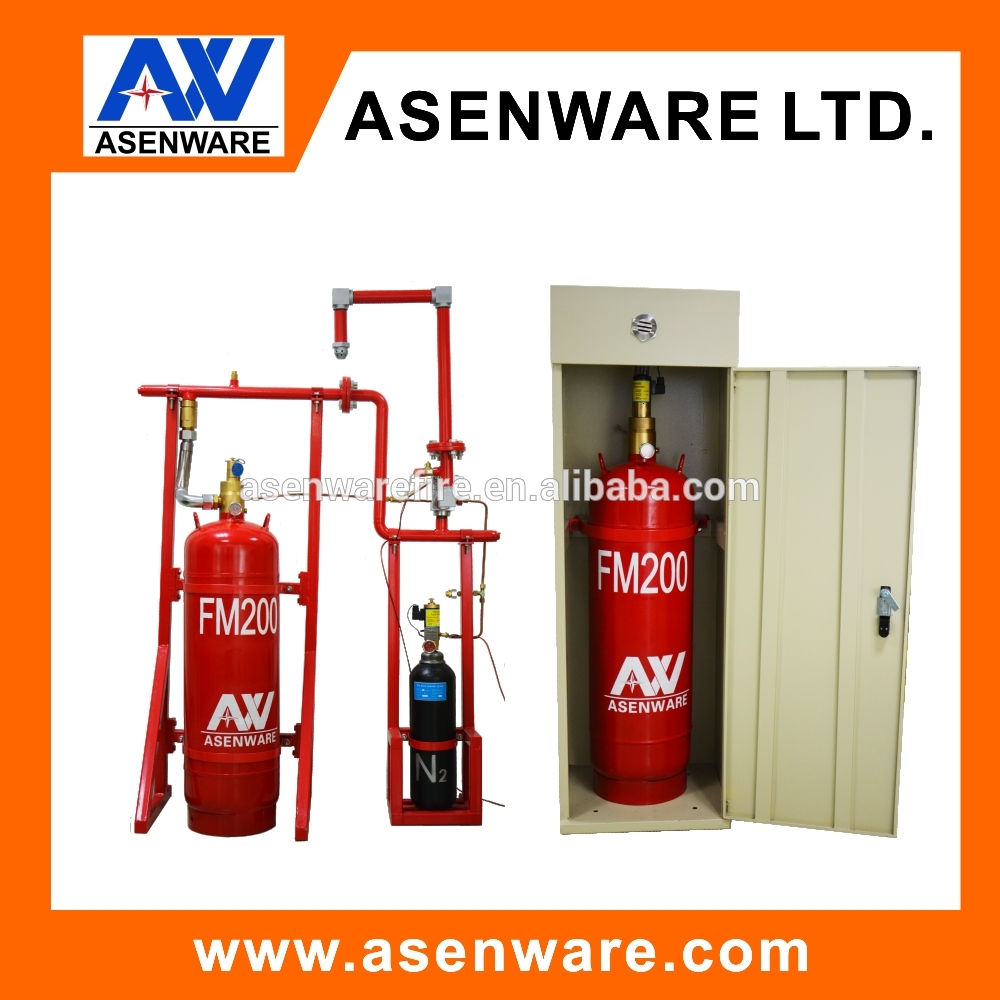

Detailed Images
Related Products
Conventional fire alarm products
Fire Pump
Fire Hose Reel
Why Choose us
1.We have more than 11 years experiences in this field.
2.Our professional engineers are always engaging in developing new technology.
3.We can do OEM.
4.Our products are economic, user-friendly and easy maintenance.
5.Our all products shipped after testing by laboratories.
6. Lead time: about 11 working days
Our Company
Aenware is 11 years fire system manufacturer in china
Products:
1.Fire alarm system(Conventional fire alarm & Addressable fire alarm)
2.FM200 suppression system
3.Fire hose reel/fire hose and cabinet
4.Fire emergency light
5.Fire pump system
Contact information: Ms. Lisa Liu
Telephone No.: +8613590125319
Skype: sales06_294
Welcome contact us!
Our projects
Our Factory
Certifications
