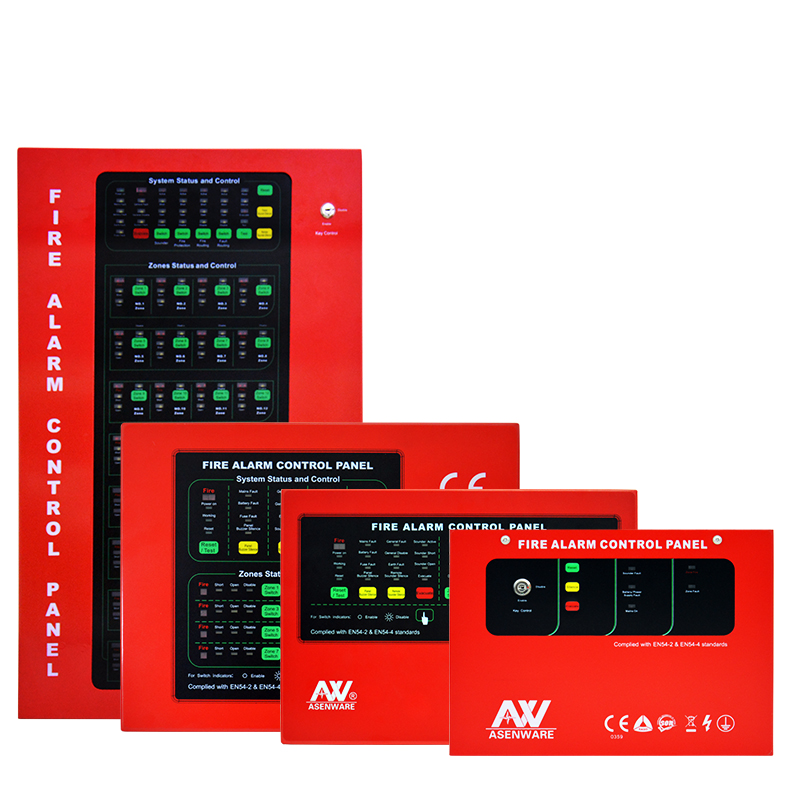

Fast lead time conventional fire monitor advanced fire panels
General description: Fast lead time conventional fire monitor advanced fire panels
1. This conventional advanced fire panels designed based on EN54 part 2&4 standard.
2. Modularized design which can extend from 1 zone to 32 zones easily.
3. The conventional advanced fire panels has 2 level control mode by a lock
4. It has 24VDC and 5VDC power supply output.
5. It has FIRE and FAULT signal output.
6. It has 2 general sounders output.
7. Each zone has 1 circuit detectors input .
8. Each zone can be disable by a button.
9. Has RESET button to reset the panel.
10. Has SILENCE button to stop BUZZER and SOUNDERS.
11. It has EVACUATE button to start a manual fire alarm immediately.
12. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the main power is on.
13. The conventional advanced fire panels has an optional GSM module for fire alarm by SMS .
14. It is economic, user-friendly and easy maintenance.
Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
| Parameters of conventional advanced fire panels | ||||
| Items | 1 Zone panel | 2 Zone panel | 4-8 Zone panel | 4-32 Zone panel |
| Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-08 | AW-CFP2166-04-16-32 |
| Power specification | ||||
| Mains supply voltage | 110VAC or 240VAC | |||
| Internal power supply | 27.2VDC | |||
| Total output current limited | 500mA @ 240VAC | 3A @ 240VAC | ||
| Main supply monitor for fault | Yes | |||
| Battery protection for low voltage | Yes | |||
| Batteries (default configuration) | 12V2AH*2 | |||
| Detector circuit specification | ||||
| Number of circuit | 1 | 2 | 4-8 | 4-32 |
| Line fault monitor for open circuit | Yes | |||
| Line fault monitor for short circuit | Yes | |||
| Line fault monitor for detector removal | Yes, if End of Line Monitor Unit fitted in place of End of Line Resistor | |||
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Detector continuity diodes | Silicon 1N4001 or Schottky type (required if End of Line Monitor Unit fitted to give Detector Removal Fault) | |||
| Call point resistor value | 470 to 680 Ω, 0.225 or 0.5 watt | |||
| Maximum number of smoke/heat detectors per zone | 20 (based on a total detector current of 2mA, each detector consuming 100μA). Note: if End of Line Monitor Unit is fitted, for correct operation maxmum voltage drop must not exceed 12 volts. | |||
| Maximum number of manual call points per zone | No limit | |||
| Sounder circuit specification | ||||
| Number of general circuits | 2 | |||
| End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Line fault monitor for open circuit | Yes | |||
| Line fault monitor for short circuit | Yes | |||
| Outputs fused AT | 400mA | |||
| Maximum number of bells @ 20mA of each Sounder output | 20 | |||
| Fuses | ||||
| Battery fuse | 1.5A F 20mm | |||
| Sounder outputs | 500mA F 20mm | |||
| Fire output | ||||
| Output type | NC and NO relay | |||
| Maximum current | 100mA | |||
| Connection block | ||||
| Largest acceptable conductor size | 2.5mm2 | |||
| Smallest acceptable conductor size | 0.75mm2 | |||
| Size and weight | ||||
| Dimensions(mm) | 272*200*70 | 320*231*90 | 395*502*124 | 362*565*124 |
| Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
| Weight (with batteries) | 5.8kg | 6.8kg | 19.6kg | 12.5kg |
Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
Aenware good quality with best price of 1 zone fire panel Asenware good quality with best price of 1 zone fire pane Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
Test room and equipment: Fast lead time conventional fire monitor advanced fire panels
Exhibition Room: Fast lead time conventional fire monitor advanced fire panels
Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .

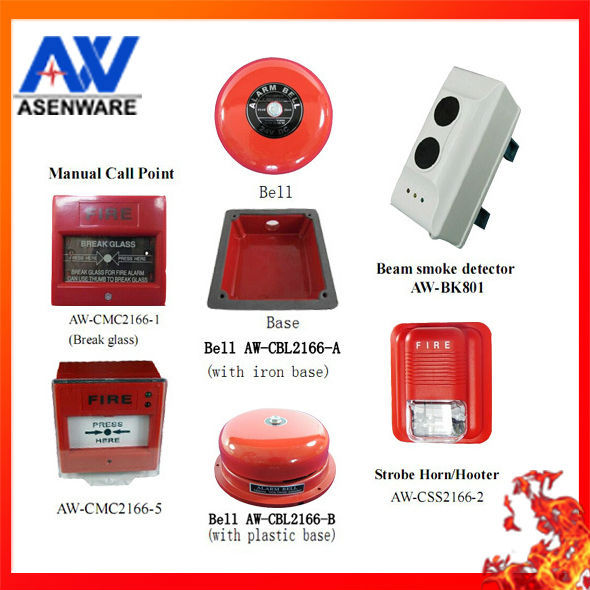

2. Our main producst: Addressable / Conventional fire alarm control panel , smoke detector , heat detector , bells etc.
3. Have an experienced R&D team to design special electric product for test and control usage.
Our Certificate : Fast lead time conventional fire monitor advanced fire panels
Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
1. Sample oder is welcomed to test our quality.
2. OEM,ODM service offer
3. 1 year warranty and warmly after sales-service
4. Welcome to visit our factory
Fast lead time conventional fire monitor advanced fire panels Fast lead time conventional fire monitor advanced fire panels
Packing: Paper carton or wood carton at option.
Shipping: DHL , TNT , EMS , FedExpress , UPS , etc
advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels
advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels
advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels
advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels
advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels
advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels advanced fire panels
Payment terms : T/T L/C Western union .
Delievry time : Usually about 3 to 5 days .Bulk order will last ship out in three weeks .
Certificate : CE , LPCB , ISO9001
Technical support : Yes
