Parameters: heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
Name | Parameters |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
Standby Current: | ≤120μ A@24VDC |
Maximum Alarm Current (LED on): | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
Operating Humidity Range: | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
Operating Temperature Range: | -10° C to 50° C (14° F to 122° F) |
Fix temperature Alarm: | 57° C (135° F) A1R |
Rate of rise Alarm: | 7.1° C/5S A1R |
Height: | 48.2 mm installed in Base |
Diameter: | 99.45 mm |

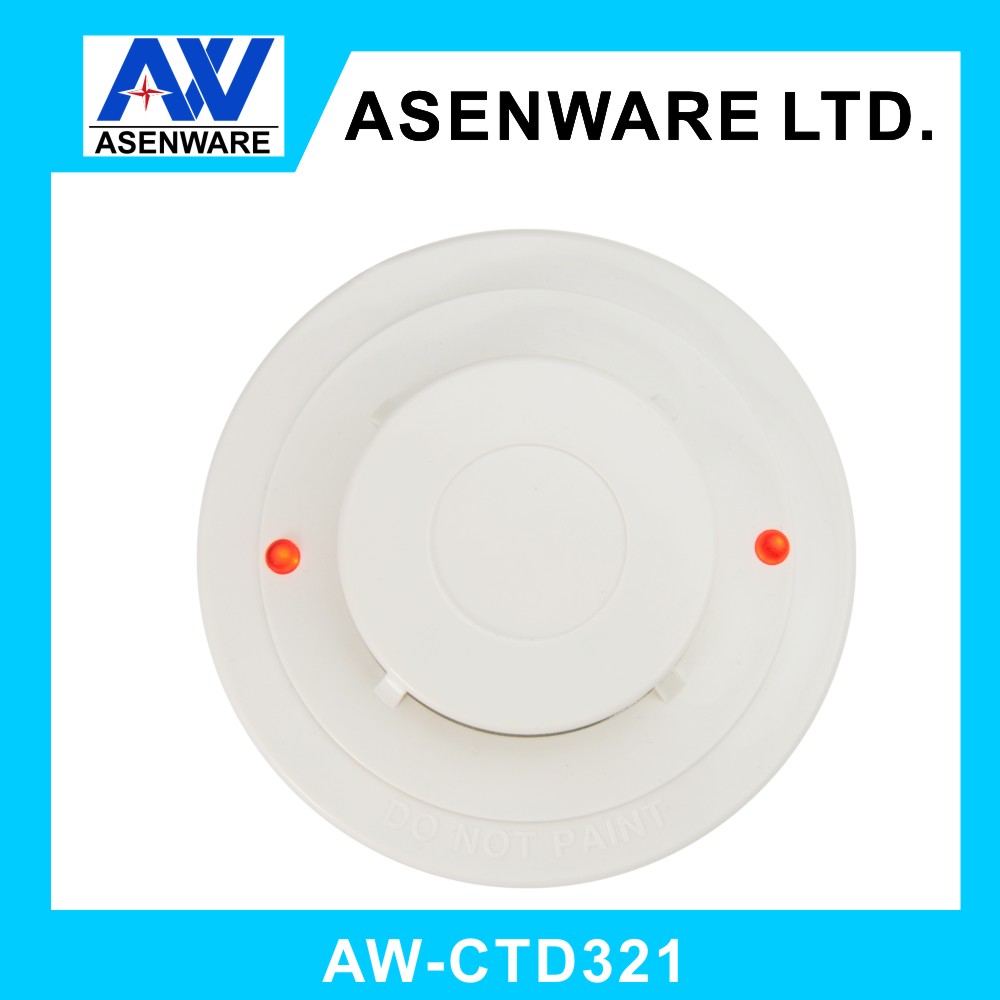

Description:heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
1. 9-28V wide Operating Voltage Range, Power supply non-polarity input.
2. SMT manufacture technology, excellent reliability.
3. The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber.
4. Compatible with most conventional fire alarm control panels.
5. Two LEDs on each detector provide local 360° visible alarm indication.
6. The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
7. These smoke detectors are tested by smoke box regulated as AW company standards in United Kingdom.
8. Low power consumption, high precision and stability;
9. Easy installation and maintenance.
10. Fix temperature Alarm: 57° C (135° F) A1R
11. Rate of rise Alarm: 7.1° C/5S A1R
you can chose combination rate-of-rise and fixed temperature heat detector, or separate the two functions.
heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detecto
Packaging Details: Plastic, Cartons, plywood case.
Shipping: deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: 3-5 days.
1. We offer OEM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
Please contact me freely to get more information.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-755-27663815-804 |
| ID: | cn1512961300 |
| Email: | sales10 @asenware.com |
heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc.
We can provide complete fire alarm solution.
