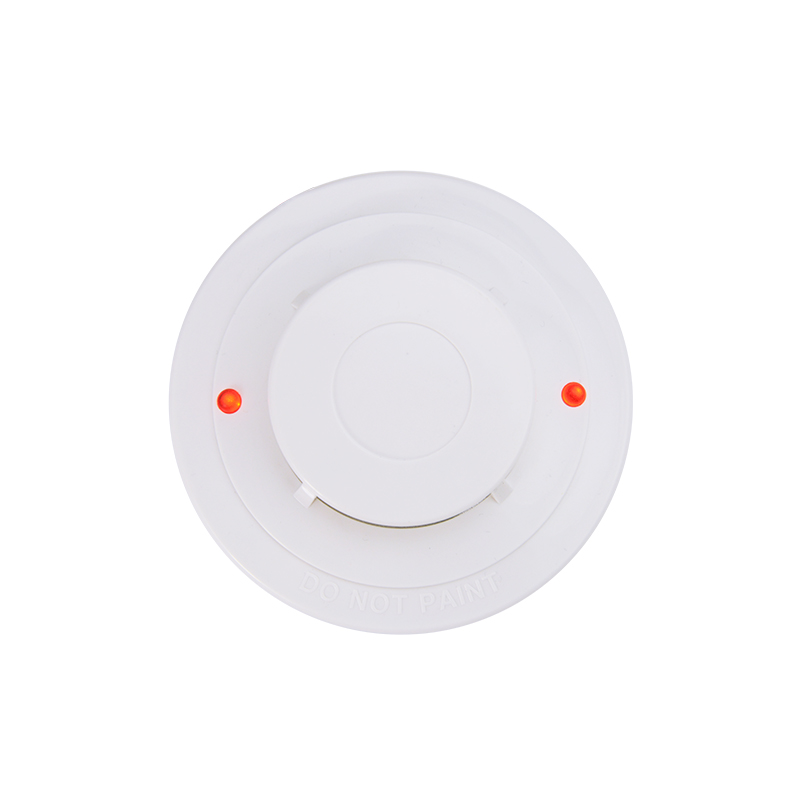

Description:heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
1. Power supply non-polarity input;
2. Network relay output and 2 LEDs indicating alarm;
3. SMT manufacture technology, high stability;
4. Embedded MCP soft ware control solution with high sensitivity and eliminate false alarm;
5. Using 304 stainless steel in chamber with excellent elasticity, and better corrosion resistance than nickel-plated iron;
6. The shell is made of brand-new PC materials which is flame retardant, high hardness, and better than ABS materials;
7. In-house combustion laboratory;
8. Easy installation and maintenance.
9. Fix temperature Alarm: 57° C (135° F) A1R
10. Rate of rise Alarm: 7.1° C/5S A1R
you can chose combination rate-of-rise and fixed temperature heat detector, or separate the two functions.
Parameters: heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
Name | Parameters |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
Standby Current: | ≤120μ A@24VDC |
Maximum Alarm Current (LED on): | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
Operating Humidity Range: | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
Operating Temperature Range: | -10° C to 50° C (14° F to 122° F) |
Fix temperature Alarm: | 57° C (135° F) A1R |
Rate of rise Alarm: | 7.1° C/5S A1R |
Height: | 48.2 mm installed in Base |
Diameter: | 99.45 mm |
heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detecto
heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
Packaging Details: Plastic, Cartons, plywood case.
Shipping: deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: 3-5 days.
1. We offer OEM/ODM service.
2. Quality assuance and rliabilty
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
1. Certificate: CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
Please contact me freely to get more information.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-13590136259 |
| ID: | cn1512961300 |
| Email: | sales10 at asenware.com |
heat detector / fire alarm heat sensor / heat alarm / conventional heat detector / heat detector price / types of heat detectors / rate of rise heat detector / fixed temperature heat detector
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc.
We can provide complete fire alarm solution.
