General Description: CE marked ,Antifire products Photoelectric smoke detector and Heat detector
1.The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
2.Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.
3. Fix temperature Alarm: 57° C (135° F) A1R
4. Easy Installation and maintenance
Products Specification: New products! 2-wire conventional smoke and heat detector
| Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
| Standby Current: | ≤120μ A@24VDC |
| Maximum Alarm Current (LED on): | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
| Operating Humidity Range: | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range: | -10° C to 50° C (14° F to 122° F) |
| Fix temperature Alarm: | 57° C (135° F) A1R |
| Smoke alarm sensitivity: | 1.06± .26%FT |
| Rate of rise Alarm: | 7.1° C/5S A1R |
| Height: | 48.2 mm installed in Base |
| Diameter: | 99.45 mm |

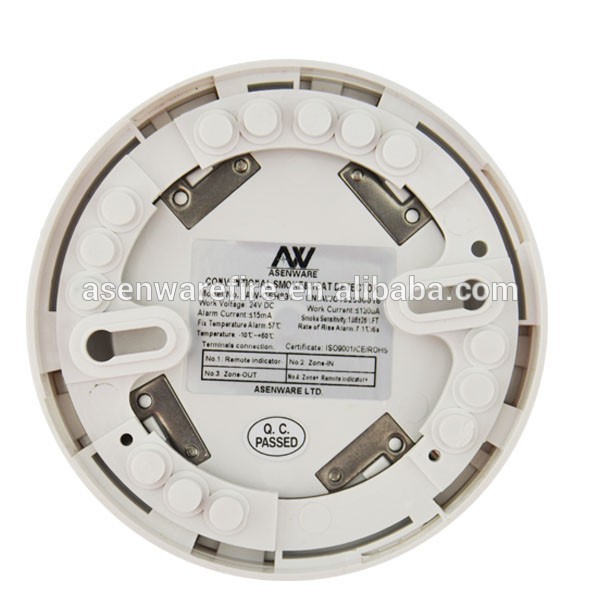

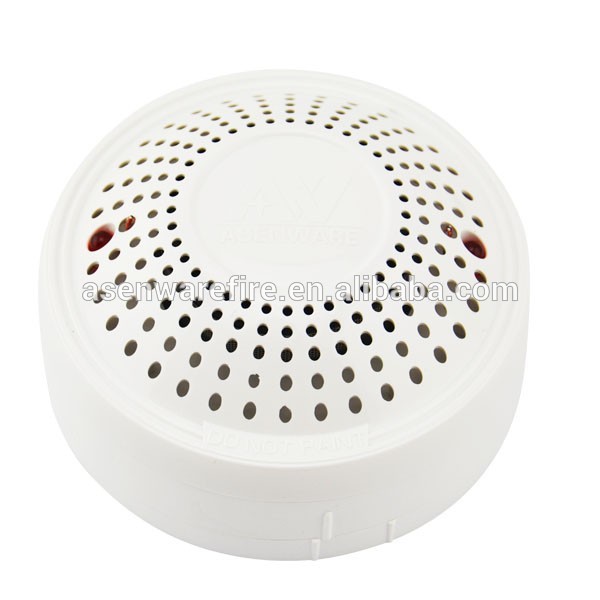

Pictures: Fire alarm combine smoke and heat detector/ sensor/fire alarm
Asenware
Sample Room: Built In Accessories Of 304 Stainless Steel With Plastic Cover Sensing Chamber Fire Alarm smoke and heat Detector
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
Packaging : PP Bag per unit to protect/Carton Box outside
Shpping : UPS, FEDEX, EMS, DHL ect.
Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service, In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Production Line pictures: Photoelectronic combined wired smoke and heat detector DC24V/220V Power Supply from Shenzhen
Certification: 100% SMT circuit, stable and reliable for heat fire Alarm Smoke and Heat Detector
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don"t worry for it, as we wanna long-term business cooperation with customers.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What is the lead time?
A: Small qty order needs 3-5 working days, big qty order usually needs 10-15 working days depends on order qty.
Q4: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q5: Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
