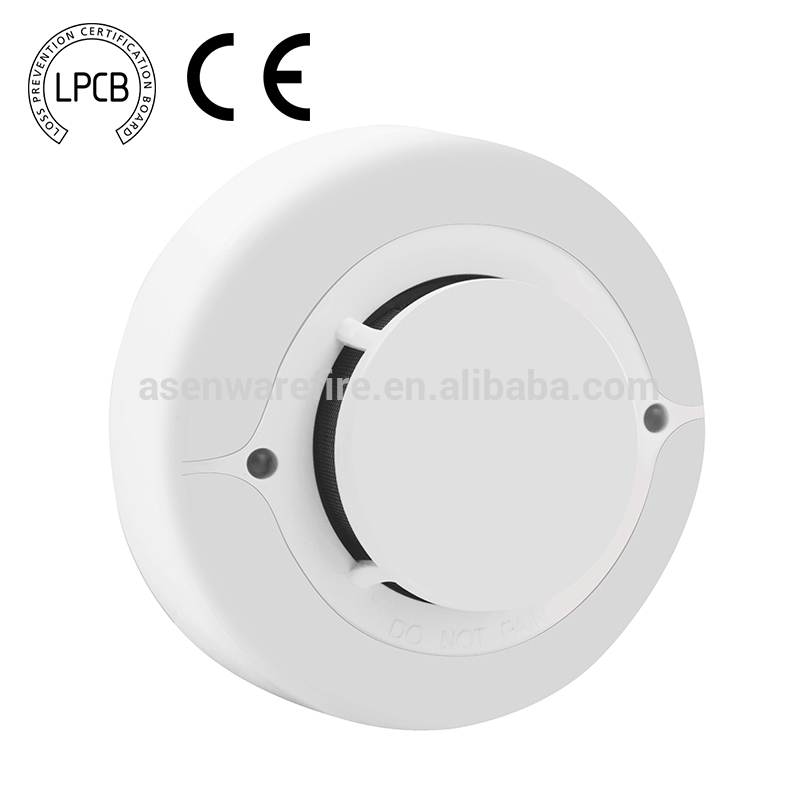

Fire Alarm Photoelectric 2 Wire Smoke Detector Fire Sensor Alarm White
Parameters:
Name | Parameters |
Model No. | AW-CSD381 |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarity |
Standby Current: | 120μA @ 24 VDC |
Maximum Alarm Current (LED on: ) | 15mA @ 24 VDC (1k Ohm current-limiting resistance) |
Operating Humidity Range: | 95% Relative Humidity, Non-condensing |
Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
Adjustable Sensitivity: | 1.06±.26%/FT |
Height: | 48.2mm installed in Base |
Diameter: | 99.45mm |
New Home Security Photoelectric 2 Wire Smoke Density Detector Fire Sensor Alarm White
Description:
1. 9-28V wide Operating Voltage Range, Power supply non-polarity input.
2. SMT manufacture technology, excellnt reliability.
3. The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber.
4. Compatible with most conventional fire alarm control panels.
5. Two LEDs on each detector provide local 360° visible alarm indication.
6. The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
7. These smoke detectors are tested by smoke box regulated as AW company standards in United Kingdom.
8. Lowr power consumption, high precision and stability;
9. Easy installation and maintenance.
New Home Security Photoelectric 2 Wire Smoke Density Detector Fire Sensor Alarm White
New Home Security Photoelectric 2 Wire Smoke Density Detector Fire Sensor Alarm Whit
Packaging Details: Plastic, Cartons, plywood case.
Shipping: deliver by air mail or ship for your order( EMS, DHL,FedEx,UPS).
Delivery Time: 3-5 days.
New Home Security Photoelectric 2 Wire Smoke Density Detector Fire Sensor Alarm
1. We offer OM/ODM service.
2. Quality assurance and reliabilty
3. Professional and experienced R&D center can offer free technical support.
4. One year warranty and technical maintenance.
1. Certificate: LPCB,CE, ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. Warranty: One year
New Home Security Photoelectric 2 Wire Smoke Density Detector Fire Sensor Alarm White
Please contact me freely to get more information.
| Name: | Bella Yu |
| Skype: | sales10_303 |
| Tel: | 0086-13590136259 |
| ID: | cn1512961300 |
| Email: | sales10 @ asenware.com |
New Home Security Photoelectric 2 Wire Smoke Density Detector Fire Sensor Alarm White
Asenware is specialized in the Fire Alarm and BMS(Building Management System) over 10 years.
We develop and manufacture addressable fire alarm system, conventional fire alarm system and CCTV Security alarm system etc.
We can provide complete fire alarm solution.
