Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
Parameters of electric smoke detectors | |
Model No. | AW-CSD811 |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
Standby Current: | ≤120μA @ 24 VDC |
Maximum Alarm Current (LED on: ) | ≤15mA @ 24 VDC (1k Ohm current-limiting resistance) |
Operating Humidity Range: | ≤ 95% Relative Humidity, Non-condensing |
Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
Adjustable Sensitivity: | 1.06±.26%/FT |
Height: | 48.2mm installed in Base |
Diameter: | 99.45mm |

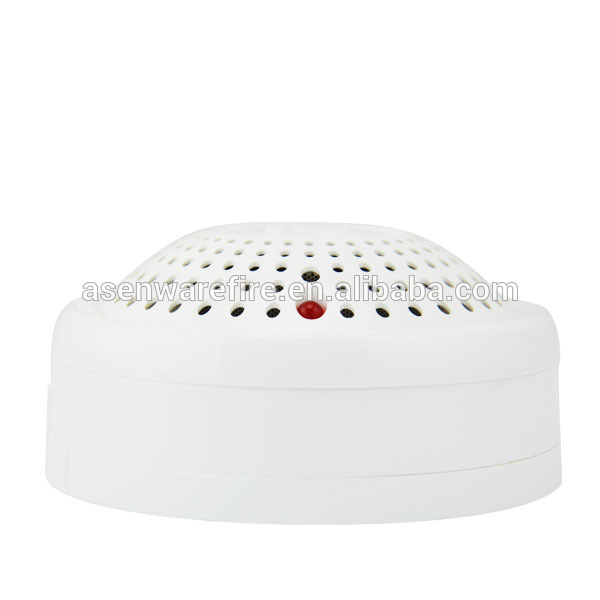

General Description: Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
♦The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
♦Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
♦The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
Exhibition Room: Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
Wide Application: Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .
2. Our main producst:fire alarm panel,smoke detector,heat detector,bells etc.
3. Have an experienced R&D team to design special electric product for test and control usage.
Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support Wholesale conventional smokedetector / conventional fire sensor / fire solutions with technical support
1. All-round technical support ? → Yes
2. How about the warranty ? → One year
3. Delivery time ? → Usually about 2 to 5 days.
4. Certificate ? → CE LPCB ISO9001
5. Payment terms ? → T/T,L/C,Western union,Money Gram.
6. Shipping Packing ? → Paper carton or wood carton at option.
7. Modes of transportation ? → DHL,TNT,EMS,FedExpress,UPS,etc
