New coming low price conventional smoke detector
Parameters of electric smoke detectors | |
Model No. | AW-CSD811 |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
Standby Current: | ≤120μA @ 24 VDC |
Maximum Alarm Current (LED on: ) | ≤15mA @ 24 VDC (1k Ohm current-limiting resistance) |
Operating Humidity Range: | ≤ 95% Relative Humidity, Non-condensing |
Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
Adjustable Sensitivity: | 1.06±.26%/FT |
Height: | 48.2mm installed in Base |
Diameter: | 99.45mm |
General Description: New coming low price conventional smoke detector
♦The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

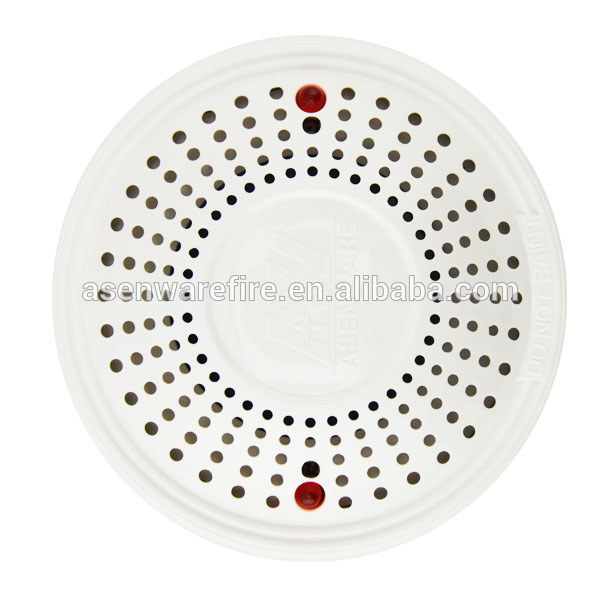

♦Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
♦The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
New coming low price conventional smoke detector New coming low price conventional smoke detector
Exhibition Room: New coming low price conventional smoke detector
Wide Application: New coming low price conventional smoke detector
New coming low price conventional smoke detector New coming low price conventional smoke detector
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .
2. Our main producst:fire alarm panel,smoke detector,heat detector,bells etc.
3. Have an experienced R&D team to design special electric product for test and control usage.
New coming low price conventional smoke detector New coming low price conventional smoke detector
1. Independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
New coming low price conventional smoke detector New coming low price conventional smoke detector
1. All-round technical support ? → Yes
2. How about the warranty ? → One year
3. Delivery time ? → Usually about 2 to 5 days.
4. Certificate ? → CE LPCB ISO9001
5. Payment terms ? → T/T,L/C,Western union,Money Gram.
6. Shipping Packing ? → Paper carton or wood carton at option.
7. Modes of transportation ? → DHL,TNT,EMS,FedExpress,UPS,etc
