Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector
Parameters of smoke detector | |
Model No. | AW-CSD811 |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
Standby Current: | ≤120μA @ 24 VDC |
Maximum Alarm Current (LED on: ) | ≤15mA @ 24 VDC (1k Ohm current-limiting resistance) |
Operating Humidity Range: | ≤ 95% Relative Humidity, Non-condensing |
Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
Adjustable Sensitivity: | 1.06±.26%/FT |
Height: | 48.2mm installed in Base |
Diameter: | 99.45mm |

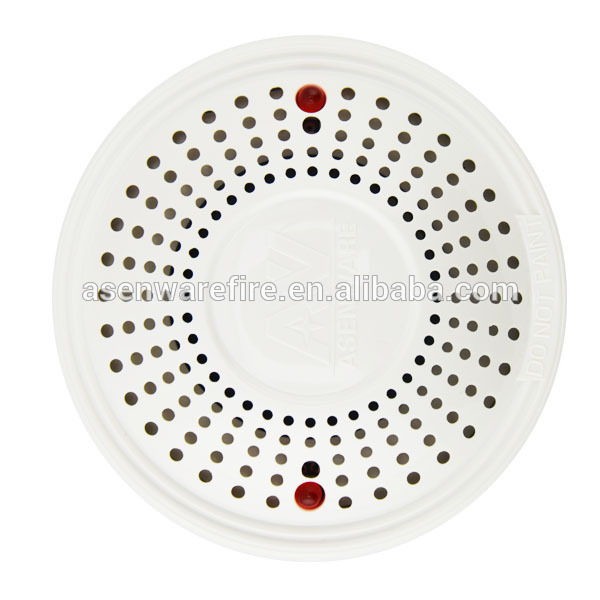

General Description: Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector
♦The smoke detector are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
♦Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
♦The smoke detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector
Exhibition Room: Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector
Wide Application: Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector
Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector Conventional 2 Wire Fire Alarm / Pure PC Smoke Detector
