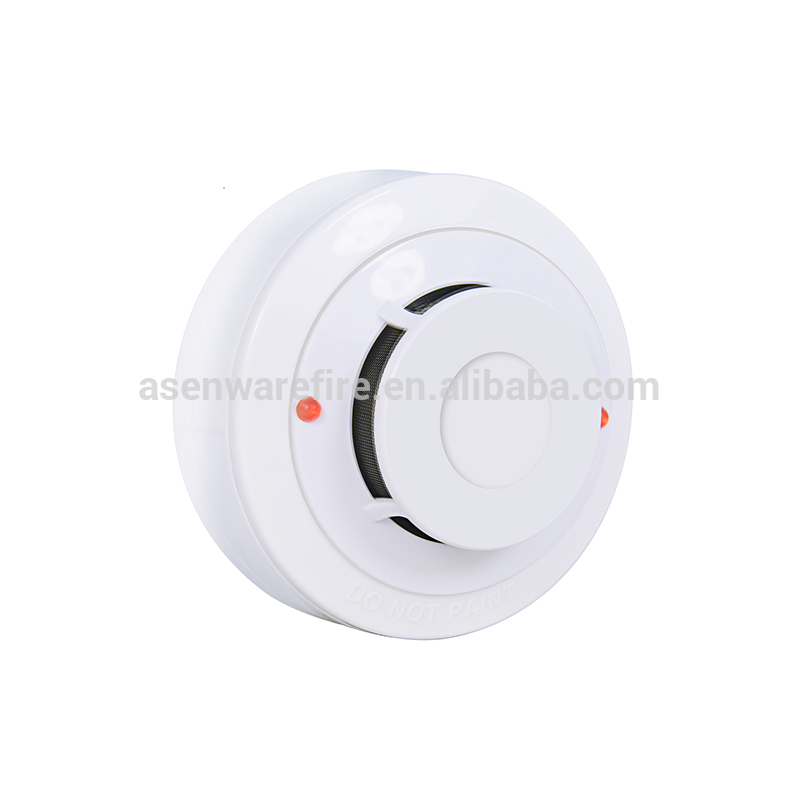

Photolectric Conventional Smoke Detector Alarm with Reply Output , 2 Wire Fire Alarm Smoke Sensor Alarm AW-CSD-811
Description:
1. The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.
2. Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
3. The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
4. 100% tested by smoke box regulated as AW company standards in United Kingdom.
Parameters:
Name | Parameters |
Model No. | AW-CSD811 |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarity |
Standby Current: | ≤120μA @ 24 VDC |
Maximum Alarm Current (LED on: ) | ≤15mA @ 24 VDC (1k Ohm current-limiting resistance) |
Operating Humidity Range: | ≤ 95% Relative Humidity, Non-condensing |
Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
Adjustable Sensitivity: | 1.06±.26%/FT |
Height: | 48.2mm installed in Base |
Diameter: | 99.45mm |
1.Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
Packaging Details: Standard export packing including: 1) Plastic 2) Cartons 3) Pallets or plywood case by DHL,FEDEX,TNT etc.
Delivery Time: 2-5 days
1. Certificate: CE ISO9001
2. Payment terms: T/T,L/C,Western union,Money Gram.
3. All-round technical support: Yes
4. Warranty: One year
