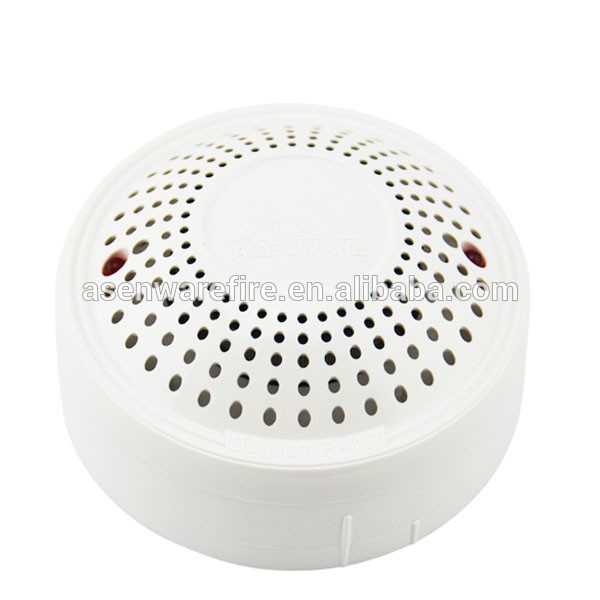

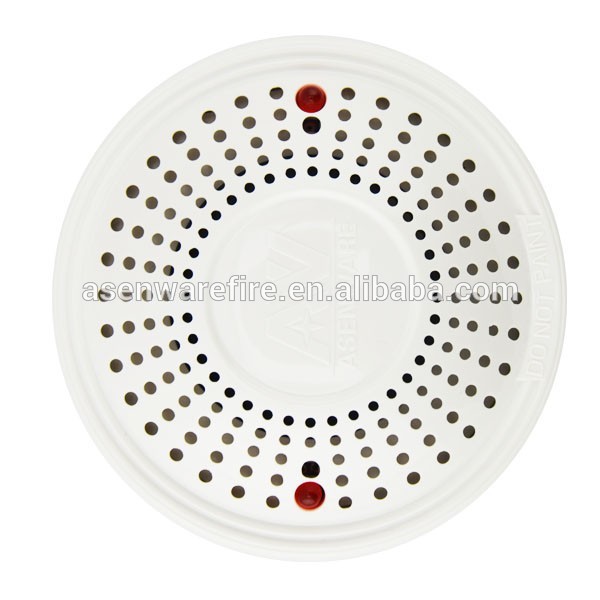

General Description: New Arrival Smoke Detector ! 4 Wired Photoelectical Smoke Detector For Fire Wired Alarm Control Panel
1.The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
2.Heat detector and smoke & heat detector combine a photo electronic sensing chamber and a temperature heat detector.
3. Smoke Alarm Sensitivity: 1.06± .26%FT
4. Easy Installation and maintenance
Products Specification: CE certificated fire alarm security system with smoke detector,220v smoke detector
| Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
| Standby Current: | ≤120μ A@24VDC |
| Maximum Alarm Current (LED on): | ≤15mA@24VDC (1K Ohm current-limiting resistance) |
| Operating Humidity Range: | ≤95%RH(40°C±2°C) Relative Humidity, Non-condensing |
| Operating Temperature Range: | -10° C to 50° C (14° F to 122° F) |
| Smoke Alarm Sensitivity: | 1.06± .26%FT |
| Fix temperature Alarm: | 57° C (135° F) A1R |
| Rate of rise Alarm: | 7.1° C/5S A1R |
| Height: | 48.2 mm installed in Base |
| Diameter: | 99.45 mm |
Pictures: Very hot! smoke detector motion sensor,industrial smoke detector with 4 wire 24V
Sample Room: 2015 Home security high sensitive Smoke sensor,cigarette smoke detector cheap price
1) Professional experience and ability to accept and fulfill ODM/OEM orders.
2) Direct control on material, testing, quality, lead time ect.
3) Flexible Payment terms ranged at different quantity
4) One year warranty life for all detectors sold out from AILIF.
5) We accept TT/LC/Western Union payment
6) We accept OEM logo printing and customized package
Packaging : PP Bag per unit to protect/Carton Box outside
Shpping : UPS, FEDEX, EMS, DHL ect.
Our company is a professional fire alarm system & relevant accessories manufacturer in China for many years.With updated machinery and skilled staffs we have supplied stable high quality products to customers all over the world.
Our experianced engineers and exporting team will answer your inquiry or email at the first time,and providing professional service from products visiting,ordering to deliver goods and after-sales service, In the same time, we also can provide professional technical solutions for you item even can arrive your country.The aim is to saving your precious time and cost.
Production Line pictures: Cigarette Fire detection alarm system of high-grade smoke sensors, smoke alarm/ smoke detector
Testing pictures: Fire alarm system 220V Smoke Sensor Detector Alarm Tester,home 4 wire Smoke Detector Alarm/ smoke alarm
Certification: 2015 hot selling fire alarm,smart smoke detector,4 wire 24V &220VDC cigarette smoke detector
Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable good quality before shipment. So please don"t worry for it, as we wanna long-term business cooperation with customers.
Q2: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: What is the lead time?
A: Small qty order needs 3-5 working days, big qty order usually needs 10-15 working days depends on order qty.
Q4: How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, if the color and position are alright, we would make sampling first from silk print factory and take picture for your second confirmation before mass production.
Q5: Do you offer guarantee for the products?
A: Yes sure, we offer one year guarantee for the products
