Conventional Smoke Detector Combine Photoelectronic Sensing Chamber Security Smoke Detector
Name | Parameters |
Model No. | AW-CSD811 |
Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized |
Standby Current: | ≤120μA @ 24 VDC |
Maximum Alarm Current (LED on: ) | ≤15mA @ 24 VDC (1k Ohm current-limiting resistance) |
Operating Humidity Range: | ≤ 95% Relative Humidity, Non-condensing |
Operating Temperature Range: | 14°F to 122°F (-10°C to 50°C) |
Adjustable Sensitivity: | 1.06±.26%/FT |
Height: | 48.2mm installed in Base |
Diameter: | 99.45mm |
General Description:
♦The detectors are photo-electronic detector uses a state of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm panel.

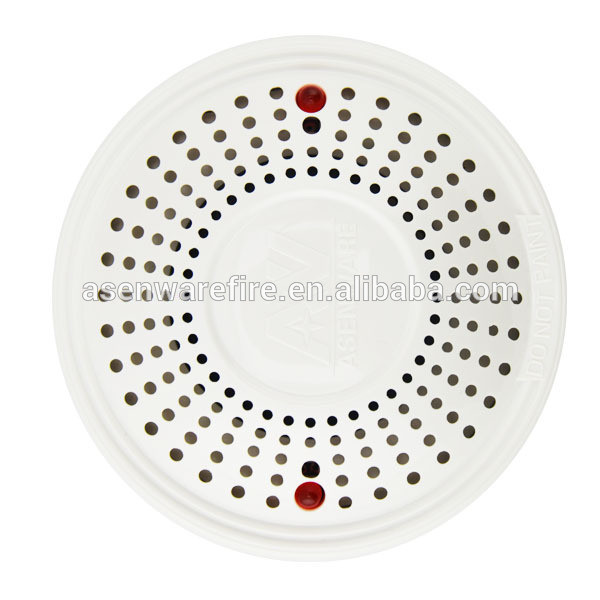

♦Two LEDs on each detector provide local 360° visible alarm indication. They flash every six seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.
♦The detector that initiated the alarm condition will have its red LED and relays latched until reset by panel.
Exhibition Room:
Wide Application:
1. Asenware is a professional manufacturer of fire alarm systems for 10 years .
2. Our main producst:fire alarm panel,smoke detector,heat detector,bells etc.
3. Have an experienced R&D team to design special electric product for test and control usage.
1. Sample oder is welcomed to test our quality.
2. OEM,ODM service offer
3. 1 year warranty and warmly after sales-service
4. Welcome visit our factory
Packing: Paper carton or wood carton at option.
Shipping:DHL,TNT,EMS,FedExpress,UPS,etc
Payment terms : T/T L/C Western union .
Delievry time : Usually about 2 to 5 days .Mass product about three weeks .
Warranty : One year
Certificate : CE LPCB ISO9001
Technical support : Yes
