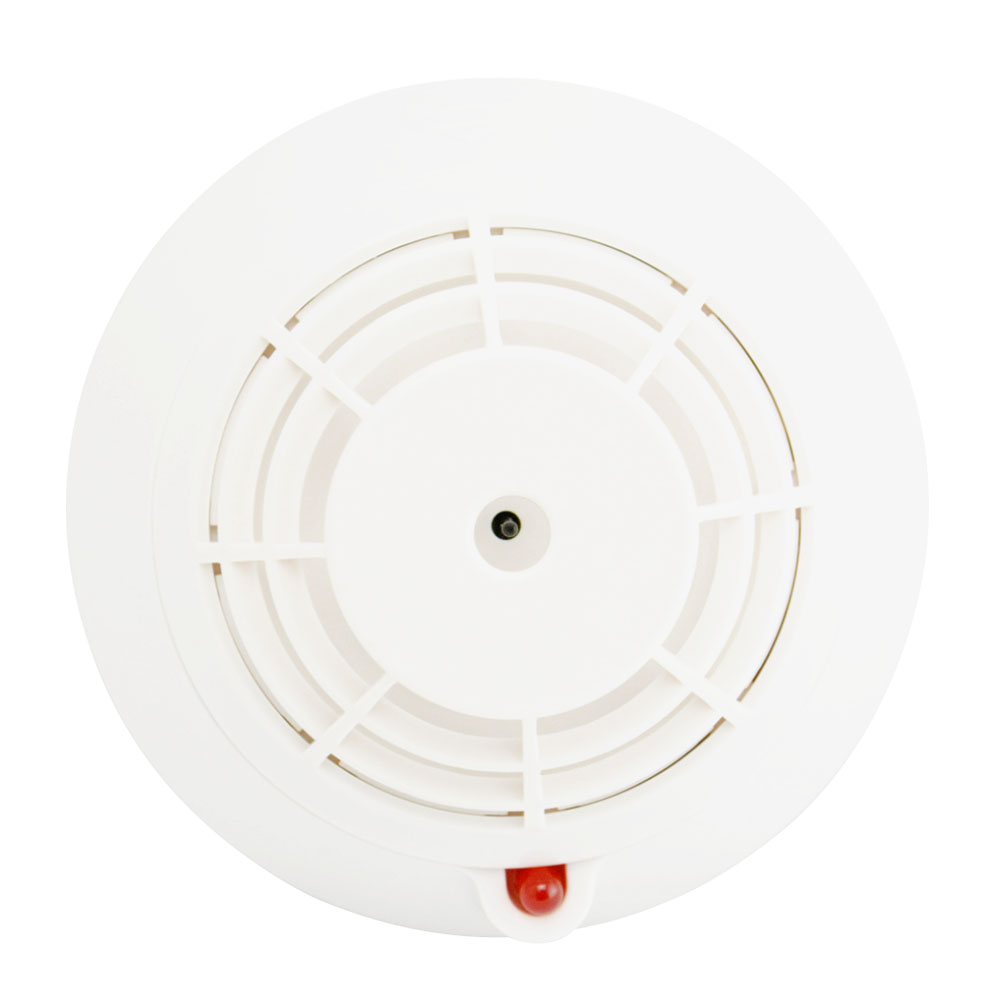

AW-ATD2188 Asenware Intelligent Addressable Temperature Detector 24V
Introduction:
AW-ATD2188 addressable heat detector (Detector hereunder) is a mated product of the 2188/2100 series fire alarm control panels. It uses a two-bus work mode. With an internal microprocessor, it supports electronic coding.
The detector realizes real-time acquisition of the in situ temperature data and sends back the data to a fire alarm control panel. It can also receive and execute the control commands given by a fire alarm control panel. When in a routing inspection, the detector indicator will blink.
When there is a fire in the monitored area and the temperature has reached the alarm threshold, the fire alarm control panel will confirm a fire alarm according to the received message sent from the detector, and the detector indicator will light at the same time to indicate a fire alarm.
The detector is suitable for such industrial and civil buildings that have a great deal of heat when fire takes place, such as kitchens, boiler rooms, generator rooms, drying workshops and smoking rooms and is not suitable for places with a great deal of smoke but little heat.
1.It can realize electronic coding and rewrite the address via coder in situ.
2.Within a single-chip microcomputer, it can realize real-time data acquisition and processing, realize a curve tracing for the field situation.
3.It has a temperature compensation function and a sensor fault detection function (fault reporting to fire alarm control panel).
4.Non-polarity, two-bus connection that ensures convenient installation and maintenance.
5.Designed with an upper cover and a lower cover and installed on an independent base, it can be installed, debugged and maintained conveniently
| Operating Voltage | 24V(Pulse Modulation) |
| Wiring Method | Non-polarity 2-wire bus addressable system(L1, L2) |
| Operating Current | <300 μA(Monitoring Status) or <1.5mA(Alarm Status) |
| Operating Environment | Indoor, Temperature:-10℃~+50℃;Relative Humidity:≤95% (40℃±2℃,without condensation) |
| Protection Area | 60m2 |
| Installation Height | ≤8m |
| Size(with base) | Diameter:100mm,Height:56mm |
| Weight(with base) | about47g |
