2015 hot sale fire alarm control unit fire suppression system
1. Modularized design with extendable zones from 1 to 32 zones.
2. R&D Bsed on the EN54 part 2&4 standard.
3. Two-level control modes by the lock.
4. 24VDC & 5VDC power supply outputs.
5. FIRE & FAULT signal outputs.
6. 2 sounders outputs.
7. Each zone has 1-circuit detectors" input .
8. Each zone can be disabled by a button.
9. Manual RESET available.
10.SILENCE button to stop all outside BUZZER & SOUNDERS.
11.EVACUATE button to start manual fire alarm immediately.
12.Battery low-level protection function, i.e.,lower than 21VDC, battery will be cut off automatically until the main power is on.
13.Optional GSM module to realize SMS notification in case of fire.
2015 hot sale fire alarm control unit fire suppression system
1.Economic
2.Metal Housing
3.Keypad
4.Realtime Alarm
Parameters of 2015 hot sale fire alarm control unit fire suppression system
| ITEM | 1 Zone panel | 2 Zone panel | 4-8Zone panel | 4-32 Zone panel |
| Model No. | AW-CFP2166-01 | AW-CFP2166-02 | AW-CFP2166-04-16 | AW-CFP2166-04-32 |
| Power specification | ||||
| Mains supply voltage | 110VAC or 240VAC | |||
| Internal power supply | 27.2VDC | |||
| Total output current limited | 500mA @ 240VAC | 500mA @ 240VAC | 3A @ 240VAC | 3A @ 240VAC |
| Batteries (Default Configuration) | 12V2AH*2=24VDC in Total | |||
| End of Line device | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| End of line resistor value | 6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold) | |||
| Size and weight | ||||
| Dimensions(mm) | 272*200*70mm | 320*231*90mm | 395X502X124 | 362X565X124 |
| Weight (without batteries) | 4kg | 5kg | 7kg | 8kg |
| Weight (with batteries) | 5.8kg | 6.8kg | 9.6kg | 12.5kg |

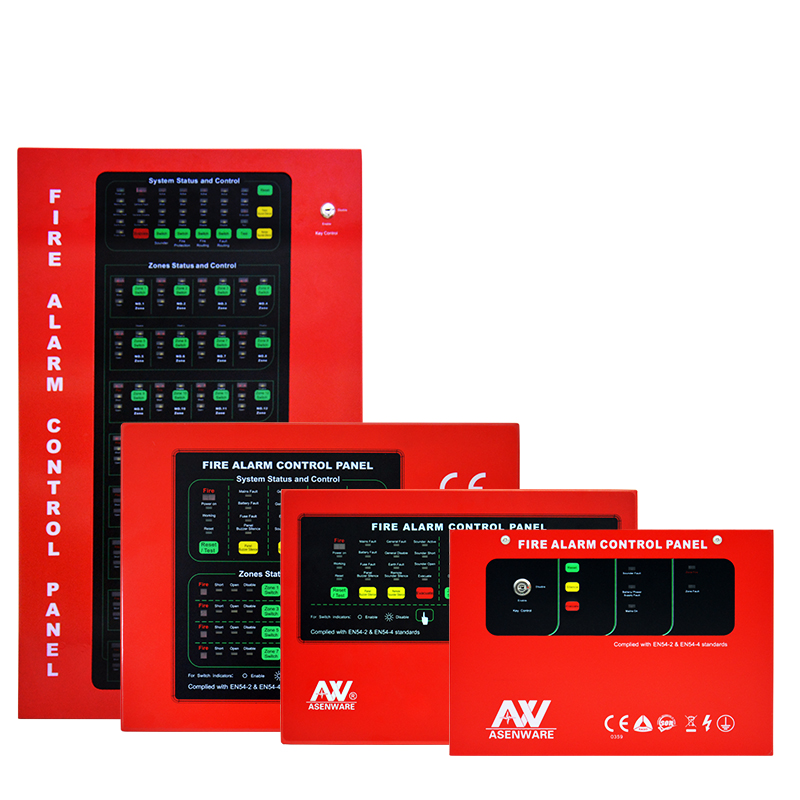

Pictures of 2015 hot sale fire alarm control unit fire suppression system
2015 hot sale fire alarm control unit fire suppression system
1.OEM / ODM service available .
2.Timley Considerate presales & aftersales services
3.Highly cost-performance advantage
4.To satisfy the requirement of clients is our top priority with responsibily.
2015 hot sale fire alarm control unit fire suppression system
Established in 2006 with headquaters in London,UK, Asenware grows up into an international group company in BMS & NDT sector.
We are a technology-oriented company that devotes to R&D NDT(Non Destructive Test) & BMS(Building Management System) industries. We have two factories : one factory is in Shenzhen city for BMS products, and the other is in Dandong city for NDT X-ray products. In our BMS factory, we produce Addressable & Conventional Fire Alarm System, CCTV camera & DDC controller. In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories. We have an experienced R&D team to design special electric product for test and control usage.
We have an experienced R&D team to design special electric product for test and control usage.
Our aim "try all our best offer our customer satisfied items and service."
Welcome to join us in fire field for our mutual prosperity.
Our factory(2015 hot sale fire alarm control unit fire suppression system)
Certification (2015 hot sale fire alarm control unit fire suppression system)
2015 hot sale fire alarm control unit fire suppression system
Payment Terms:T/T/L/C/Western Union.
Lead Time :2-5 days(fast lead time for small quantity)
Warranty :One year
Certificate :CE LPCB ISO9001
