Title:
Charge a single entrance guard suits,Card/password two way to open the door, the entrance guard the host with the function of the doorbell button, can be an external the bell MJPT001
Features:
1. The appearance of the use of acrylic panels, noble and elegant, the shell is made of UV material handling smooth texture, the back cover with rubber paint process, feel mellow, no rigid sense;
2. New touch key, can reflect more high-tech Charm;
3. Can be directly external standard WG26 card reader, low cost single access double import and open function;
4. Flexible operation, do not need to enter your user ID can directly and continuously increase the user card, perfect function makes you more convenient installation and operation;
5. This machine can be used as a Wiegand26 reader.
6. Wide input voltage range, small size, high reliability, electromagnetic compatibility, and high efficiency, perfect protection, with remote control to open the door, the temperature rise of electric locking (when compared with power-frequency) greatly reduce.
Specifications:

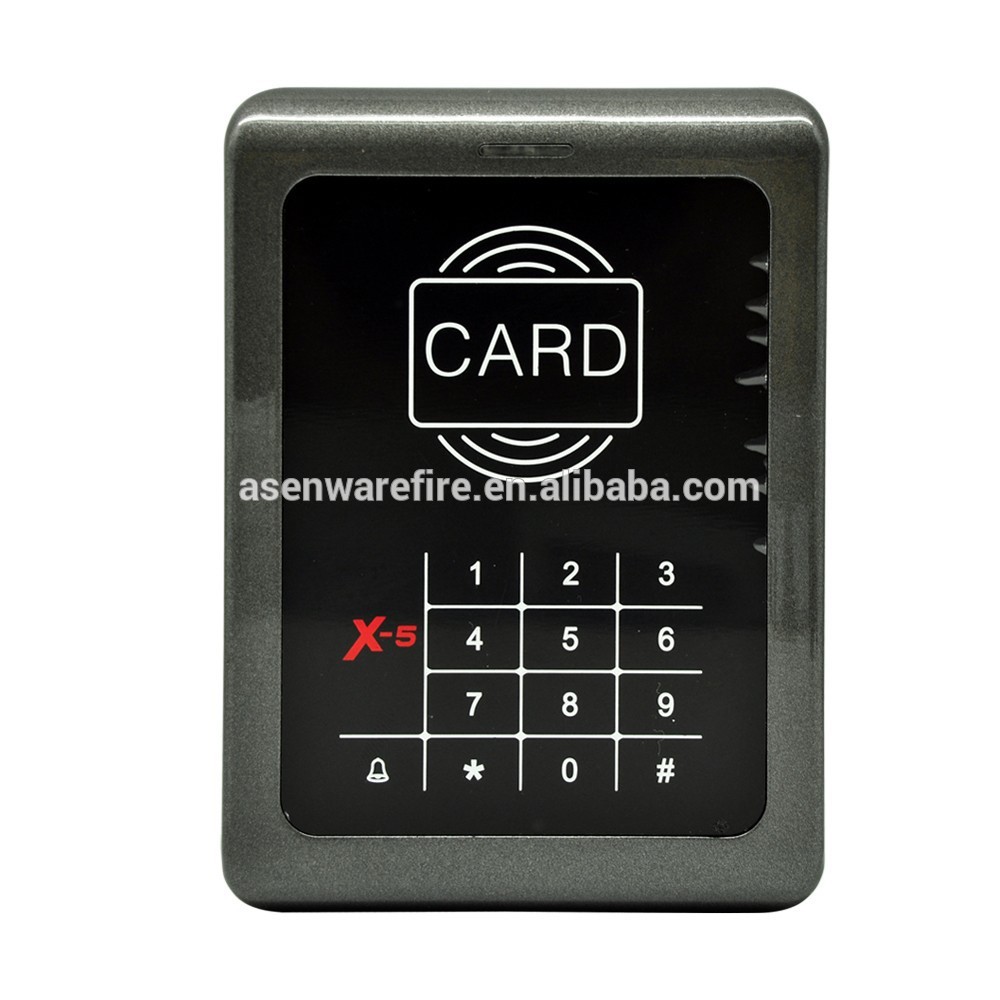

A single door machine
voltage | DC+8V—+15V |
current | ≤70mA |
Working temperature | -10℃—70℃ |
frequency | 125KHz |
A built-in reading head controller itself, can be an external a read head W26 | |
The password can be set up management to control the card number add and remove the card number | |
Out of the door switch:
boundary dimension | 86mm*86mm*20mm |
standard structure | Fireproof material mixed resin |
behaviour of electricity | Most durable current 3 a 36 VDC |
OWNA | NOCOM |
Durability test | One hundred thousand times aging test qualified |
application type | Apply the hollow frame and embedded type electric appliance box use |
applicable temperature | -10~+55℃(14-131F) |
Operating Humidity | 0~95% |
Panel processing | Fire prevention materials off surface treatment |
product weight | 0.07kg |
packing quantity | 100 |
Entrance guard dedicated power supply:
voltage input | 240V |
incoming frequency | 50-60 |
output voltage | DC12V |
output power | 30W |
electricity | 3A |
ripple voltage | Up≤50mV |
voltage accuracy | ±1% |
insulation resistance | ≥50MΩ |
operating ambient temperature | -20/50℃ |
Time delay adjustment range | 0-15S |
Opened the door remote control distance | 50-100M |
weight | 0.4kg |
external dimension | 120×95×38mm |
Electric strike:
stretching resistance | 250Kg |
size | 150 X 28 X 21 mm |
range of application | Applicable to any box door, fire door |
Normally closed working current is 120 ma | |
Normally open working current is 240 ma | |
The wireless remote control door switch:
The wireless remote control switch is divided into the receiver and transmitter |
The receiving end of 12 VDC power supply |
O NO/NC/COM dry contact signal |
Can directly pick out of access control host switch interface |
Can also pick up PUSH &gnd dedicated power supply |
ID Keychain:
Big coil, TK4100 chip, than an ordinary card from 1 to 3 cm, no bad card |
Application:
Access control and safety management system is a new modern safety management system, it is an effective measure to solve the inward and outward safety management. Apply to all kinds of confidential departments, such as bank, hotel, office, computer room, the armory, confidential room, intelligent community, factory, etc.

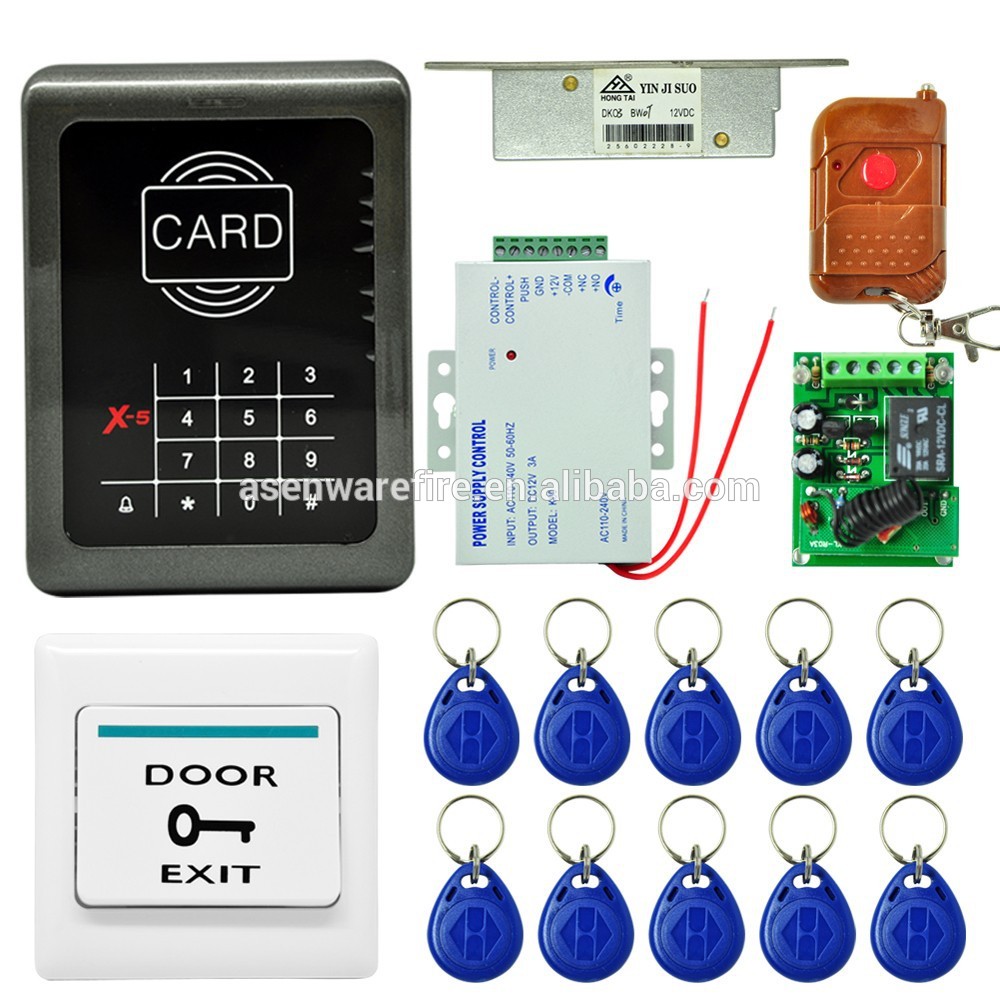

Package Content:
1 x The entrance guard host
1 x Out of the door switch
1 x The wireless remote control door switch
1 x Entrance guard dedicated power supply
1 x Electric strike
10 x ID card
Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company).
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.
Wiring diagram:
Exhibition hall:
Certificates:
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate:LPCB(Applying) / CE / ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
