Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company).
We have 3 series fire alarm control systems with time-tested performance: 1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels. 2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses. 3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.

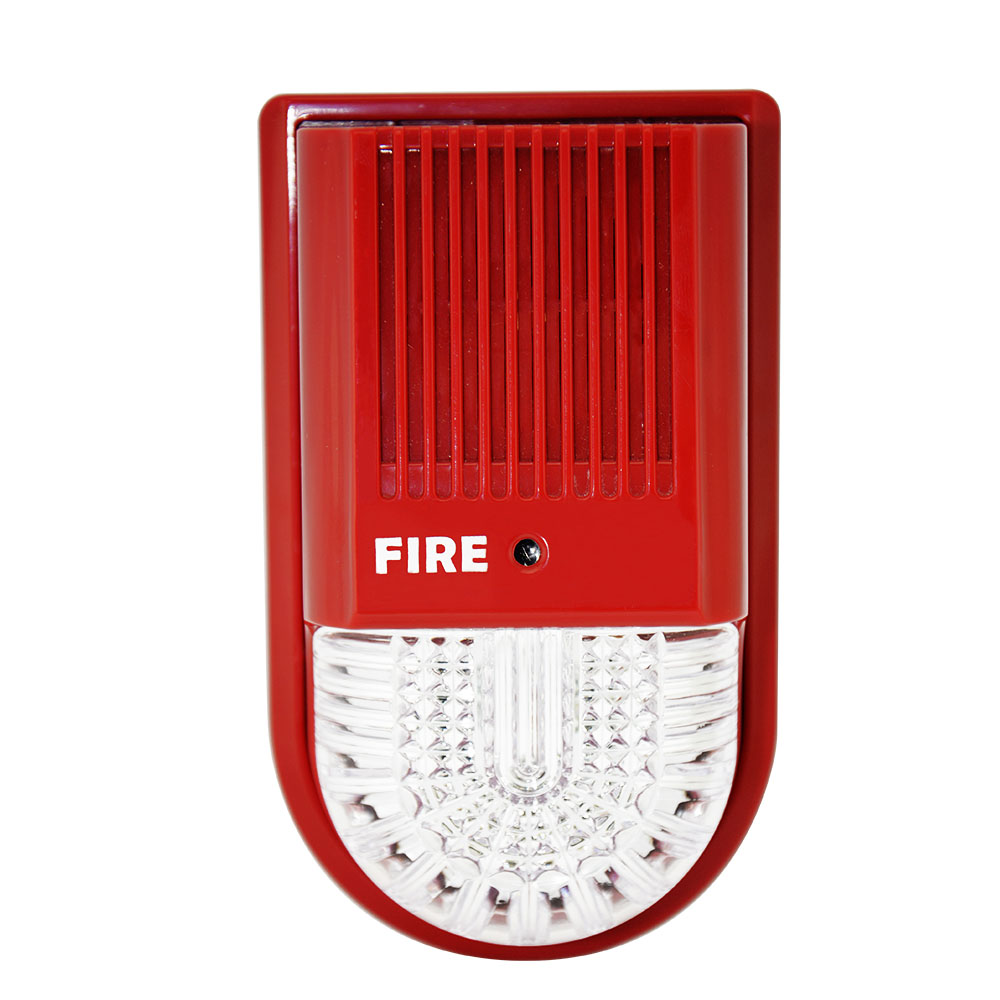

1). Product overview of Fire Alarm Siren/Sounder Strobe Light AW-ASS2188 :
The AW-ASS2188 addressable hooter/horn(hooter/horn for short) is a kind of product manufactured by our company to be used with bus-type fire alarm control units.
Controlled by a microprocessor, the hooter/horn can realize real-time communication with a bus-type fire alarm control unit and receive the control commands sent by it. When in a routing inspection, the red status indicator will blink; after an accident happens, the hooter/horn will start to operate after receiving a startup command from the bus-type fire alarm control unit. The red status indicator will remain lit and the hooter/horn will give a flashing signal and an audible alarm signal to notify the persons on the scene of the accident that a fire has occurred on the site and of the necessity to take related evacuation measures, thus preventing the fire accident from becoming a major one.
The hooter/horn may be restored to the monitoring status after the MUTE or RESET key on the bus-type fire alarm control unit is pressed. The hooter/horn may be used to give audible alarms and flashing alarms on the scenes of accidents. It is suitable for places like high-rise residential buildings, public places, hotels, amusement buildings, factories, shopping centers, hospitals, schools, office buildings and stock exchanges, particularly places with low visibility or the possibility of generation of smoke.
2). Technical parameters of Fire Alarm Siren/Sounder Strobe Light AW-ASS2188:
| Executive standard: | GA385- 2002 |
| Operating voltage: | DC24V (pulse modulation) |
| Operating current: | quiescent current: ≤1mA (the current consumed by the bus); alarm current: ≤120mA@DC24V |
| Operating environment: | Temperature: -10°C~+55°C; relative humidity: ≤95% (40°C, without condensation) |
| Flushing rate: | one time/s |
| Alarm volume: | >85dB (measured at a place 3m in front of the hooter/horn) |
| Coding method: | Electronic coding |
| Wiring method: | Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND) |
| Matched host machine: | fire alarm control panel (such as AW-AFP2188) |
3). Product features of Fire Alarm Siren/Sounder Strobe Light AW-ASS2188:
1). It can realize complete electronic coding and in situ rewriting with the help of a coder.
2). The audible alarm and flashing alarm may be set freely. In other words, the hooter/horn may give an audible alarm and a flashing alarm at the same time or separately and it can be adapted to different working environments.
3). Designed with an upper cover and a lower cover, it can be installed, debugged and maintained conveniently.
4). It uses multiple super bright red LEDs as light sources for visual display, ensuring a striking display, a longer service life and low power consumption.
75PCS / box. Weight: 16.1 KG. Size: 49*47.5*38.5CM
Addressable Optional Accessories:
Exhibition hall:
Certificates:
Wide Application:
1. Presales: we have independent R&D center which can offer free technical support and project budget.
2. Sales: 24-hour online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
1. Payment terms: T/T, L/C, Western union,Money Gram.
2. Delivery time: Usually about 2 to 5 days.
3. Warranty: One year
4. Certificate: LPCB(Applying) / CE / ISO9001
5. Technical support: Yes
