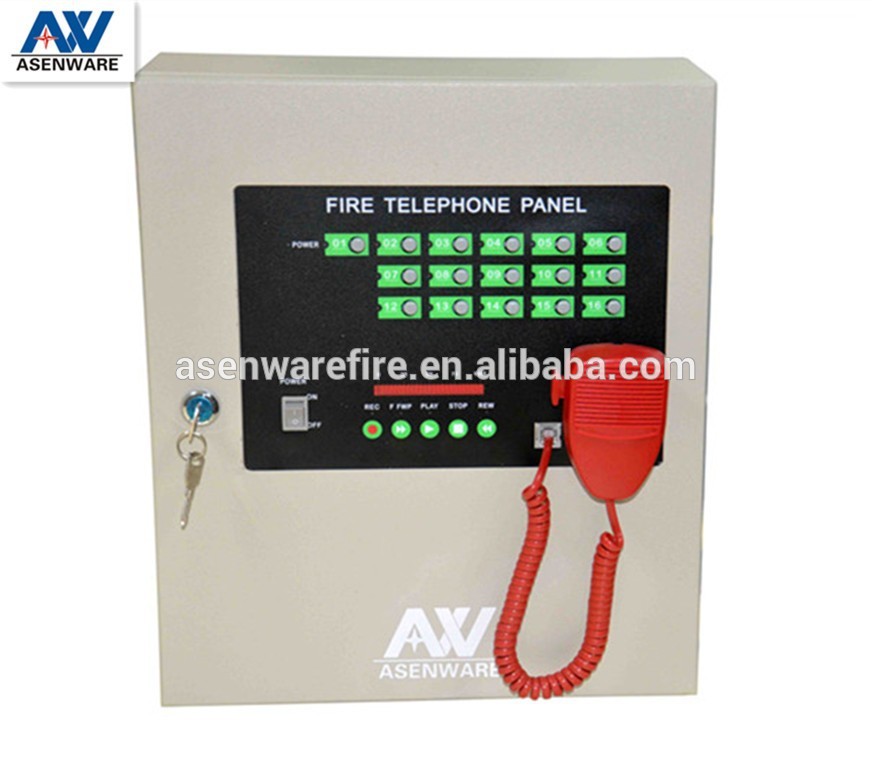

1,Features of Fire Protection Telephone System AW-FTP2008:

1.1 AW-FTP2008 fire telephone panel is a new fire special communications equipment, when the fire accident, which provides a convenient means of communication, the fire control and alarm systems necessary communications products. Wall-mounted structure, easy to install, suitable for small systems.
1.2 The device is composed of a star switchboard fire communications systems. You need to connect an extension before the composition of the fire alarm communication systems. Extension is a dedicated co-electric fire telephone or regular telephone.
1.3 When the device goes off-hook extension audible alarm. When the extension with the switchboard call, the corresponding extension indicator light, stop the sound and light alarm
1.4 The device can simultaneously call multiple extensions. Each extension can be inserted at any time or to exit.
1.5 The device uses a digital recording, reliable, durable and automatic recording for each call.
1.6 All keys are used on the device panel touch keys, feel good, beautiful, reliable and durable.
1.7 This equipment working conditions: temperature of 0 ~ 40 ℃, relative humidity
40% ~ 85%, no vibration.

2,Technical indicators of Fire Protection Telephone System AW-FTP2008:
2.1 Power Supply: AC 220V 50Hz or DC 24V
2.2 AC Current: ≤0.5A
2.3 Extension loop resistance (including telephone resistance): not more than 1000 Europe
2.4 Frequency Range: 300 ~ 3400Hz (± 3 dB)
2.5 Crosstalk level: less than -60dB (600 ohm load)
2.6 Transmission attenuation: less than 5dB

2.7 Dimension:385mm × 330mm × 120mm

2.8 Gross Weight:4.15kg

2.9 Panel Capacity:8 zones.

3,Installation instructions of Fire Protection Telephone System AW-FTP2008:
3.1 Installation: After the machine is removed from the box, first check the machine from the appearance of ministries
Points is good, good confirmation is correct, the machine installed in the proper position, the cable is installed on the terminal block assembly corresponding terminals inside the machine.
3.2 The power of this unit of work required by the standard polarity on (power input terminals are installed inside the machine) terminals. Note To put the "off" position (on the pass, the next off) Connect the power cord at the power switch.
3.3 Confirmed that the wiring is correct and correct turn on the power switch, this time, "Power" on the front panel LED is lit, the machine is working properly.
3.4 Host call a certain extension, press the appropriate extension button, then the corresponding red LED flashes, host to the extension rings, extension rings, the host of the handset should hear a ringback tone, an extension hook, indicating lights lit, the two sides can talk. After the host calls the extension, if the extension goes off-hook before this extension and then click this button to stop the ringing extension, the corresponding LED is off, stop calling this extension. This machine is eight telephone hosts, 9 to 16 keys on the front panel is invalid.
3.5 Automatic call recording: each time a call, a digital recorder for automatic recording conversations. Call ends, stop recording automatically.

3.6 Host Call multi-part machine: Press the button multiple extensions, call multi-part constitutes the host machine. These extensions of status indicator flashes, the host of these extensions ringing. For a station answering machine, the host can talk with the extension, the rest of the machine does not move extension continue to ring. If a long extension should not call, then click the extension button to terminate the call to this extension. In the host and multi-channel extension call, press one or more extension key, you can force these extensions to exit a call, to exit the extension can hear a busy tone. If an extension has not yet hang time and press this extension key again to resume the conversation with this extension. The host can always call during a call to another extension.
3.7 Extension Call Host: Extension For machine can hear the ringback tone, then the host sends the alarm sound, host panel extensions corresponding indicator light flashes, press this button to call the extension, the extension indicator light. At this point if there is no other extensions lift machines, sound and light alarm sound stops.
3.8 Automatic 119: Internal leave local telephone terminals, connect local telephone line (outside), press the "Auto 119" key, you can automatically call out the line of fire 119, such as busy, you can press this button again until the call through so far. After switching the operator can hold the microphone and call firefighters.
3.9 Foreign Broadcast: Inside the machine, a pair of audio output terminals, host, or an extension of the conversation through this terminal outputs audio through an external amplifier to foreign broadcasts.
3.10 The operator should carefully read the manual of the equipment, according to the manual operation to ensure the device is in normal operation.

4,Digital Recorder Use of Fire Protection Telephone System AW-FTP2008:
4.1 machine as a digital recorder, no wear, no mechanical noise, low failure rate, record, playback loud and clear, safe and reliable, and power outages voice is not lost. Sound recording time is 16 minutes.
4.2 Instructions for use:
1) Recording display: Recording indicator for light bar, boot lights left of the first one, that is the starting position. In the recording process, each after 40 seconds, the display right one, when moved to the far right, that has full, then if they continue recording, will erase the original content from scratch recording (ie, loop recording) .
Automatic recordings: once per call, a digital recorder for automatic recording conversations. Call ends, stop recording automatically. You can also press the "Stop" button to end the automatic recording in the process.
2) Operation: When the two sides did not call, press the "record" button for 2 seconds, the recording indicator light, manual wiping sound condition, illuminated light bar moves to the right from the current position. When moving to the far right, if they continue to wipe sound, will start from scratch. Click the "play" button, the playback indicator lights lit light bar moves from the current position to the right (ie, manual playback). In the record, playback process, you can press at any time click the "Stop" button to end the operation.
Press the "fast forward" or "rewind" button, the corresponding indicator light, perform the corresponding operation, operation with ordinary tape recorder as easy.
