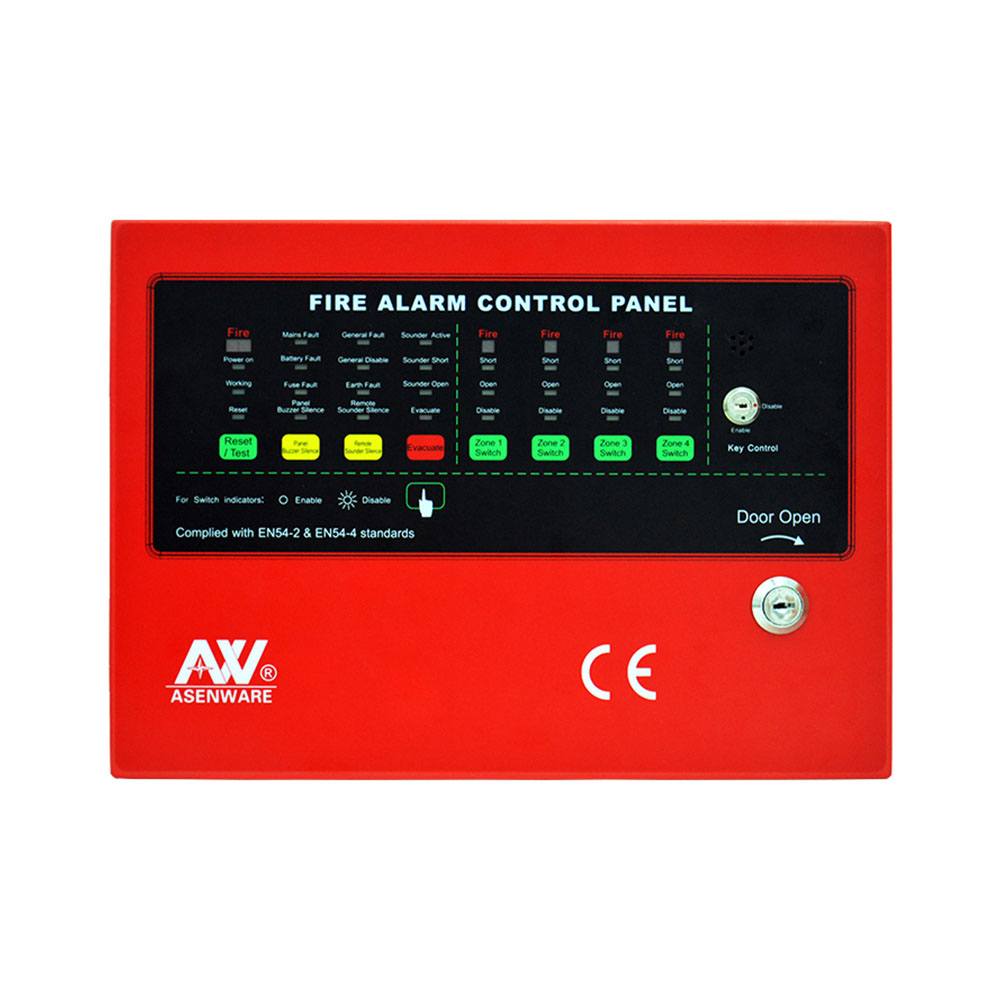

ASENWARE unique technology fire alarm panel conventional 1-32zones
1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4
standard.
2. It is modularized design, the panel can expend from 1 zone to 32 zones easily .
3. It has 2 level control mode by a lock
4. It has 27VDC power supply output.
5. It has FIRE PROTECTION, FIRE ROUTING and FAULT signal output, the output can be
configured to dry relay type or wet sources type.
6. It has 2 channel general sounders output.
7. Each zone has 1 circuit detectors input .
8. Each zone can be disable by a button.
9. It has RESET button to reset the panel.
10. It has SILENCE button to stop BUZZER and SOUNDERS.
11. It has EV ACUATE button to start a manual fire alarm immediately .
12. It has TEST button to test all LEDs orderly.
13. It has battery low protection function, when battery voltage lower than 21VDC, battery will
be cut off automatically until the mains power is on.
14. It has an optional GSM module for fire alarm by SMS .
15. It is economic, user-friendly and easy maintenance.
Conventional fire alarm panel Parameters:
fire alarm systems control panel Connect draw:
