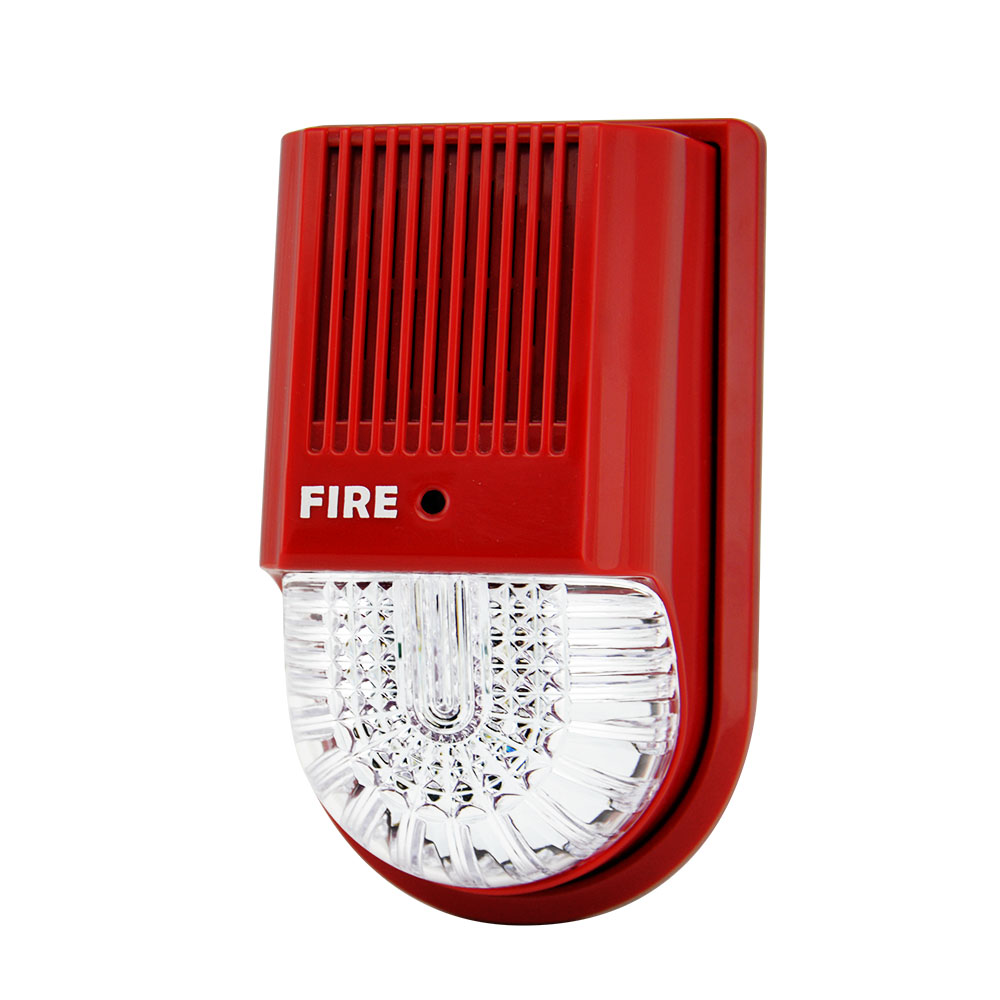

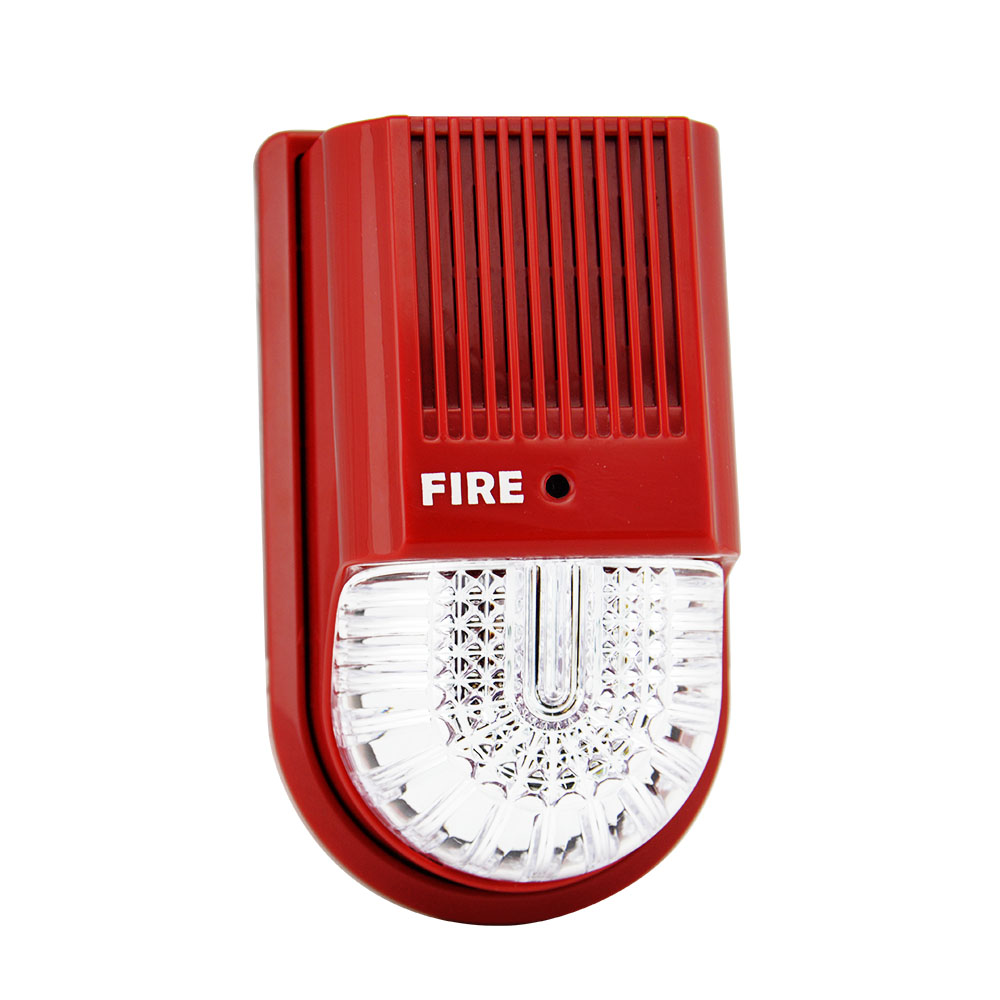

Fire alarm systems addressable smart sounder and strobe
addressable strobe horn/hooter specification:
1. Executive standard: GA385- 2002
2. Operating voltage: DC24V (pulse modulation)
3. Operating current: quiescent current: ≤1mA (the current consumed by the bus); alarm current: ≤120mA@DC24V
4. Operating environment: Temperature: -10℃~+55℃; relative humidity: ≤95% (40℃, without condensation)
5. Flushing rate: one time/s
6. Alarm volume: >85dB (measured at a place 3m in front of the hooter/horn)
7. Coding method: Electronic coding
8. Wiring method: Four-wire system, non-polarity two signal buses (L1, L2) and power lines (+24V, GND)
9. Matched host machine: fire alarm control panel (such as AW-AFP2188)
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Advantage of our factory and services
1) ISO certified factory with 8 years professional experience and alibity to accept and
fulfill ODM/OEM orders.
Includes:
The initial design service of appearance, structure and electronic parts
Mould opening
Sampling
Semi-products testing and supply
Mass Production for formal orders
We also can quote very quickly as customer provided samples for OEM service.
2) Flexible technicals adjusting and technical support as per customer" s special request.
3) Answer your enquiries, questions and emails in 24 hours
4) Direct control on material, testing, quality, leadtime etc.
