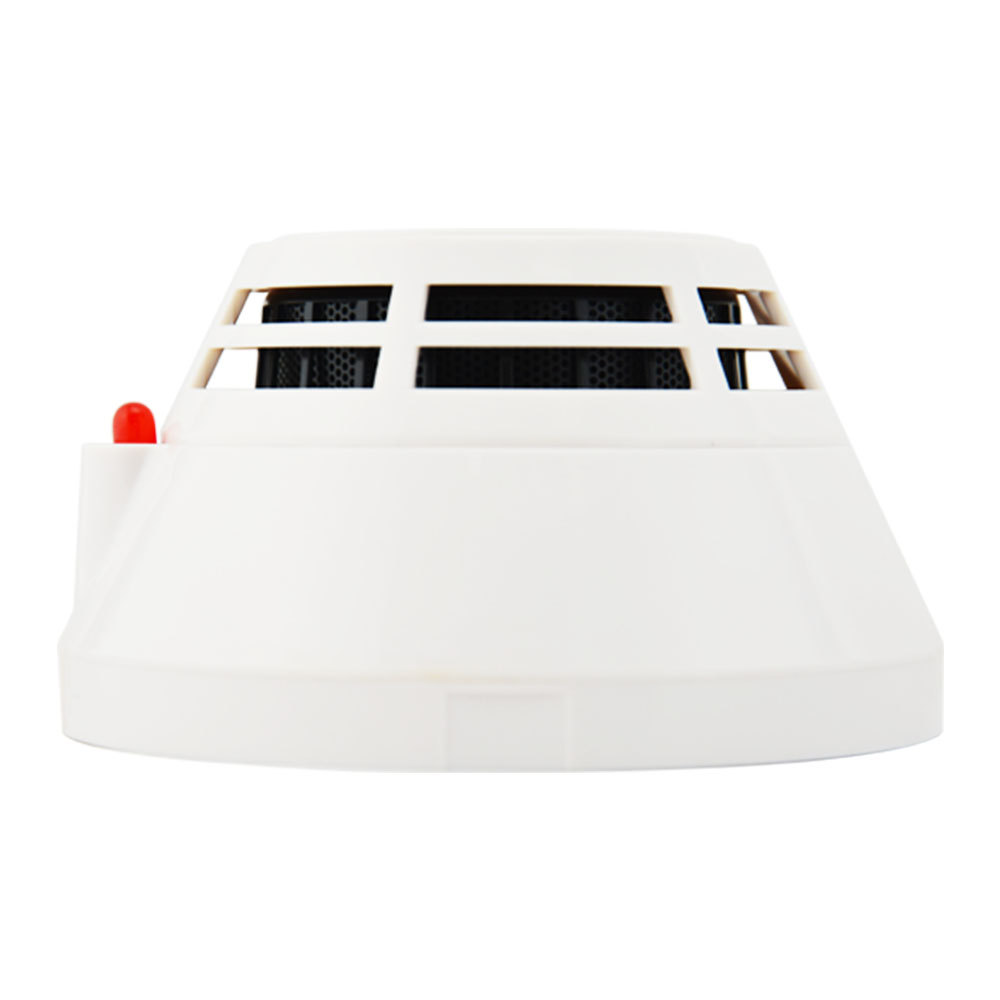

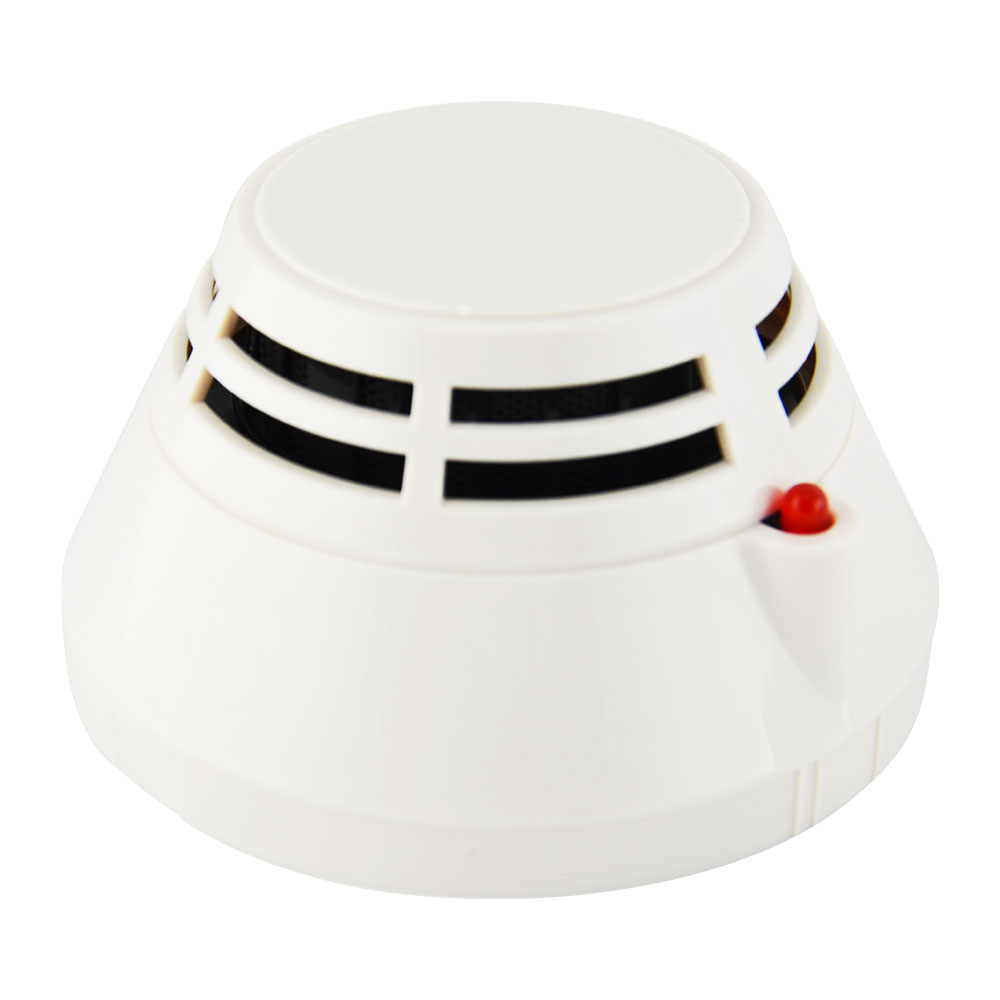

Dual leds conventional 24v heat detector for fire alarm systems
Conventional heat Detector Specification:
| Operating Voltage Range | 9 to 28 VDC Volts Non-polarized |
| Standby Current | ≤60µA@24VDC |
| Maximum Alarm Current | ≤30mA@24VDC |
| (LED on) | (1K Ohm current-limiting resistance) |
| Operating Humidity Range | ≤95%RH(40°C±2°C)Relative Humidity, Non-condensing |
| Operating Temperature Range | -10°C to 50°C (14°F to 122°F) |
| Smoke Alarm Sensitivity | 0.15-0.3dB/m |
| Temperature Alarm | 57°C (135°F) A1R |
| Sensitivity | (only for with heat sensor) |
| Height | 48 mm installed in Base |
| Diameter | 99 mm |
Conventional heat Detector Diagrams
