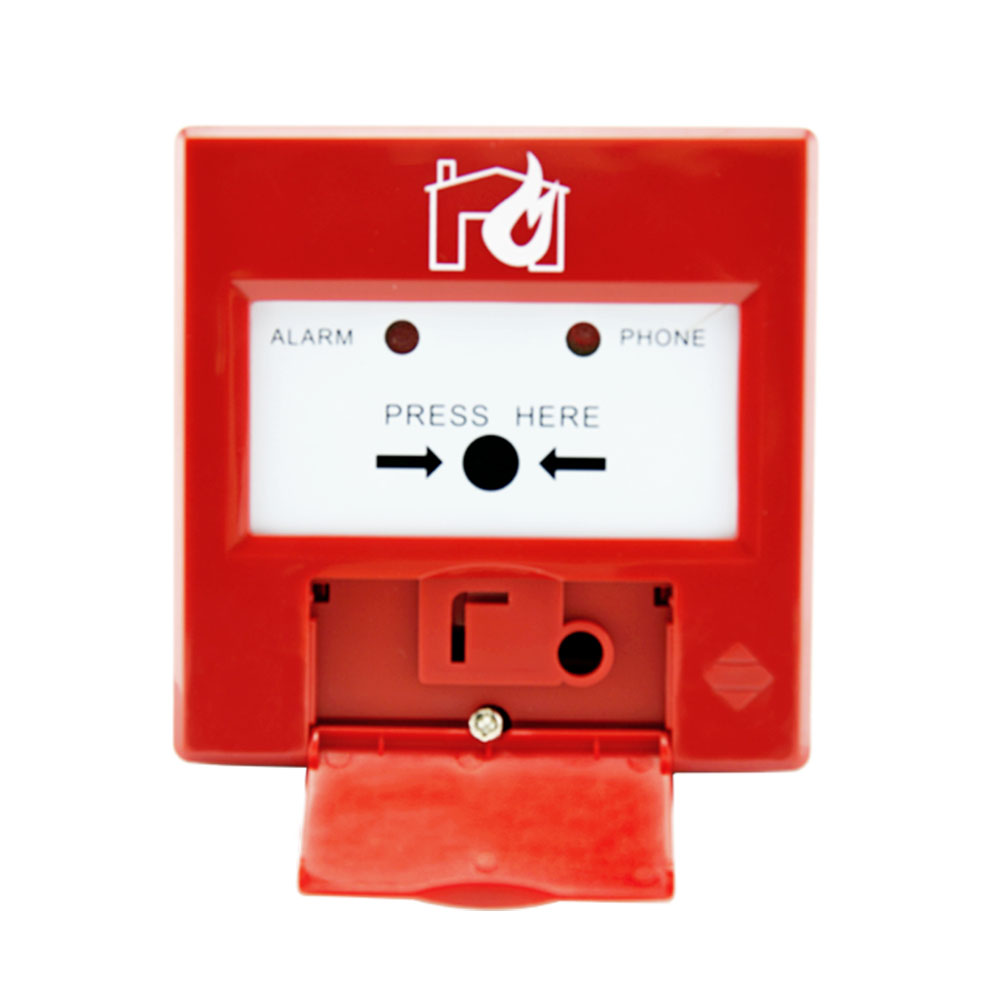

DC24V Addressable Manual Call Point(MCP) Widely Used for Addressable Fire Alarm System
Addressable manual call point Technical parameters:
1. Executive standard: GB19880-2005
2. Operating voltage: 24V (pulse modulation)
3. Operating current: <300uA (in the monitoring status); <2mA (in the action status)
4. Output contact: Normally open contact; capacity: 0.1A/30VDC
5. Weight: About 120g
6. Wiring method: nonpolar two-bus system (L1, L2)
7. Operating environment: Indoor, temperature: -10℃~+50℃; relative humidity: ≤95% (40℃±2℃, without
condensation)
8. Coding method: It can realize online coding with the help of a coder and without the necessity of
disassembling the bus (however, the equipment must be powered off). Address codes 1 to 324 are available
for selection.
9. Telephone jack: Two- wire fire telephone jack (equipped with a standard F6.3 single-track audio connector).
10. Starting part: A plastic pressing sheet that may be used repeatedly. It can be manually reset with a special
tool after being pressed.
11. Starting mode: Press the pressing sheet manually.
12. Indicator: The red ALARM indicator will blink in the inspection status or remain lit in the alarm status; the
PHONE indicator will blink when a fire telephone loop is connected, otherwise it will be out.
13. Matched host machine: fire alarm control panel (such as AW-AFP2188)
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Advantage of our factory and services
1) ISO certified factory with 8 years professional experience and alibity to accept and
fulfill ODM/OEM orders.
Includes:
The initial design service of appearance, structure and electronic parts
Mould opening
Sampling
Semi-products testing and supply
Mass Production for formal orders
We also can quote very quickly as customer provided samples for OEM service.
2) Flexible technicals adjusting and technical support as per customer" s special request.
3) Answer your enquiries, questions and emails in 24 hours
4) Direct control on material, testing, quality, leadtime etc.
