Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company), was set up in 2006, the headquarter lies in London of UK. Now it has grown into an international group company in BMS and NDT industries.
The company has two wholly-owned factories: one is in Shenzhen city for BMS products, and the other lies in Dandong city for NDT X-ray products.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.
1. Brief introduction of Factory Newly Released Conventional Infrared Beam Smoke Detector :

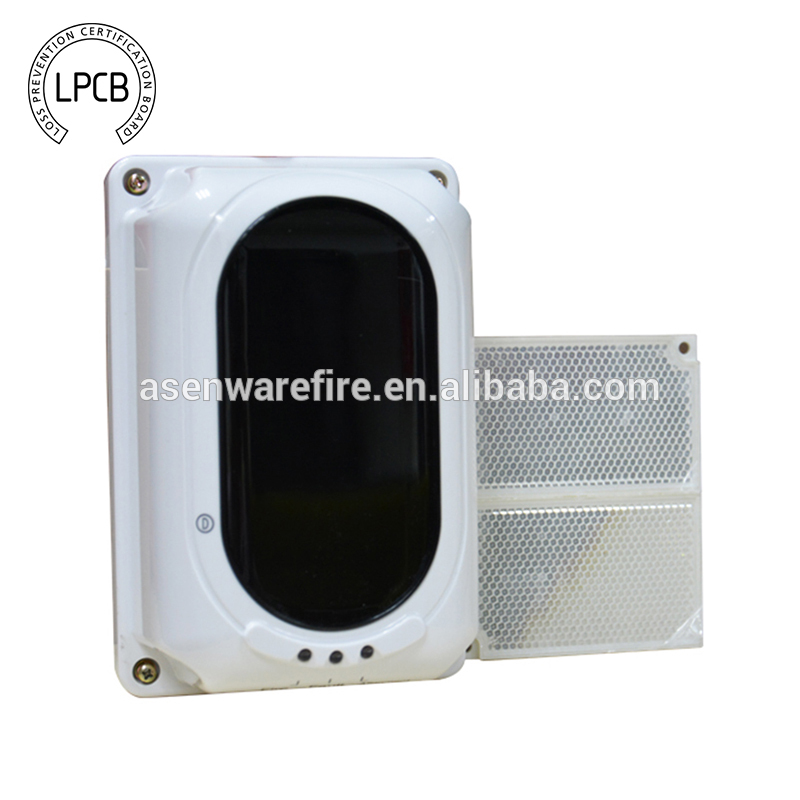

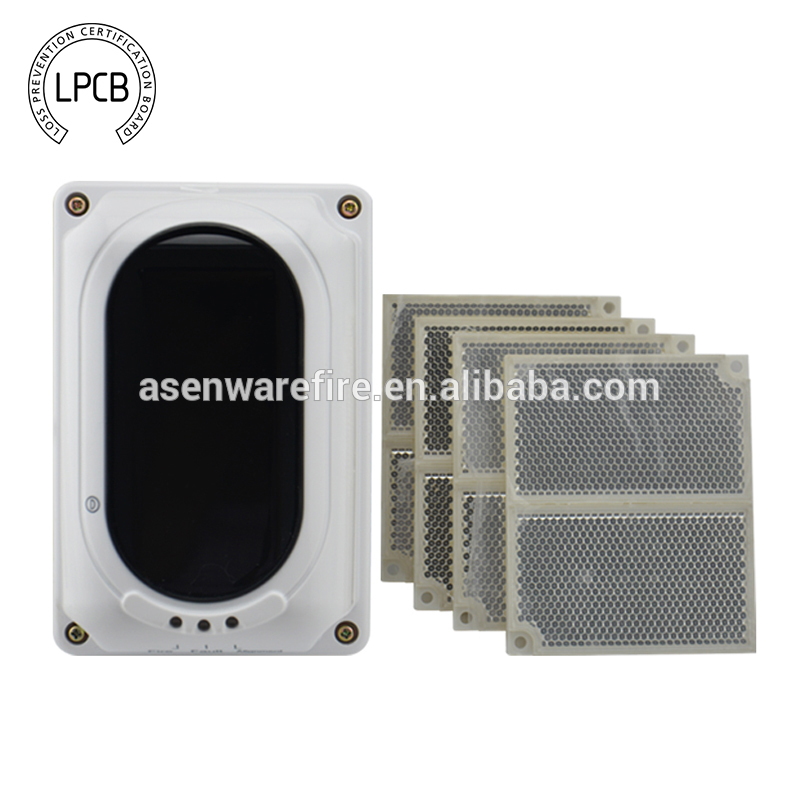

----AW-BK801 is a long-interval reflection line infrared beam smoke detector which must be used together with a reflector.
2. Application Places of Factory Newly Released Conventional Infrared Beam Smoke Detector:
----Warehouses, large-scale storage areas, shopping plazas,body-building centers, gymnasiums, exhibition halls, hotel halls, printing works, costume plants, museums, prisons, etc, as well as space with light smoke dust.
3. Working principle of Factory Newly Released Conventional Infrared Beam Smoke Detector:
----when the light reduction rate reaches the preset threshold, the detector will produce the alarm signal;
----when the light beam is completely blocked, the detector will produce the fault signal to prevent the false alarm caused by non-fire blockage.
4.The Technical Parameters of Factory Newly Released Conventional Infrared Beam Smoke Detector:
| Name | Beam Smoke Detector | Monitor Range (meter) |
| Model NO | AW-BK801 | |
| Operating Voltage | DC16V~DC32V | 0 - 40 |
| Adjusting Angle: | -6 DEG ~+6 DEG | |
| External Dimensions: | 206mm×95mm×95 mm | 40-70 |
| Light path Length | 8m~100m | |
| Weight | 450g | 70-100 |
5. Characters and Advantages of Factory Newly Released Conventional Infrared Beam Smoke Detector:
1. Has a built-in uniprocessor with excellent performance;
2. Wide operating voltage range and wide protective area
3. Self-diagnosis capability, monitoring of faults in the detector
4. Field setup of two levels of sensitivity
5. Built-in microprocessor, intelligentized fire alarm and fault judgment
6. Fire alarm and fault passive output contacts and standard 4-20mA standard power supply output
7. Smart design of the detection light path, high antijamming performance, seal protocol, corrosion protection and waterproof performance
8. Integration of the transmitting part and the receiving part, simple and convenient installation, good light path collimation
9. Automatic compensation function, and automatic compensation for factors of received signal reduction such as dust pollution, position deflection, ageing of the transmitting tube, etc. to some extent
10. Automatic calibration function to enable a single person to complete debug within a short time, simple operation, easy integration of the transmitting part and the receiving part, simple and convenient installation, good light path collimation
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
