High Sensitivity Conventional Photoelectric Smoke Detector With Relay Output
Click on the image to view the original image
Product: views:1High Sensitivity Conventional Photoelectric Smoke Detector With Relay Output
Branch: ASENWARE
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 18:32
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ASENWARE
Model Number:
AW-CSD311
Item::
2 Wire Conventional Photoelectric Smoke Detector for Fire Alarm
After-sales service::
Yes
Installation::
Wall-mounted
Design::
OEM/ODM
Color::
Ivory White Color or as customized
Occasion::
Home, commercial buildings, etc.
Package::
Standard safety export package / carton (Box + Foam) or as customized
Shipping way::
By air/by sea
Certificate::
CE SGS ISO9001
Matched host machine::
Fire Alarm Control Panel
Supply Ability
Supply Ability:
10000 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard safety export package / carton (Box + Foam) or as customized
Port
Shenzhen

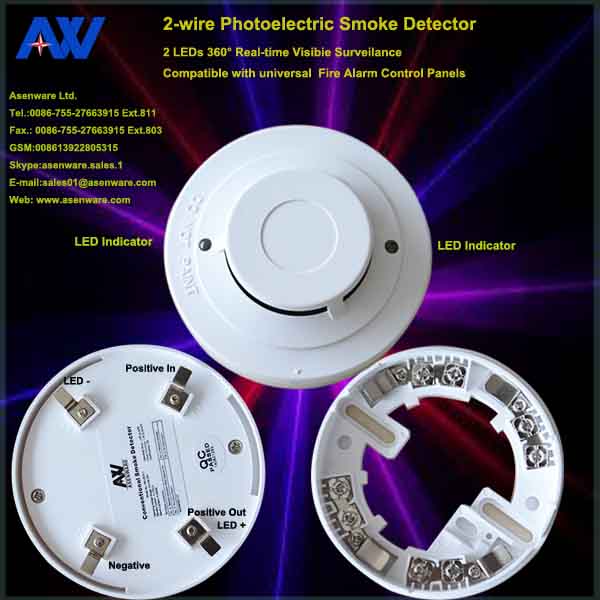

High Sensitivity Conventional Photoelectric Smoke Detector  With Relay Output

Universal Compatible  Optical Smoke Detector

1.  Models AW-CSD311 is photoelectronic detector useing a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel.



2. Two LEDs on each detector provide local 360° visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The alarm can be reset only by a momentary power interruption.

 3.Parameters of 2 Wire Conventional Photoelectric Smoke Detector for Fire Alarm :

  High Sensitivity Conventional Photoelectric Smoke Detector  With Relay Output

Item of smoke detector

Parameters  of smoke detector

Operating Voltage Range

9 to 32 VDC Volts 12V/24V

Standby Current:

≤100µA @ 24 VDC

Maximum Alarm Current (LED on:)

≤55mA @ 24 VDC

Operating Humidity Range:

10% to 93% Relative Humidity, Non-condensing

Operating Temperature Range:

14°F to 120°F (-10°C to 49°C)

Adjustable Sensitivity:

1-2.5%/FT

Height  of smoke detector

2.2" (55 mm) installed in Base

Diameter  of smoke detector

4.0" (103 mm)

Weight  of smoke detector

5.5 oz. (155 g)

Company Information

  High Sensitivity Conventional Photoelectric Smoke Detector  With Relay Output

Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company), was set up in 2006, the headquarter lies in London of UK. Now it has grown into an international group company in BMS and NDT industries.



The company has two wholly-owned factories: one is in Shenzhen city for BMS products, and the other lies in Dandong city for NDT X-ray products.



A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfied service.



Packaging & Shipping



Our Services

1. Pre-sales: Professional and experienced R&D center can offer free technical   support  and project budget.

2. Sales: All-around and all-weather online prompt reply as well as  standard    quotation.

3. After-sales: one year warranty and technical maintenance.

  High Sensitivity Conventional Photoelectric Smoke Detector  With Relay Output

    High Sensitivity Conventional Photoelectric Smoke Detector  With Relay Output

FAQ

1. All-round technical support: Yes

2. Warranty: One year

3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.

  High Sensitivity Conventional Photoelectric Smoke Detector   certification:

  High Sensitivity Conventional Photoelectric Smoke Detector  With Relay Output
