MANUAL CALL POINT,glass break glass manual fire alarm call point
Specification of fire alarm manual call point
1. The AW-AMC2188 addressable manual call point is mainly designed to be used with an intelligent two-bus control panel.
2. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control panel which will,
after receiving the alarm signal, display the coded address and the equipment status of the manual call point.
3. When the manual call point is operating normally, the red indicator will blink; when there is a fire alarm,
it will remain lit.
manual call point adressable Basic introduction | |
Name | Addressable Manual Call Point |
Model | AW-AMC2188 |
Features | Reset key for resettable, Addressable |
Weight | 120g |
Matched Host Machine | Addressable Fire Alarm Control Panel AW-AFP2188 |

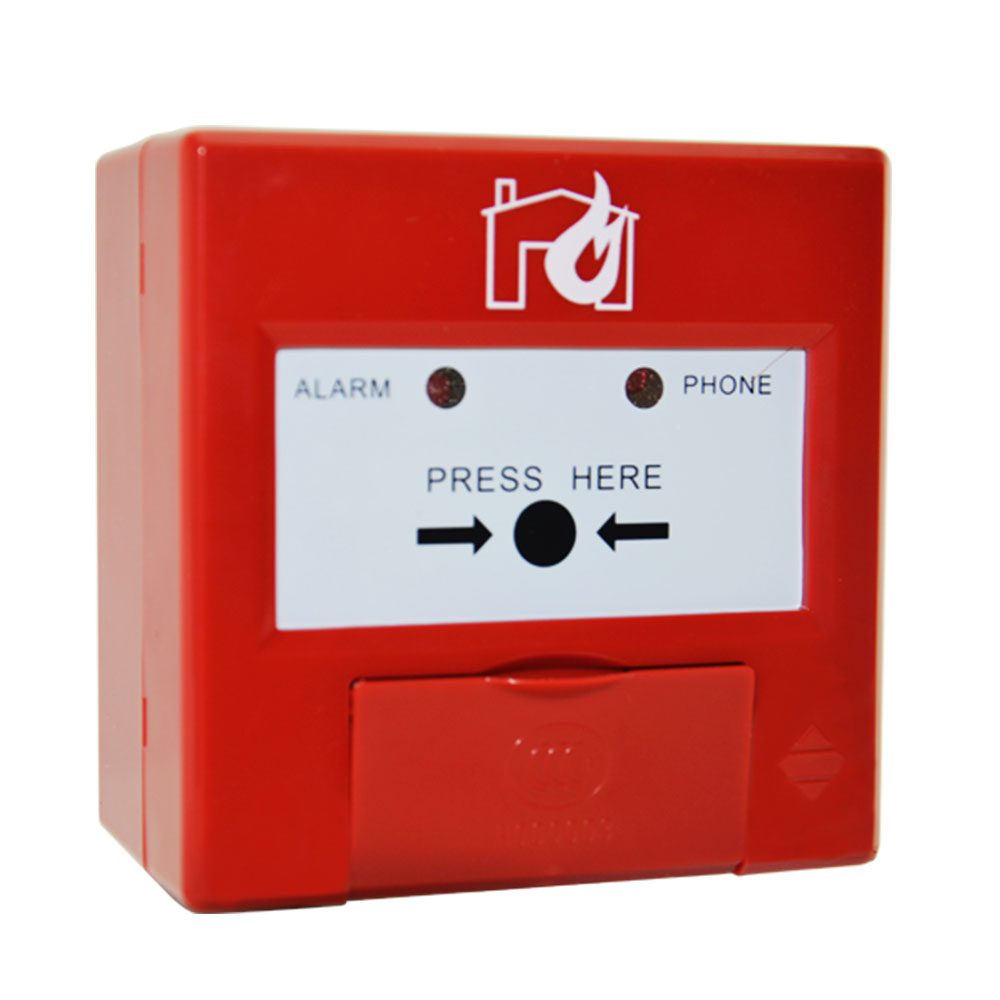

Manual call point and related products photo,
Manual Call Point Technical Parameters
Executive standard: GB19880-2005
Operating voltage: 24V (pulse modulation)
Operating current: <300uA (in the monitoring status); <2mA (in the action status)
Output contact: Normally open contact; capacity: 0.1A/30VDC
Wiring method: nonpolar two-bus system (L1, L2)
Operating environment: Indoor, temperature: -10°C~+50°C; relative humidity: ≤95% (40°C±2°C, without condensation)
Telephone jack: Two-wire fire telephone jack (equipped with a standard 6.3 single-track audio connector).
Starting part: A plastic pressing sheet that may be used repeatedly. It can be manually reset with a special tool after being pressed.
Starting mode: Press the pressing sheet manually.
Indicator: The red ALARM indicator will blink in the inspection status or remain lit in the alarm status; the PHONE indicator will blink when a fire telephone loop is connected, otherwise it will be out.
Packaing: regular packing or customized packing
Shipping:DHL,UPS,etc
1.Sample oder is welcomed to test our quality.
2.OEM,ODM service offer
3.1 year warranty and warmly afterservice
4.welcome visit our factory
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006,our headquarters is in London .
Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
We have an experienced R&D team to design special electric product for test and control usage.
Our aim"Try all our best to supply our customer qualitied products with best service."
Payment terms :T/T L/C Western union .
Delievry time :usually about 3 to 5 days .Bulk order will last ship out in three weeks .
Certificate :CE LPCB ISO9001
Technical support :yes
