Hot fire alarm host with smoke detector
Any question,contact sales skype:Asenware.sales09
Specification of gsm fire alarm control panel AW-CFP2166
Model | Conventional Fire Alarm Panel AW-CFP2166 (1-32 Zone) |
Matched | Conventional Smoke Detector/Heat Detector/Manual Call Point Fire alarm bell/Strobe horn/Flash light |
Working Environment | industrial and civil buildingsrestaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms, |
Benefits | wiring your building into different zones, economical |

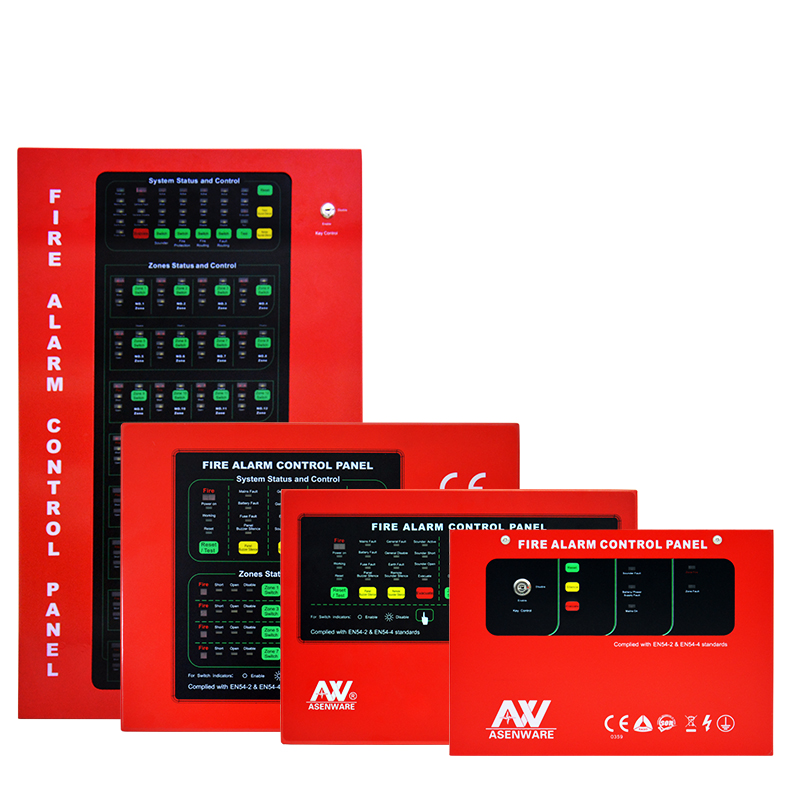

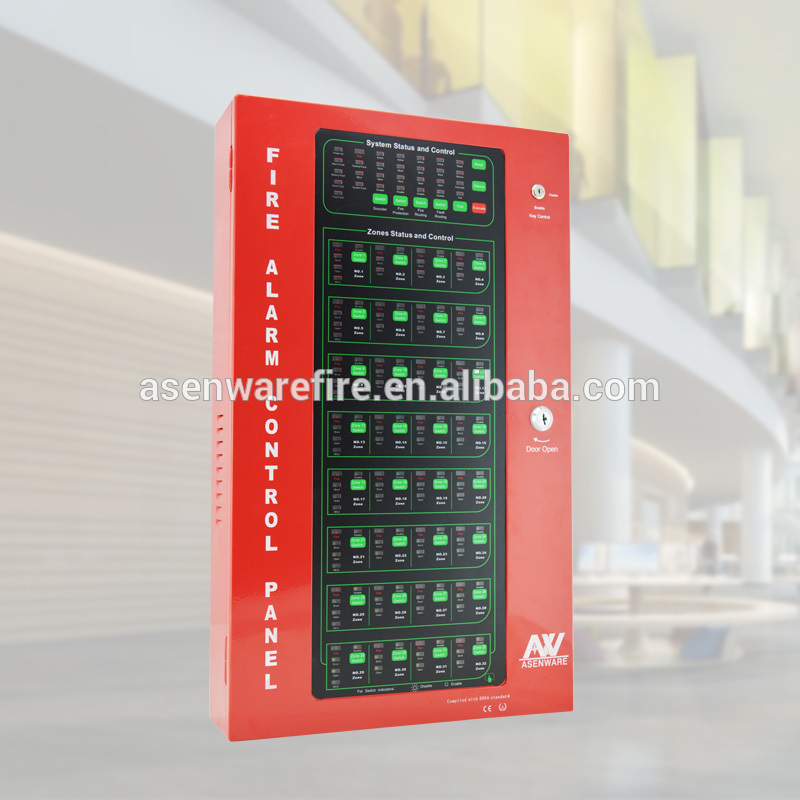

AW-CFP2166 fire alarm control panel and accessories photo details
Feature Of alarm control panel AW-CFP2166
1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2. It is modularized design, the panel can extend from 1 zone to 32 zones easily.
3. It has 2 level control mode by a lockIt has 24VDC and 5VDC power supply output.
4. It has FIRE and FAULT signal output.
5. It has 2 general sounders output.
6. Each zone has 1 circuit detectors input .
7. Each zone can be disable by a button.
8. It has RESET button to reset the panel.
9. It has SILENCE button to stop BUZZER and SOUNDERS.
10. It has EVACUATE button to start a manual fire alarm immediately.
11. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
12. It has an optional GSM module for fire alarm by SMS .
13. It is economic, user-friendly and easy maintenance.
Packaing: regular packing or customized packing
Shipping:DHL,UPS,etc
Certification
1)Sample oder is welcomed to test the quality.
2 ) Flexible technicals adjusting as per customer" s special request.
3) Answer your enquiries, questions and emails in 24 hours
4) Direct control on material, testing, quality, leadtime etc.
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have an experienced R&D team to design special electric product for test and control usage.
Our aim "Try all our best offer our customer satisfied items and service."
Payment terms :T/T L/C Western union .
Delievry time :usually about 3 to 5 days .Bulk order will be shipped out in three weeks .
Certificate :CE LPCB ISO9001
Technical support :yes
