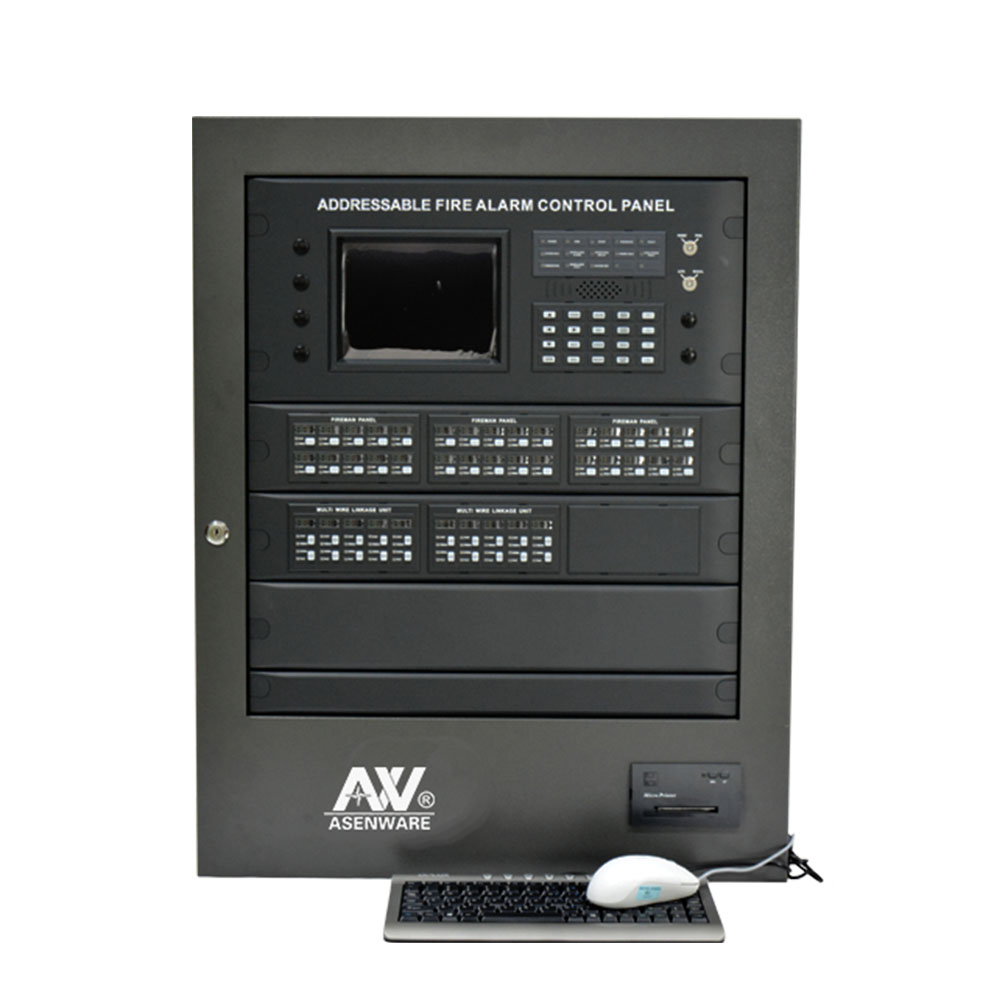

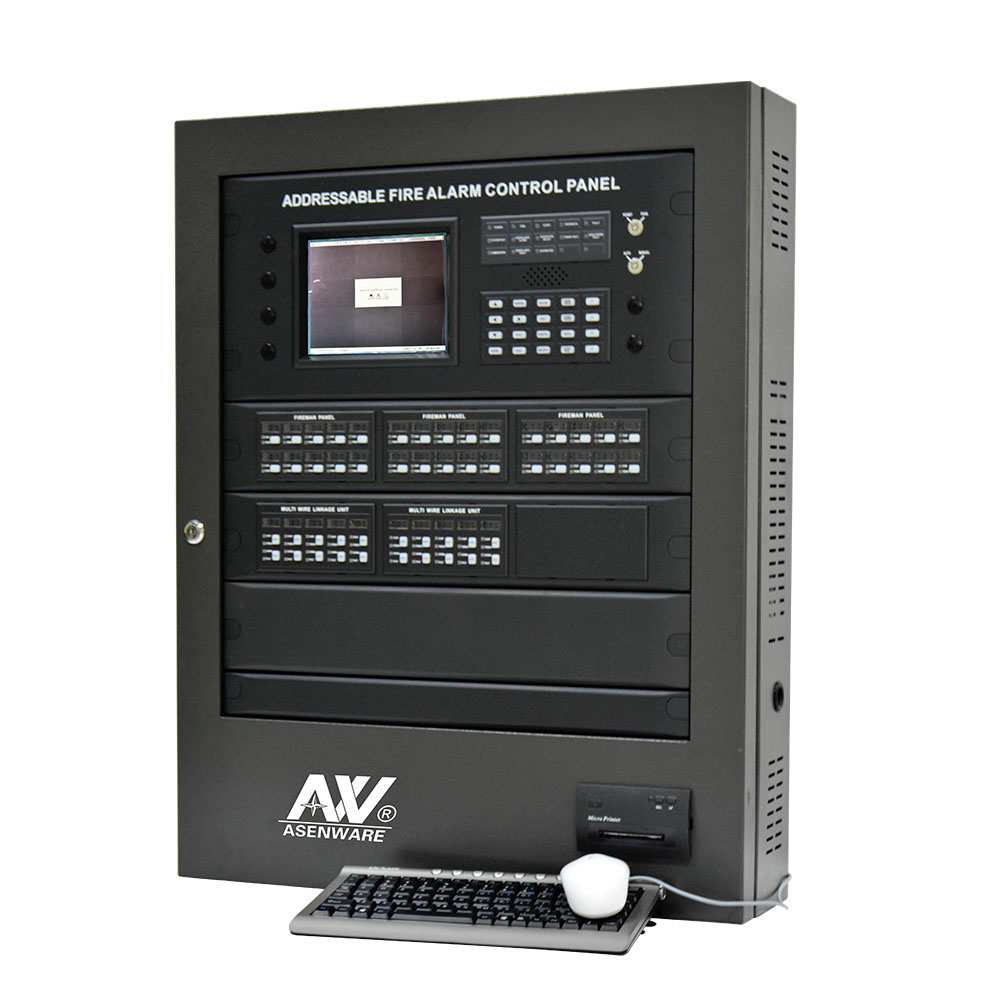

2100 fire alarm control panel with addressable IP by asenware
Any question,contact sales skype Asenware.sales09
Specification of adressable fire cotrol panel AW-AFP2100
> 32-bit MCU
> 2-wire communication between detector/module
> Each detector sensitivity adjustable
> Field-programmable with PS/2 standard PC keypad and mouse
>7.4" LCD back-lit display
>Windows menu and interface
>Chinese or English interface and panel display
>CF card duplicate or reset system setup file and history file to facilitate maintenance
>Communicate with PC via USB
>Single point start/stop of module (Menu operation)
>Single point test of detector/module
>Zone, building or floor display
>CRT visually display the location of fire and trouble
>Eleven users each with a password and selectable access levels
>Field software upgrade
>20 JB-QBL-2100 peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module
>Flexible collocation by modularized combination
Capacity of addressable fire control panel AW-AFP2100
>Each I/O-board has two loops, with 198 alarm/control points of each loop(Max. control points-99), the capacity of each I/O-board: 2x198=396(points);
>Each JB-QBL-2100 can connect maximum 3 I/O-boards, the capacity of each JB-QBL-2100: 3 x 396 = 1188(points). Over 1188 points, the wall mounted panel turn to cabinet panel, each cabinet panel can connect maximum 40 I/O-boards: 40*396=15840(points).
>Peer-to-peer with max. 20 JB-QBL-2100, system capacity: 20 x 15840 = 316800 (points).
>Multi-line Integrated Control/Monitoring capacity: Each JB-QBL-2100 wall mounted panel can have maximum 4000 points.
>Bus integrated control capacity: Each JB-QBL-2100 wall mounted panel can have maximum 4000 points.
Addressable fire control panel working process is as follows:
Packaing: regular packing or customized packing
Shipping:DHL,UPS,EMS,TNT,Fedex Express.etc
1.Sample oder is welcomed to test our quality.
2.OEM,ODM service offer
3.1 year warranty and warm afterservice
4.welcome visit our factory
Certifications:
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006,our headquarters is in London .
Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company which devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
We have an experienced R&D team to design special electric product for test and control usage.
We try all our best to offer our customers satisfied products and services.
Company address:
701 Room, Building 8, DongFangMing Industry Zone , DaBao Road No.83,
Baoan district No.33, ShenZhen city, Guangdong province
Office contact number:0755-27663915#830
We offer online services from 8:30 a.m to 5:30 p.m. Welcome you to contact us!
Payment terms :T/T L/C Western union .
Delievry time :usually about 3 to 5 days .Bulk order will last ship out in three weeks .
Certificate :CE LPCB ISO9001
Technical support :yes
