- Place of Origin:
- Guangdong, China
- Brand Name:
- Asenware
- Model Number:
- AFP-2188
- item:
- 324 addresses fire alarmdetector systems controller
- system type:
- addressable
- OEM,ODM:
- Yes
- Power:
- 120W
- Voltage:
- AC220V/110V 50Hz
- Display Screen:
- LCD
- Leadtime::
- 5-10days
- Shipping:
- sea, air,express
- Certificate:
- CE SGS ISO9001
- Agent Wanted:
- Yes
- Supply Ability:
- 100000 Set/Sets per Month
- Packaging Details
- standard carton
- Port
- shenzhen

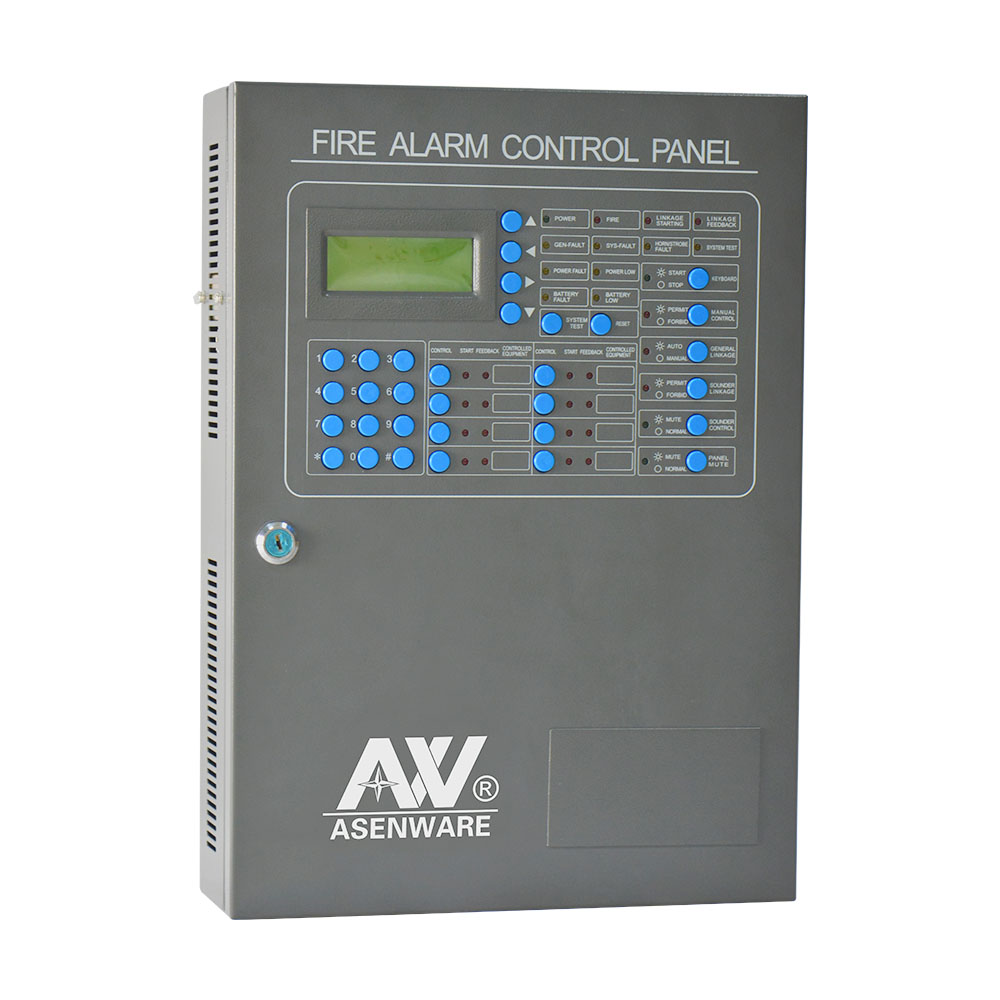

324 addresses fire alarm detector systems controller
The AW-AFP2188 fire alarm detection system is type of analog fire alarm control panel which has 324 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
1. Fire alarm control panel uses an AC-DC master-standby power supply system which will automatically change between the master and standby power supplies in the event of a power failure of either of the two power supplies to ensure uninterrupted operation of the system.
2. The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing. The AW-AFP2188 can be connected to floor fire display panels to display fire alarms by standard RS-485
3. The AW-AFP2188 fire alarm control panel can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment.
| Temperature | -10°C~+50°C |
| Humidity | ≤95% |
| Power supply | AC 220V 50HZ DC 24V 6A |
| Output contact capacity | AC 220V 1A DC 27.6V 3A |
| DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
| AC input voltage | AC 220V±20% 50Hz |
| AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |
324 addresses fire alarm detector systems controller connect draw:
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006, our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.
We are a technology oriented company that devotes to NDT(Non Destructive Test) and BMS(Building Management System) industries.
We have two factories : one factory is in Shenzhen city for BMS products, and the another is in Dandong city for NDT X-ray products.
In our BMS factory, we produce addressable and conventional fire alarm system, CCTV camera and DDC controller.
In our NDT X-ray factory, we produce portable and mobile NDT X-ray flaw detectors, X-ray analysis equipment and the dark room accessories.
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
1.Pre-sales:we have R&D center which can offer free technical support and project budget.
2.Sales:24 hour on line prompt reply,norm quotation
3.After-sales:1 year warranty,technical maintance
