Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company), was set up in 2006, the headquarter lies in London of UK. Now it has grown into an international group company in BMS and NDT industries.
The company has two wholly-owned factories: one is in Shenzhen city for BMS products, and the other lies in Dandong city for NDT X-ray products.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.

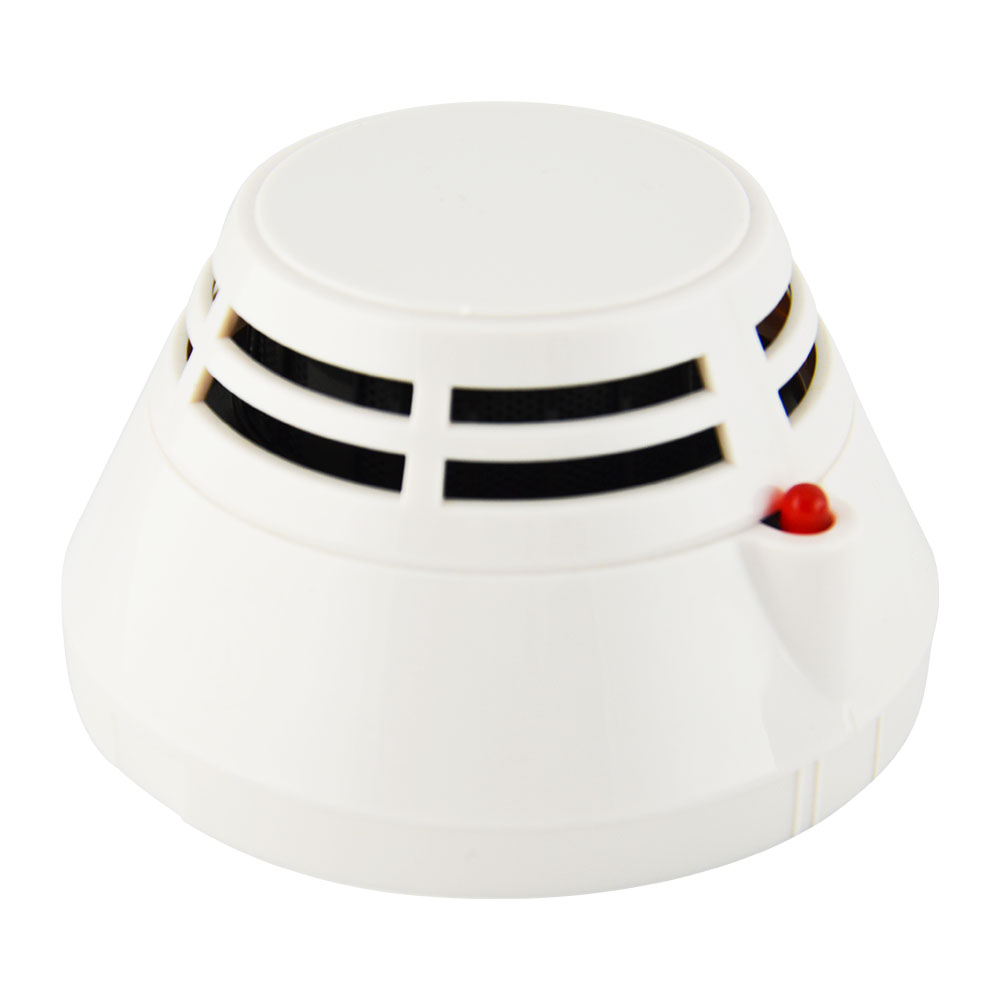

1. The Information of Intelligent 2 Wire Addressable Photoelectric Smoke Detector for Fire Alarm System for Fublic Buildings 24V :
-------Addressable smoke detector is a kind of photoelectric smoke detector. With an internal microprocessor.
it supports electronic coding and is accessed through a compatible fire alarm control panel via a two-wire bus.
-------The detector realizes real-time acquisition of the in situ smoke concentration data
And sends back the data to a fire alarm control panel.
-------It can also receive and execute the control commands given by a fire alarm control panel. Executive standard
2. The Technical Parameters of Intelligent 2 Wire Addressable Photoelectric Smoke Detector for Fire Alarm System for Fublic Buildings 24V :
| Executive standard | GB4715-2005 |
| Operating voltage | 24V (pulse modulation) |
| Operating current | < 300uA (monitoring status) or < 1.5mA (alarm status) |
| Work indication | The red indicator will blink in the monitoring status or remain lit in the alarm status |
| Weight | about 70g |
| External dimensions diameter | 100mm |
| height | 55mm (with the base) |
| Wiring method | non-polarity two-bus system (L1, L2) |
| Operating environment | Indoor, temperature: -10°C~+55°C; relative humidity: ≤95% (40°C±2°C, without condensation) |
| Coding mode | It can realize electronic coding via coder in situ. Address codes 1 to 324 are available for selection. |
| Installation | height: ≤12m |
| Protection area | about 60m2. |
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
