- Place of Origin:
- Guangdong, China
- Brand Name:
- Asenware
- Model Number:
- AW-AFP2188
- Usage:
- Fire
- Feature:
- addressable fire alarm control panel
- Fit for:
- smoke detector,heat detector
- Sample oder:
- offered
- Working voltage:
- AC 220V±20%
- MOQ:
- 1pcs
- Warranty:
- 1 year
- Circuit bus:
- two-wire system
- Capacity:
- 100 point,200 point,324point
- Certification:
- CE LPCB ISO9001
- Payment:
- TT,Western Union
- Supply Ability:
- 500 Piece/Pieces per Month
- Packaging Details
- opp packed or as customized for Fire Alarm Panel
- Port
- Shenzhen Port

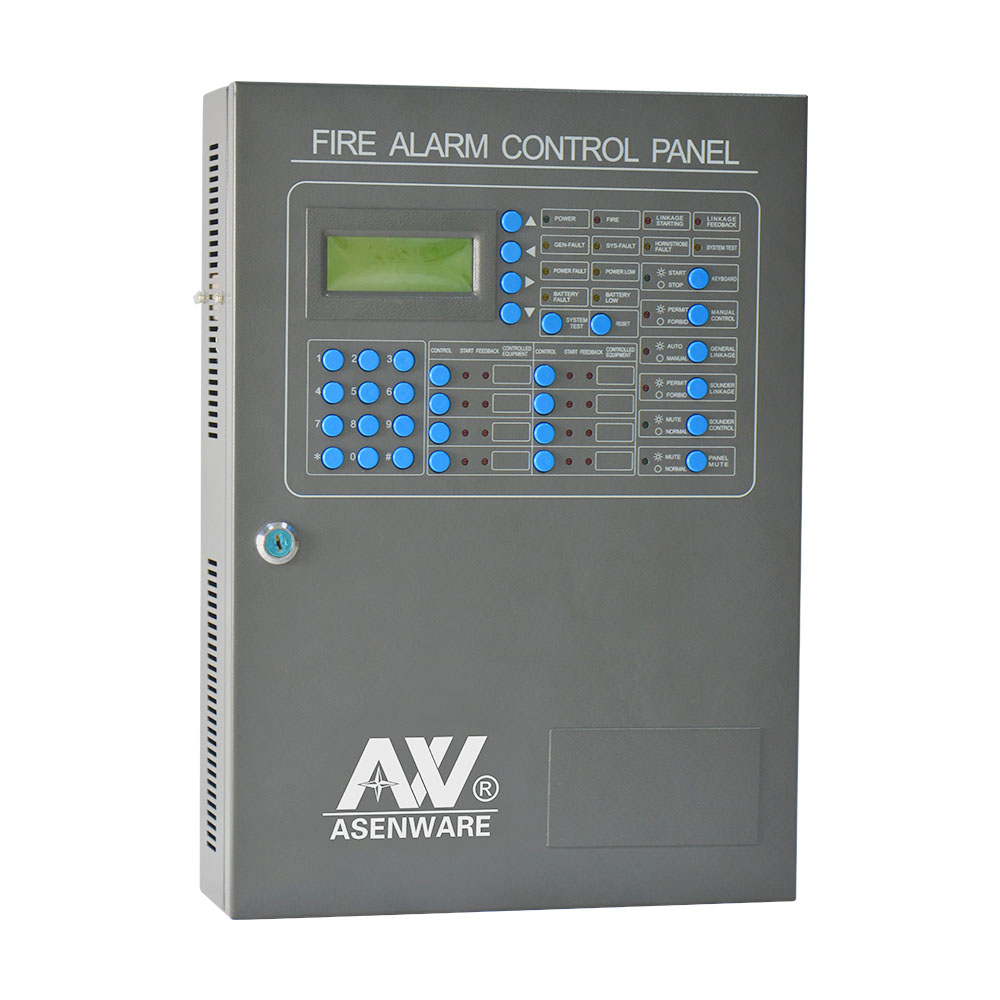

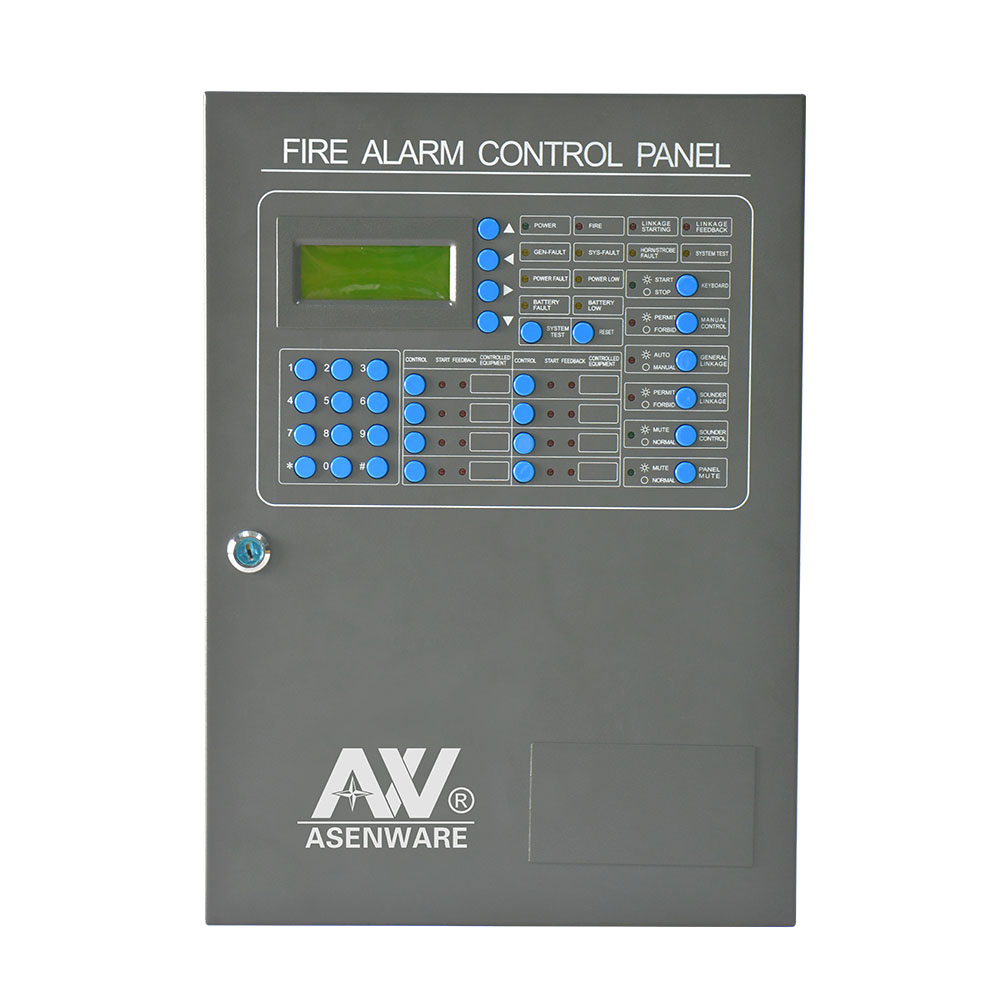

Market Fire Alarm System with 220v AV
Introductions:
The addressable fire alarm control panel is a dual wire analog bus system, it can replace the conventional fire alarm control system to save 50% or more cables.
Each detector, module, manual call point, horn, strobe ,hydrant has its own independent address, the fireman or the guard can find the exact fire alarm address instead of a wide area in conventional system.
The JB-QBL-2100 series addressable fire alarm control panel is an advanced, perfect and reliable system, it has been used in many countries.
2-wire intelligent fire alarm control panel is compatible with listed intelligent detector, intelligent module , intelligent call point, intelligent horn/strobe etc
Characters:
32-bit MCU
2-wire communication between detector/module
Each detector sensitivity adjustable
Field-programmable with PS/2 standard PC keypad and mouse
7.4" LCD back-lit display
Windows menu and interface
Chinese or English interface and panel display
CF card duplicate or reset system setup file and history file to facilitate maintenance
Communicate with PC via USB
Single point start/stop of module (Menu operation)
Single point test of detector/module
Zone, building or floor display
CRT visually display the location of fire and trouble
Eleven users each with a password and selectable access levels
Field software upgrade
20 JB-QBL-2100 peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module
Flexible collocation by modularized combination
Standards that apply
GB 4717-93 "General Technical Conditions for Fire Alarm Control Units"
GB 16806-1997"General Technical Conditions of control for Fire Protection Equipment"
CE certification
Parameters:
Capacity:
Each I/O-board has two loops, with 198 alarm/control points of each loop(Max. control points-99), the capacity of each I/O-board: 2x198=396(points);
Each JB-QBL-2100 can connect maximum 3 I/O-boards, the capacity of each JB-QBL-2100: 3 x 396 = 1188(points). Over 1188 points, the wall mounted panel turn to cabinet panel, eahc cabinet panel can connect maximum 40 I/O-boards: 40*396=15840(points).
Peer-to-peer with max. 20 JB-QBL-2100, system capacity: 20 x 15840 = 316800 (points).
Multi-line Integrated Control/Monitoring capacity: Each JB-QBL-2100 wall mounted panel can have maximum 4000 points.
Bus integrated control capacity: Each JB-QBL-2100 wall mounted panel can have maximum 4000 points.
Maximum simultaneous alarm of each host:
Fire alarm: 500
Trouble: 500
Feedback: 500
Operating Environment:
Temperature: -10 degree to +55 degree
Relative Humidity: less than 95% (40 degree, non-condensing)
AC Power: 220VAC, 50Hz, 3A
DC Power: 24VDC, 7.0Ah
CE certification
