Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company).
We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.

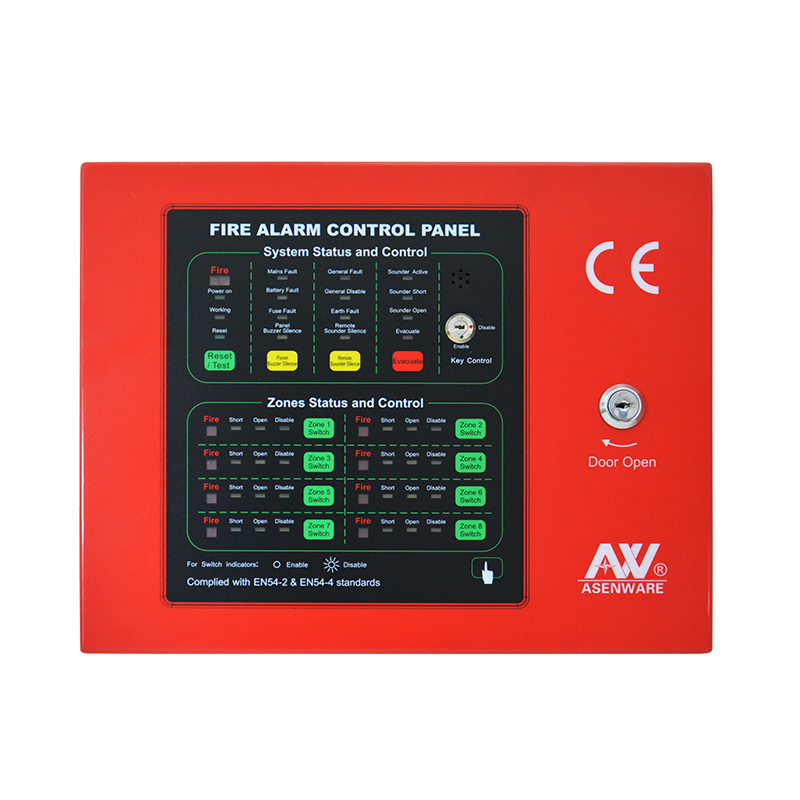

1). 2-8 Zone Fire Alarm Conventional Control Panel Brief Introduction:
1.AW-CFP2166 series conventional fire alarm panel is designed based on EN54
part 2&4 standard.
2.It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3.It has 2 level control mode by a lock
4.It has 24VDC and 5VDC power supply output.
5.It has FIRE and FAULT signal output.
6.It has 2 general sounders output.
7.Each zone has 1 circuit detectors input .
8.Each zone can be disable by a button.
2).The main parameters of 2-8 Zone Fire Alarm Conventional Control Panel :
| Name | Conventional Fire Alarm Panel | |
Model NO | AW-CFP2166- 02 | AW-CFP2166- 04-8 |
Total output current limited | 500mA @ 240VAC | 3A @ 240VAC |
Number of circuit | 2 | 4-16 |
Mains supply voltage | 110VAC or 240VAC | 110VAC or 240VAC |
Internal power supply | 27.2VDC | 27.2VDC |
Dimensions(mm) | 320*231*90mm | 395*502*124mm |
Weight (without batteries) | 5kg | 7kg |
Weight (with batteries) | 6.8kg | 9.6kg |
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
