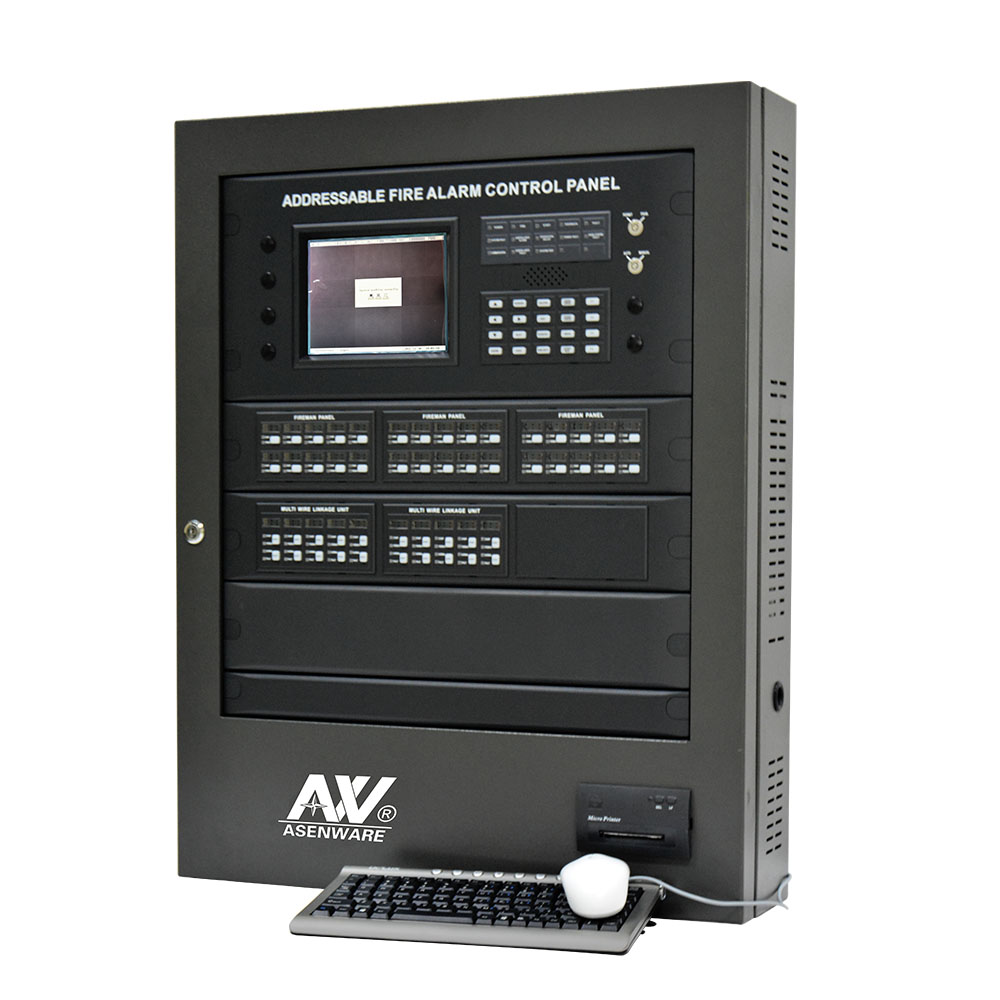

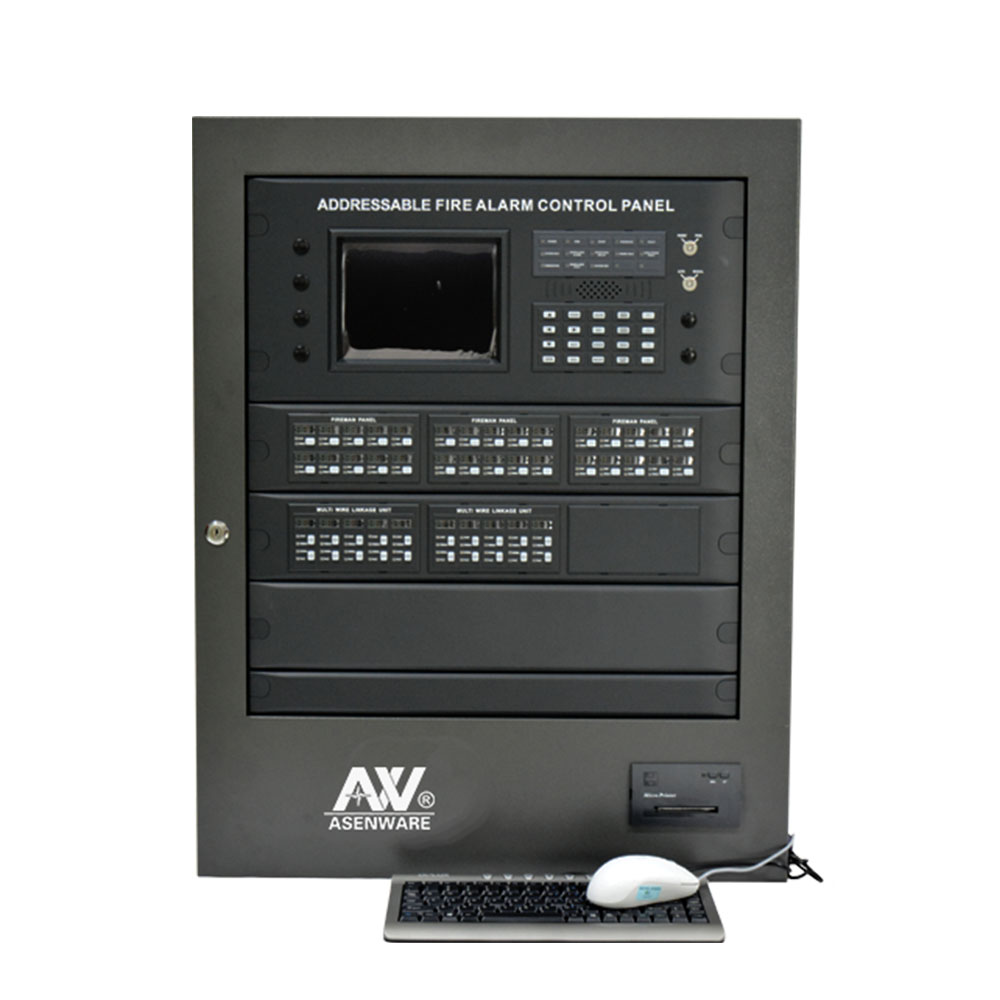

AW-AFP2100 Asenware Addressable Fire Alarm Control Panel for big project
Introduction:
The addressable fire alarm control panel adopts the nonpolarity analog 2-wire addressable loop intelligent alarm linkage mode,it can replace the conventional fire alarm control system to save 50% or more cables. All intelligent devices are connected in the loop system,they get power and receive data from panel or transmit data to panel via both loop sides. When 2-wires were cut off somewhere suddenly,they can work normally via the remaining other loop side.(Remark:also have the non-polarity analog 2-wire addressable radial pattern circuit(non-loop) intelligent alarm linkage mode).
Each detector, module, manual call point, horn, strobe ,hydrant has its own independent address, the fireman or the guard can find the exact fire alarm address instead of a wide area in conventional system.
The AW-AFP2100 series addressable fire alarm control panel is an advanced, perfect and reliable system, it has been used in many countries.
1.32-bit MCU, Support communication with PC via USB
2. 2-wire communication between detector/module
3. Each detector sensitivity adjustable
4. Field-programmable with PS/2 standard PC keypad and mouse
5.7.4" LCD back-lit display
6. Windows menu and interface
7. Chinese or English interface and panel display
8. CF card duplicate or reset system setup file and history file to facilitate maintenance
9. Communicate with PC via USB
10. Single point start/stop of module (Menu operation)
11. Single point test of detector/module
12. Zone, building or floor display
13. CRT visually display the location of fire and trouble
14. Eleven users each with a password and selectable access levels
15. Field software upgrade
16. 20 pcs AW-AFP2100 peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module
17. Flexible collocation by modularized combination
| Temperature | -10℃~+55℃, |
| Relative humidity | ≤95% (40 ℃, non-condensing) |
| AC power | 220VAC, 50Hz, 3A; |
| DC power | 24VDC, 7.0Ah |
| Overall power consumption | <3W |
| Maximum simultaneous alarm of each host | Fire alarm: 500, Trouble: 500, Feedback: 500 |
