New Fire Alarm System Addressable Panel with 648 Point For Building
Any question,contact sales skype Asenware.sales09
Specification of adressable fire cotrol panel AW-AFP2100
32-bit MCU
2-wire communication between detector/module
Each detector sensitivity adjustable
Field-programmable with PS/2 standard PC keypad and mouse
7.4" LCD back-lit display
Windows menu and interface
Chinese or English interface and panel display
CF card duplicate or reset system setup file and history file to facilitate maintenance
Communicate with PC via USB
Single point start/stop of module (Menu operation)
Single point test of detector/module
Zone, building or floor display
CRT visually display the location of fire and trouble
Eleven users each with a password and selectable access levels
Field software upgrade
20 JB-QBL-2100 peer-to-peer, long-distance optical fiber transmission network via CAN communication transform module
Flexible collocation by modularized combination
Standards that apply
GB 4717-93 "General Technical Conditions for Fire Alarm Control Units"
GB 16806-1997"General Technical Conditions of control for Fire Protection Equipment"
CE certification
Capacity of addressable fire control panel AW-AFP2100
Each I/O-board has two loops, with 198 alarm/control points of each loop(Max. control points-99), the capacity of each I/O-board: 2x198=396(points);
Each JB-QBL-2100 can connect maximum 3 I/O-boards, the capacity of each JB-QBL-2100: 3 x 396 = 1188(points). Over 1188 points, the wall mounted panel turn to cabinet panel, eahc cabinet panel can connect maximum 40 I/O-boards: 40*396=15840(points).
Peer-to-peer with max. 20 JB-QBL-2100, system capacity: 20 x 15840 = 316800 (points).
Multi-line Integrated Control/Monitoring capacity: Each JB-QBL-2100 wall mounted panel can have maximum 4000 points.
Bus integrated control capacity: Each JB-QBL-2100 wall mounted panel can have maximum 4000 points.

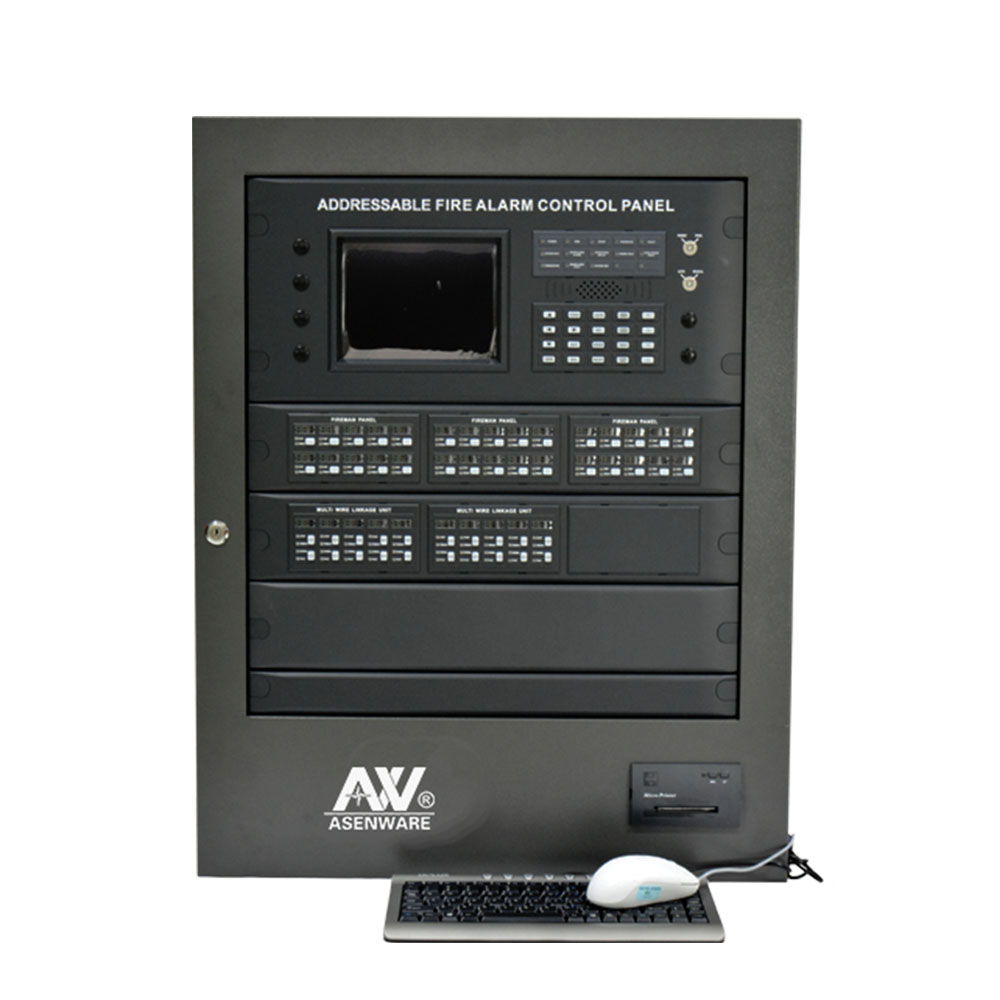

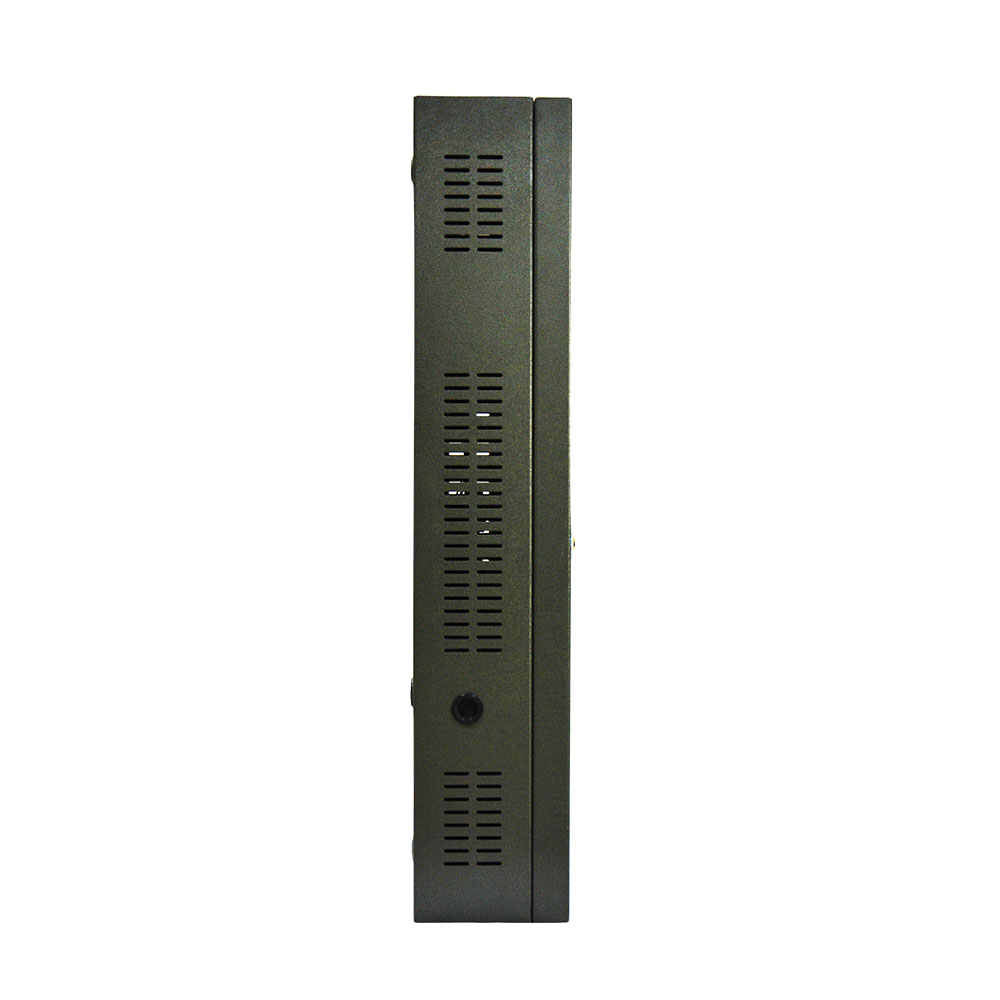

Addressable fire control panel AW-AFP2100 photo and accessories details,
Packaing: regular packing or customized packing
Shipping:DHL,UPS,etc
1.Sample oder is welcomed to test our quality.
2.OEM,ODM service offer
3.1 year warranty and warmly afterservice
4.welcome visit our factory
