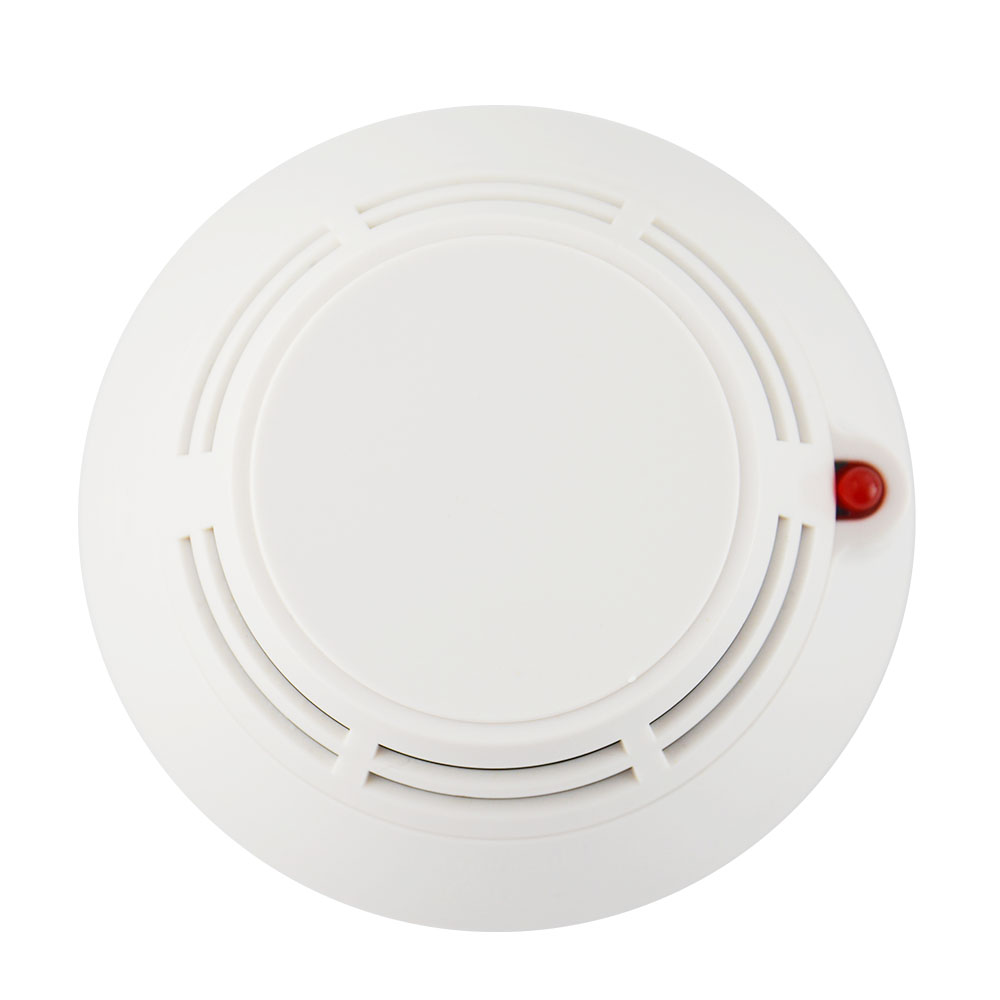

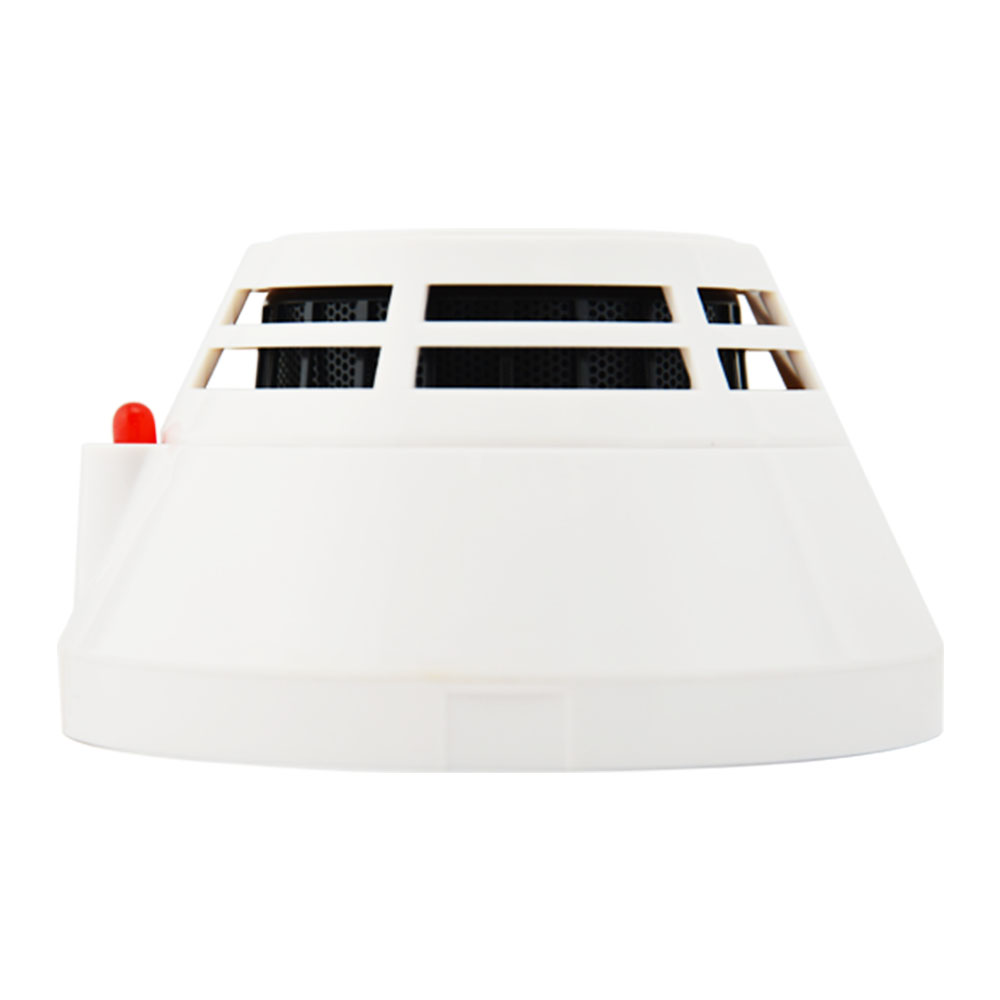

24V addressable smoke detector,wifi smoke detector
Any question,contact sales skype:Asenware.sales09
Smoke Detector Specification
Standby Current | ≤100μA @ 24 VDC |
Maximum Alarm Current | ≤55mA @ 24 VDC |
Operating Humidity Range | 10% to 93% Relative Humidity, Non-condensing |
Operating Temperature Range | 14°F to 120°F (-10°C to 49°C) |
Adjustable Sensitivity | 1-2.5%/FT |
Adressable 2188 system,
Smoke Detector Parameters
conventional smoke detector | ||
Digital Smoke Detector | Executive standard | GB19880-250 |
Operating voltage | 24V (pulse modulation) | |
Operating current | <300µA | |
Weight | 162g | |
Wiring method | nonpolar two-bus system | |
Operating enviroment | Indoor | |
temperature | -10°C~+50°C | |
Relative humidity | ≤95% | |
Main working process,
Fire Alarm System
Matched host machine: fire alarm control panel (such as AW-AFP2188)
Smoke Detector Alarm Photo Details,
Related conventional detectors,
Packaing: regular packing or customized packing
Shipping:DHL,UPS,etc
1.Sample oder is welcomed to order our smoke detector and other fire alarm system.
2.OEM,ODM service offer
3.1 year warranty and warmly afterservice
4.welcome visit our factory
