2014 fire alarm solution for hotel addressable fire alarm panel control detector with panel AW-AFP2188
Any question,contact sales skype Asenware.sales09
Feature of fire alarm solution AW-AFP2188
1. Fire alarm control panel uses an AC-DC master-standby power supply system which will automatically change between the master and standby power supplies in the event of a power failure of either of the two power supplies to ensure uninterrupted operation of the system.
2. The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing.
The AW-AFP2188 can be connected to floor fire display panels to display fire alarms by standard RS-485
3. The AW-AFP2188 fire alarm control panel can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment.
4.The AW-AFP2188 addressable control panel fire alarm can hold 100 point,200point,324point with three type for differ requirments.
Specification of addressable fire alarm solution AW-AFP2188
| Temperature | -10°C~+50°C |
| Humidity | ≤95% |
| Power supply | AC 220V 50HZ DC 24V 6A |
| Output contact capacity | AC 220V 1A DC 27.6V 3A |
DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
AC input voltage | AC 220V±20% 50Hz |
| AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |

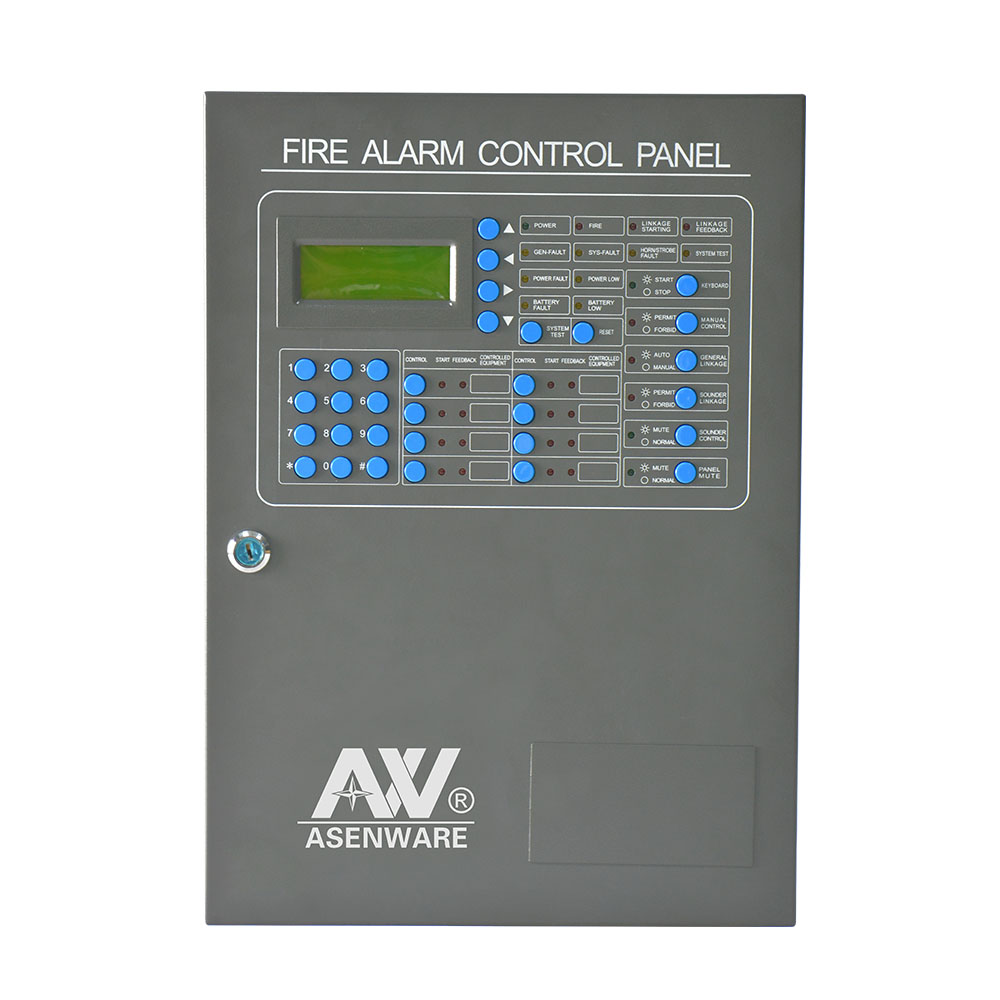

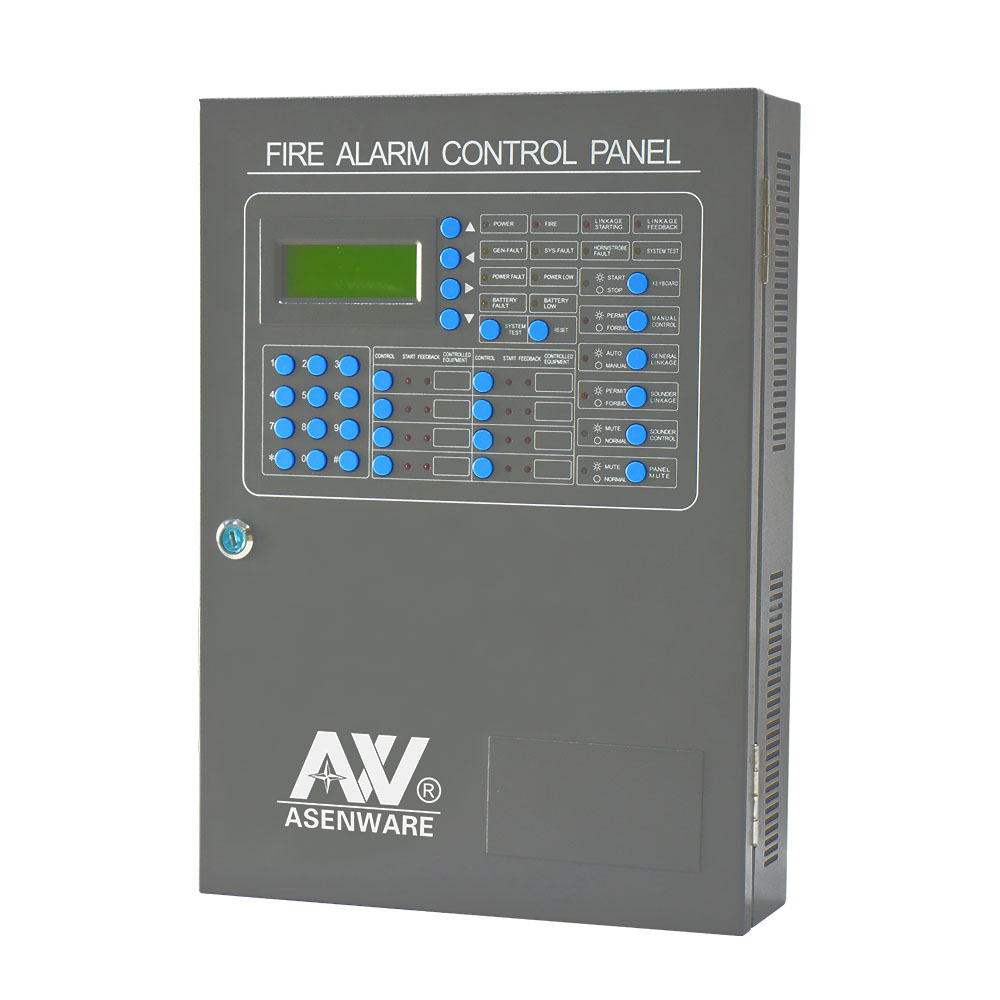

Addressable AW-AFP2188 photo and accessories details,
Packaing: regular packing or customized packing
Shipping:DHL,UPS,etc
Certification
1.Sample oder is welcomed to test our quality.
2.OEM,ODM service offer
3.1 year warranty and warmly afterservice
4.welcome visit our factory
Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2006,our headquarters is in London .
We have an experienced R&D team to design special electric product for test and control usage.
We have been striving to provide customers with satifying service before, during and after sales.
Payment terms :T/T L/C Western union .
Delievry time :usually about 3 to 5 days .Bulk order will last ship out in three weeks .
Certificate :CE LPCB ISO9001
Technical support :yes
