Home > Products > 2-Wire Bus System 32 zone Conventional Fire Alarm Control Panel AW-CFP2166-32
2-Wire Bus System 32 zone Conventional Fire Alarm Control Panel AW-CFP2166-32
Click on the image to view the original image
Product： views：22-Wire Bus System 32 zone Conventional Fire Alarm Control Panel AW-CFP2166-32
Branch： ASENWARE
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:32
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
ASENWARE
Model Number:
AW-CFP2166-32
Sounder output:
2 circuits
Zones:
32
Wiring Method::
Two-wire bus System
Fire relay output:
NC and NO
Installation::
Wall mounted
Battery:
12V2AH*2
Power supply:
110VAC/240VAC
loop:
2
Package::
Standard safety export package / carton (Box + Foam) or as customized
Certificate::
CE SGS ISO9001
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export packing including:
1) PP Bag
2) Cartons
3) Pallets or plywood case for sea shipping
Port
Shenzhen


Product Description

Coventional Fire Alarm Panel Brief Introduction:

1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2. It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3. It has 2 level control mode by a lock
4. It has 27VDC power supply output.
5. It has FIRE PROTECTION, FIRE ROUTING and FAULT signal output, the output can be configured to dry relay type or wet sources type.
6. It has 2 channel general sounders output.
7. Each zone has 1 circuit detectors input .
8. Each zone can be disable by a button.
9. It has RESET button to reset the panel.
10. It has SILENCE button to stop BUZZER and SOUNDERS.
11. It has EVACUATE button to start a manual fire alarm immediately.
12. It has TEST button to test all LEDs orderly.
13. It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
14. It has an optional GSM module for fire alarm by SMS .
15. It is economic, user-friendly and easy maintenance.

Company Information

Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company).

We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.

A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.

Packaging & Shipping

Wiring Diagram:

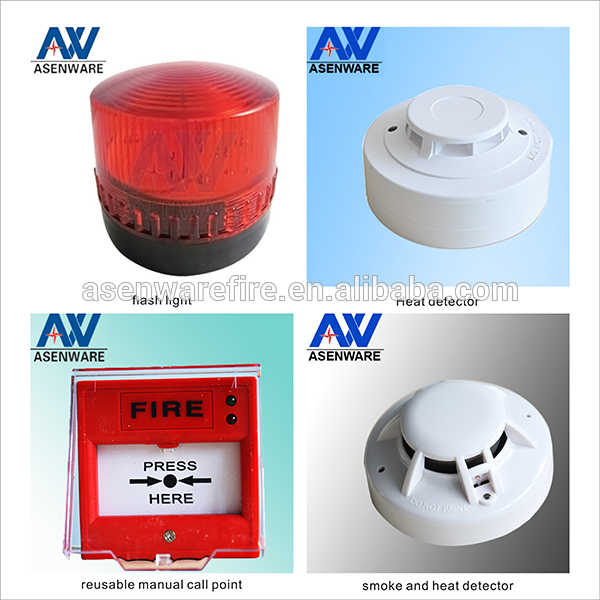

Conventional Optional Accessories:

Exhibition hall:

Certificates:

Wide Application:

Our Services

1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.

2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.

FAQ

1. All-round technical support: Yes

2. Warranty: One year

3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE  ISO9001
5. Payment terms: T/T, L/C, Western union, Money Gram.
