Shenzhen Asenware Test And Control Technology Co., Ltd, a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company), was set up in 2006, the headquarter lies in London of UK. Now it has grown into an international group company in BMS and NDT industries.
The company has two wholly-owned factories: one is in Shenzhen city for BMS products, and the other lies in Dandong city for NDT X-ray products.
A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.

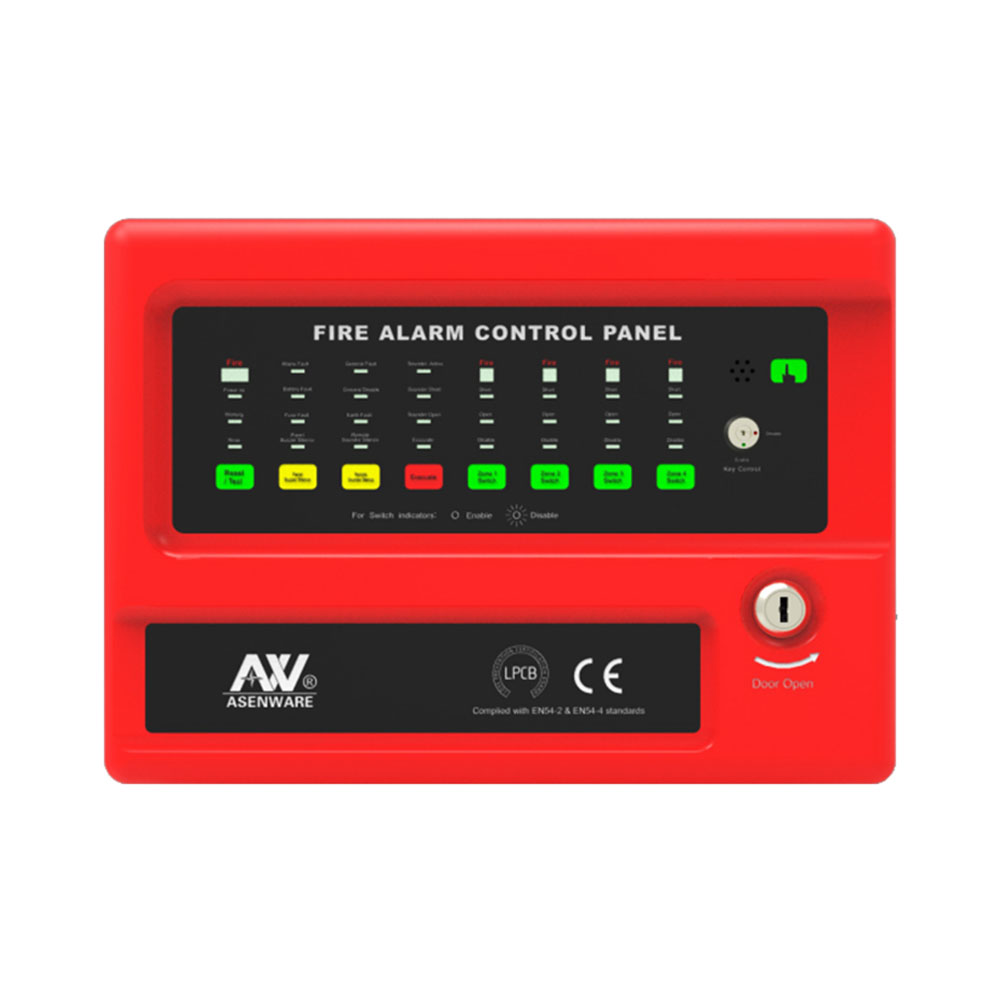

1).Two Zones Conventional Fire Alarm Control Panel Brief Introduction:
1.AW-CFP2166 series conventional fire alarm panel is designed based on EN54
part 2&4 standard.
2.It is modularized design, the panel can expend from 1 zone to 32 zones easily.
3.It has 2 level control mode by a lock
4.It has 24VDC and 5VDC power supply output.
5.It has FIRE and FAULT signal output.
6.It has 2 general sounders output.
7.Each zone has 1 circuit detectors input .
8.Each zone can be disable by a button.
9.It has RESET button to reset the panel.
10. It has SILENCE button to stop BUZZER and SOUNDERS.
11.It has EVACUATE button to start a manual fire alarm immediately.
12.It has battery low protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
13.It has an optional GSM module for fire alarm by SMS .
14.It is economic, user-friendly and easy maintenance.
2). The main parameters of Two Zones Conventional Fire Alarm Control Panel as follow:
| Model NO. | AW-CFP2166-02 |
| Number of circuit | 2 |
| Total output current limited | 500mA @ 240VAC |
| Mains supply voltage | 110VAC or 240VAC |
| Internal power supply | 27.2VDC |
Dimensions(mm) | 320*231*90mm |
| Weight (without batteries) | 5kg |
| Weight (with batteries) | 6.8kg |
1. Pre-sales: Professional and experienced R&D center can offer free technical support and project budget.
2. Sales: All-around and all-weather online prompt reply as well as standard quotation.
3. After-sales: one year warranty and technical maintenance.
1. All-round technical support: Yes
2. Warranty: One year
3. Delivery time: Usually about 2 to 5 days.
4. Certificate: CE LPCB ISO9001
5. Payment terms: T/T,L/C,Western union,Money Gram.
