- Place of Origin:
- Guangdong, China
- Brand Name:
- Asenware
- Model Number:
- AFP-2188
- item:
- Addressable Fire Alarm System Controller for Emergency Alarm
- Voltage:
- AC220V/50HZ,AC110V
- OEM,ODM:
- Yes
- Model:
- Addressable
- addresses number:
- 100/200/324points
- Display Screen:
- LCD
- Leadtime::
- 5-10days
- Shipping:
- sea, air,express
- Certificate:
- CE SGS ISO9001
- Agent Wanted:
- Yes
- Supply Ability:
- 100000 Set/Sets per Month
- Packaging Details
- standard carton
- Port
- shenzhen

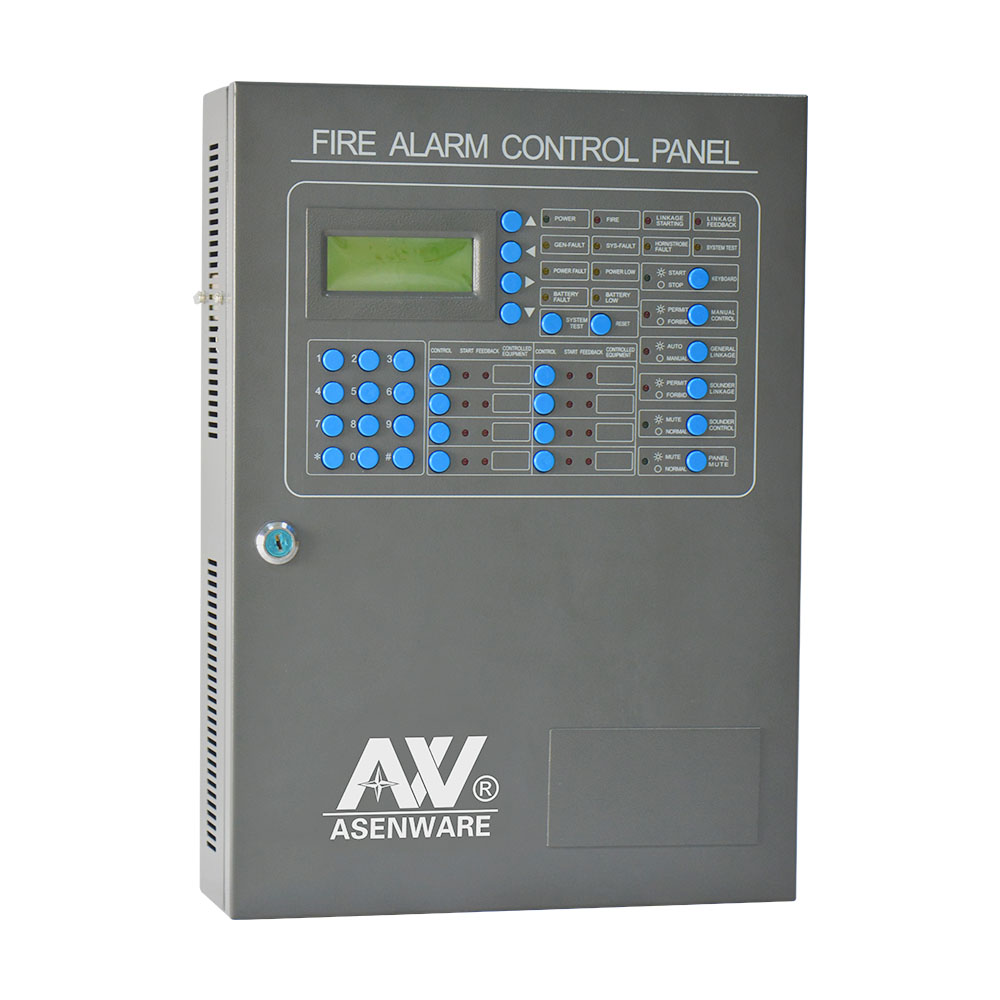

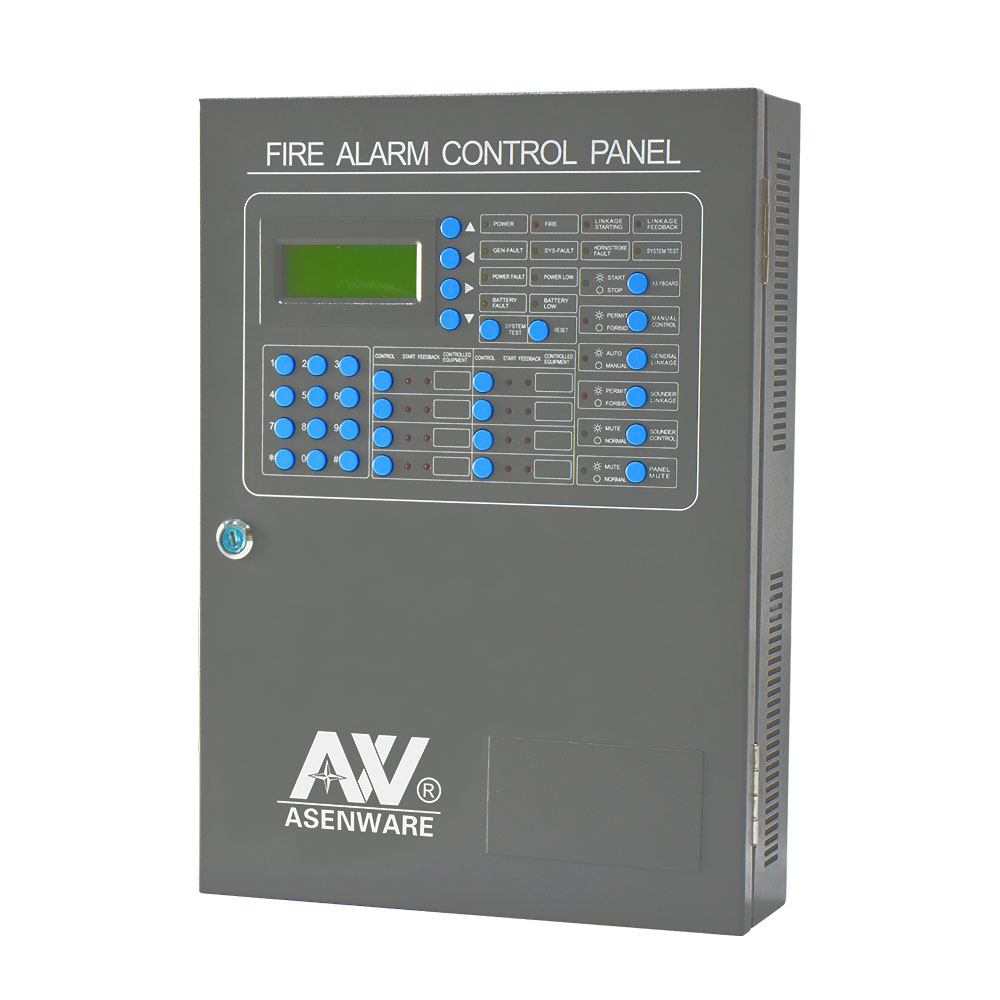

Addressable Fire Alarm System Controller for Emergency Alarm
The AW-AFP2188 fire alarm detection system is type of analog fire alarm control panel which has 324 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
1. Fire alarm control panel uses an AC-DC master-standby power supply system which will automatically change between the master and standby power supplies in the event of a power failure of either of the two power supplies to ensure uninterrupted operation of the system.
2. The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing. The AW-AFP2188 can be connected to floor fire display panels to display fire alarms by standard RS-485
3. The AW-AFP2188 fire alarm control panel can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment.
| Temperature | -10°C~+50°C |
| Humidity | ≤95% |
| Power supply | AC 220V 50HZ DC 24V 6A |
| Output contact capacity | AC 220V 1A DC 27.6V 3A |
| DC power | DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series |
| AC input voltage | AC 220V±20% 50Hz |
| AW-AFP2188 system capacity | 100/200/324 points (non-polarity, two wire bus, fully mixed coding) |
