Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- Asenware
- Model Number:
- AFP-2188
- Warranty:
- 12months
- Color:
- Yes
- OEM:
- Yes
- ODM:
- Yes
- Presales:
- Full technique support
- After-sales:
- Send Engineer for testing & Installation
- Leadtime::
- ASAP
- Best Offer::
- Negotiable
- Certificate:
- LPCB
- Agent Willingness:
- Negotiable
- Supply Ability:
- 100000 Set/Sets per Month
- Packaging Details
- Styrofoam surrounded Double corrugated case outside
- Port
- shenzhen

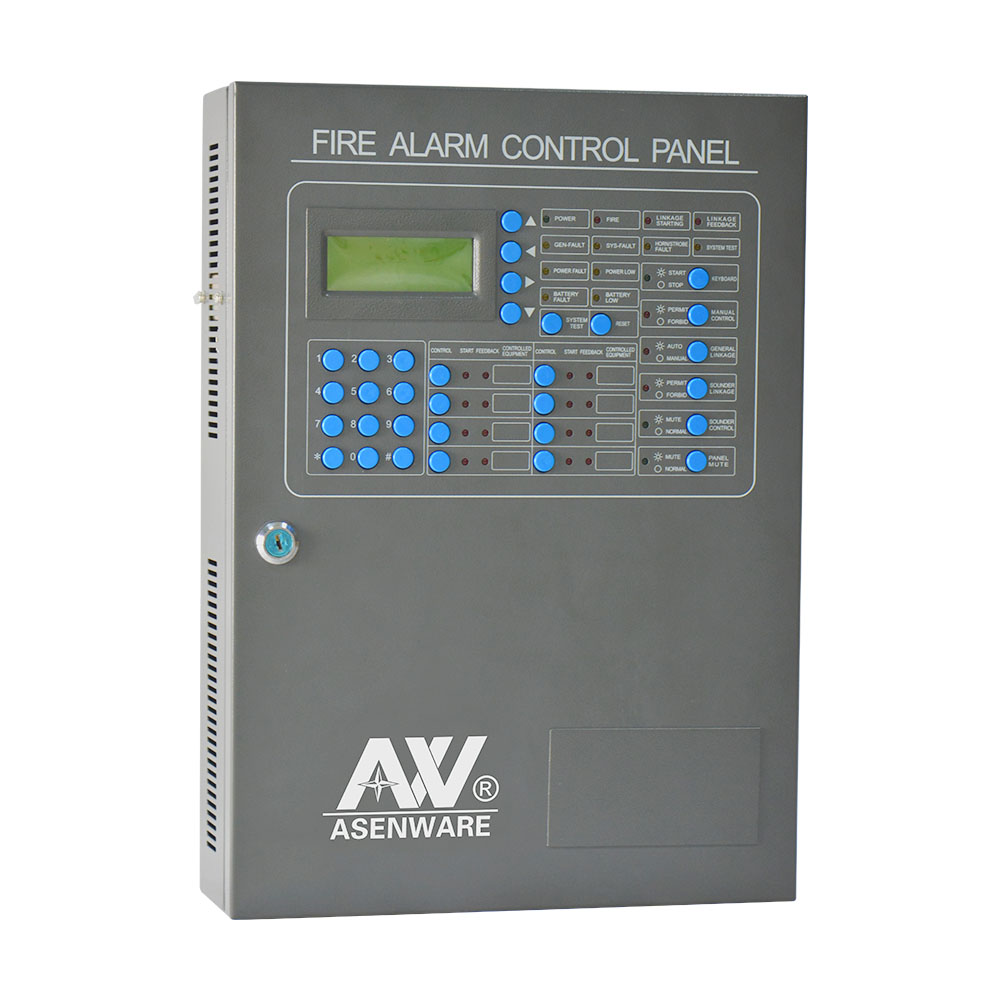

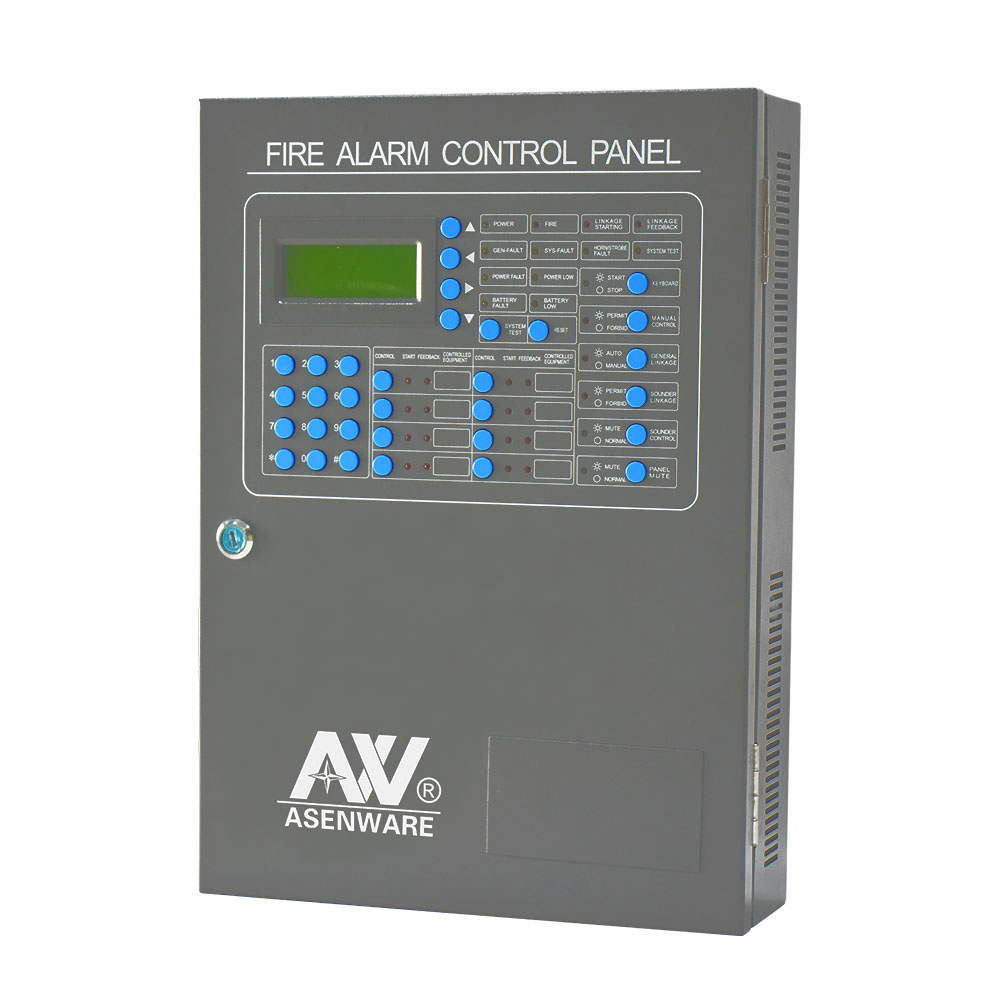

Addressable Fire Alarm Panel 324 Addresses AW-AFP2188-324
Addressable Fire Alarm Control System
Features:
The AW-AFP2188 is a new type of analog fire alarm control panel which has 324 alarm control points (detectors and modules which are characterized by fully mixed coding, non-polarity and two buses). It complies with the provisions of both Fire Alarm Control Units (GB4717-2005) and Automatic Control System for Fire Protection (GB16806-2006).
Its characteristics are as follows:
l The intelligent detectors and the intelligent modules have internal microprocessors to realize digital filtering and auto-compensation functions; the data collection is true and reliable; the AW-AFP2188 control panel can carry out data processing based on fuzzy control theory and modern fire alarm theory to fundamentally avoid missing alarms and to reduce false alarms, so as to improve reliability.
l The detectors have a sensitivity setup function and can adjust the alarm sensitivity according to the specific environment and their influences.
l The detecting bus and the control bus share a two-wire structure and have non-polarity and fully mixed coding of the detectors and modules, and the intelligent detectors and the intelligent modules can be directly connected to them, which greatly simplifies the system wiring, engineering installation and circuit maintenance.
l The system uses an AC-DC master-standby power supply system which will automatically change between the master and standby power supplies in the event of a power failure of either of the two power supplies to ensure uninterrupted operation of the system.
l The AW-AFP2188 can be connected to a special mini-printer to realize real-time printing.
l The AW-AFP2188 can be connected to floor fire display panels to display fire alarms by standard RS-485
l The AW-AFP2188 can be connected to ten multi-line linkage control/monitoring points to control and monitor important equipment.
l The AW-AFP2188 is equipped with eight bus manual control points, which makes it very easy for the user to control related equipment.
Parameters:
l Capacity
AW-AFP2188 system capacity: 324 points (non-polarity, two wire bus, fully mixed coding)
l AC input voltage: AC 220V±20% 50Hz
AC input power: 120W
l DC power: DC24V 5.0Ah, two fully sealed maintenance-free DC12V 5.0Ah storage batteries connected in series
The 24V DC power has a long-term constant output current of 6A.
The 5V DC power has a long-term constant output current of 4A.
l Circuit bus: two-wire system; total length: ≤1500m
l Voltage UL of the circuit bus:
+20V≤UL≤+26V(when the DC power is operating)
+24V≤UL≤+26V(when the AC power is operating)
l System working conditions
1. Temperature: -10°C~+50°C
2. Humidity: ≤95%
3. Power supply: AC 220V 50HZ
DC 24V 6A
4. Output contact capacity: AC 220V 1A
DC 27.6V 3A
See the specifications of detectors and modules for the specific technical parameters of the detectors, the interface module, the monitoring module and the control module.
Order information:
1 AW-AFP2188-100: 100 addresses panel
2 AW-AFP2188-200: 200 addresses panel
3 AW-AFP2188-324: 324 addresses panel
1.Pre-sales:we have R&D center which can offer free technical support and project budget.
2.Sales:24 hour on line prompt reply,norm quotation
3.After-sales:1 year warranty,technical maintance
